3-6 <3. Name of Each Part/Starting and Shutting Down the Equipment >
IM 80J01A01-01E

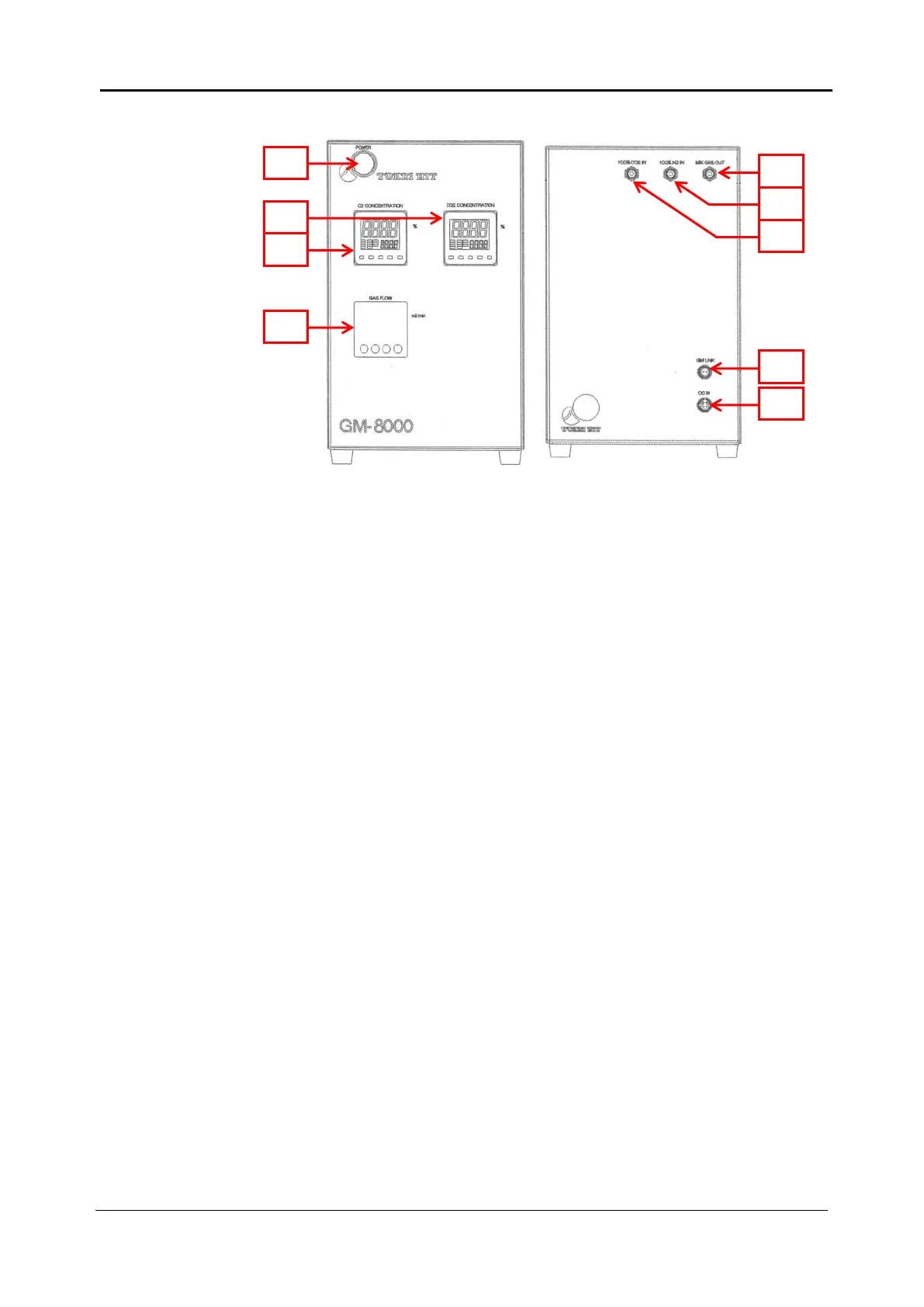

Gas Mixer (Option)
(1) Power Switch
Switch ON to power on Gas Mixer
Switch OFF to power off Gas Mixer
(2) CO
2
Concentration
Controller to set CO
2
Concentration of output mixture gas
(3) O
2
Concentration
Controller to set O
2
Concentration of output mixture gas
(4) Gas Flow
Controller to set flow rate of output mixture gas
(5) 100 % CO
2
IN
Port to connect the tube from CO
2
gas cylinder via the regulator
(6) 100 % N
2
IN
Port to connect the tube from N
2
gas cylinder via the regulator
(7) Mix Gas OUT
Port to connect the tube to CQ1 Main Unit
(8) GM LINK
Not in use
(9) DC IN
Port to connect cable of attached AC adapter
To Next Page
