YOKOGAWA GX20 User Manual

1-129
IM 04L51B01-01EN
Configuring the GX/GP and Viewing the Settings
1
2
3
4
5
App
Index
Explanation
DisplayDataandEventData
There are two file types: display data and event data.
Display data can be likened to the conventional recording on the chart sheet and are useful
for long-term recording.
In the case of display data, the GX/GP records the maximum and minimum values from the
measured values within each recording interval (Instantaneous data in each scan interval).
Event data is useful when you wish to record the measured data in detail.
In the case of event data, the GX/GP records the measured values at every recording
interval (Instantaneous data in each scan interval).

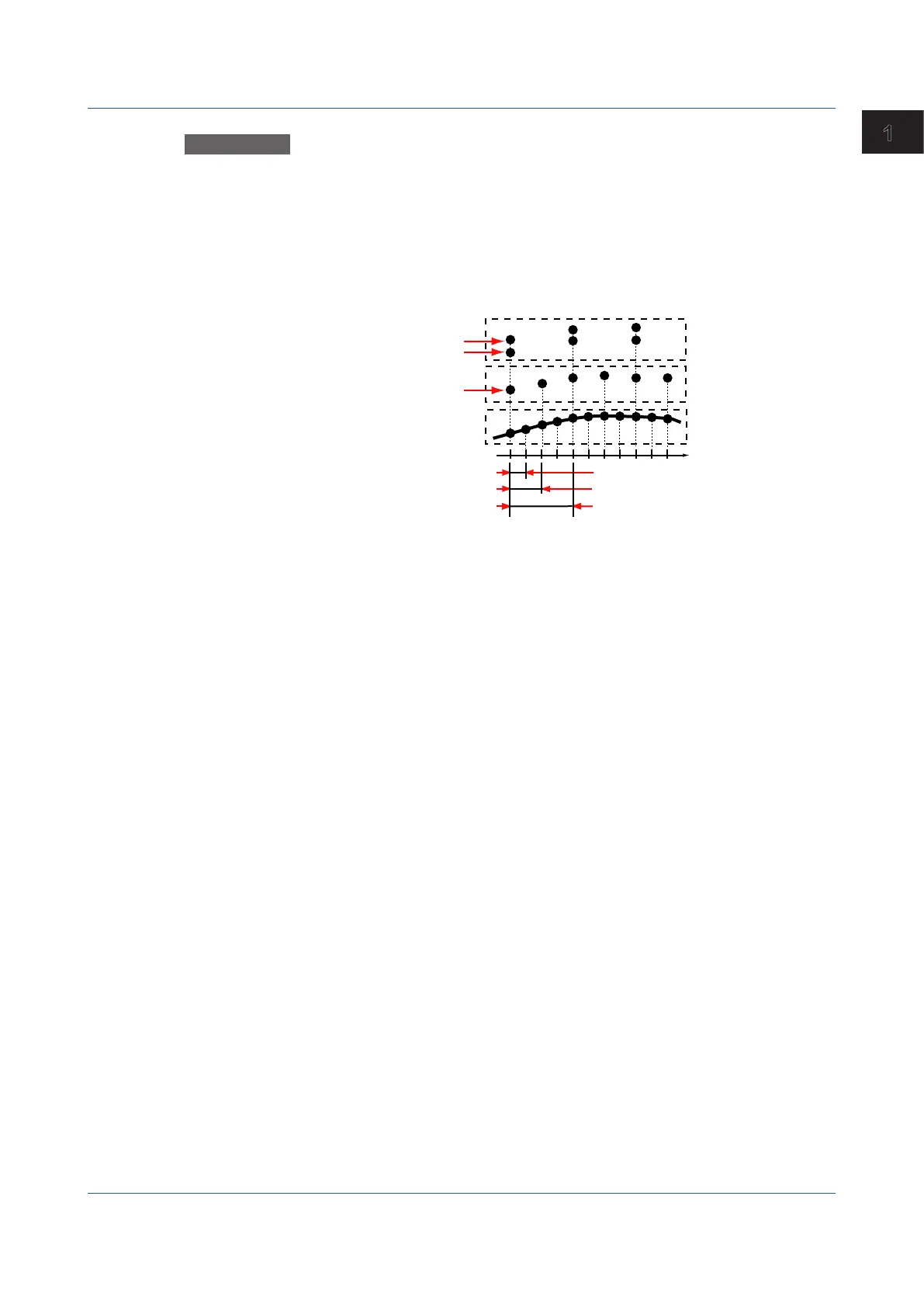

Measured data per
scan interval
Display data
Event data
Recording interval of display data
Scan interval
Time
Recording interval of event data
Maximum value per recording interval
Minimum value per recording interval
Instantaneous value during recording
Refer to the examples below, and record data that suits your purpose.
Example 1: Continuously record the waveform data as with the conventional chart recorder.
Record the display data.
Setup items
File type: Display data
Example 2: Record waveform data under normal conditions but record details around the
point of alarm occurrence when alarms occur.
Continuously record display data and record event data when alarms occur.
Setup items
File type: Display + Event data
Recording mode: Single or Repeat
Example 3: Record the most-detailed data at all times.
Record event data by specifying the recording interval.
Setup items
File type: Event data
Recording mode: Free
Example 4: No need to continuously record data. Record data only when alarms occur.
Record event data only when alarms occur.
Setup items
File type: Event data
Recording mode: Single or Repeat
1.12SettingRecordingConditions(Recordingmode,recordinginterval,savinginterval)
