Configuring the GX/GP and Viewing the Settings
1
2
3
4
5
App
Index
Setting Screen
Displaying the Setting Screen

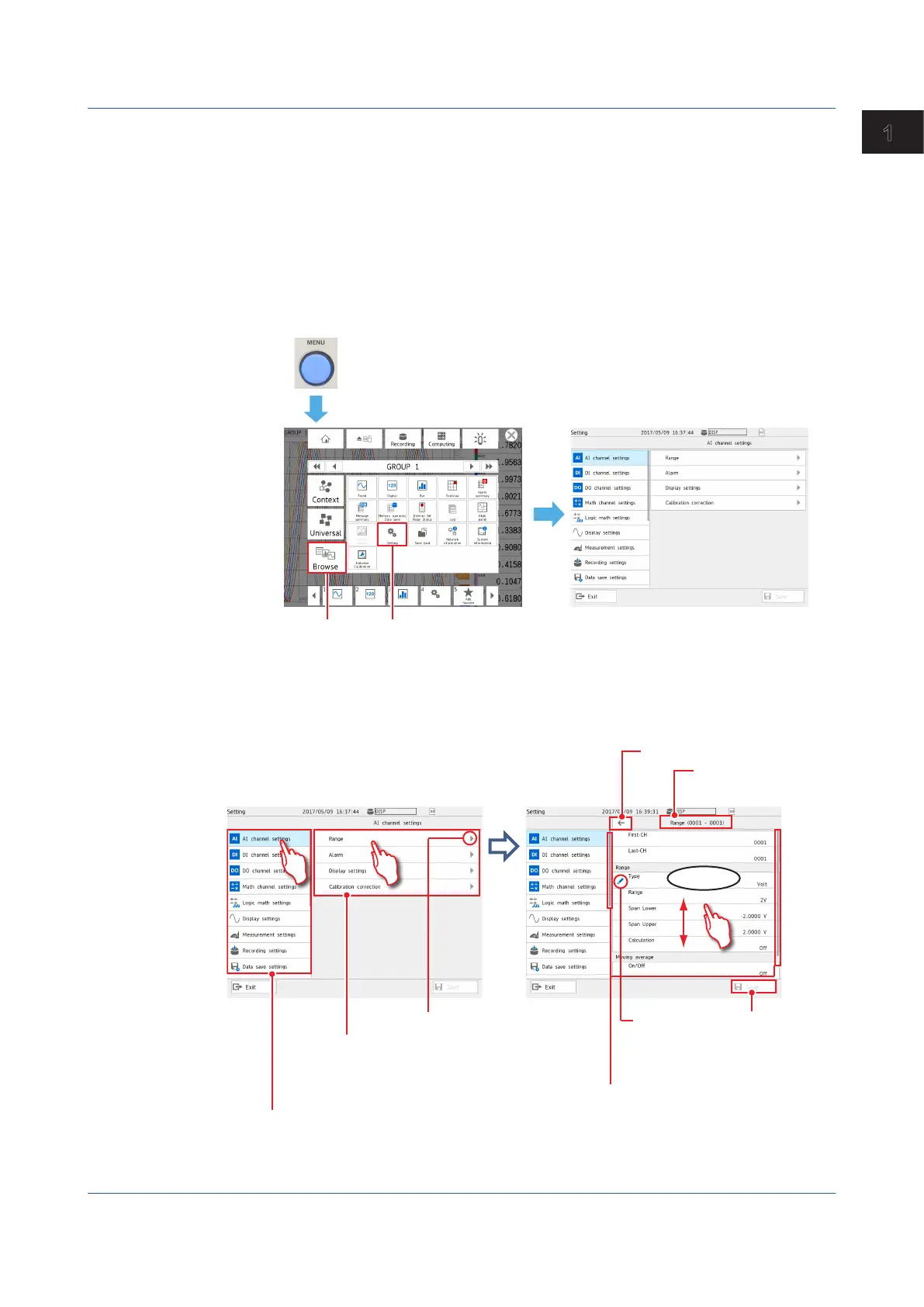

1 Press MENU.
The menu screen appears.
2 Tap the Browse tab.
3 Tap Setting.
The Setting screen appears.
Setting screenMenu screen
MENU key
2
1
3
Basic Setting Screen Operations
When you tap an item on the setting menu shown on the left side of the screen, the
corresponding setup items appear in the area on the right. When a setup item is layered,
tapping the setup item shows the lower layer.
Setup item
Setting menu
Indicates that there
is a lower level.
Returns to the higher level.
Setting screen
Shows the item name
of the current level
Shows the setup items for the item
selected on the setting menu.
When a setup item is layered,
group items are displayed.
A setting menu appears.
Saves the settings
This appears when there are additional setting menus
or setup items outside the screen display.
Flick to show the setting menus and setup items that
are hidden from the screen.
Scroll bar display
Flick
Change mark
Appears on items whose
settings have been changed.
SetupGuide(Readthisfirst)
