xvii
IM 04L51B01-01JA
GX10/GP10

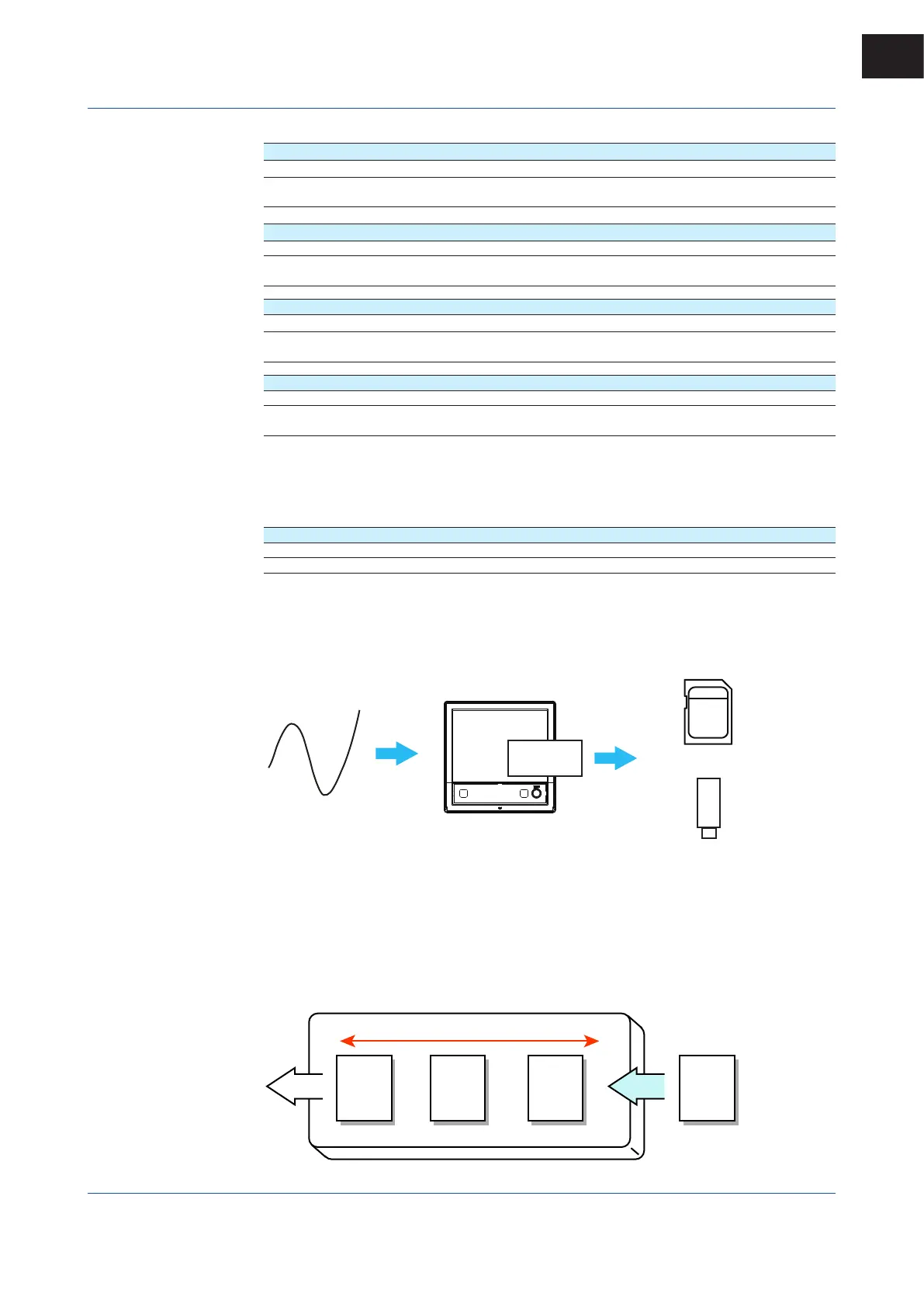

RecordingInterval(Trendinterval) 100ms
2
200ms
2
500ms
2
1s
2
2s
2
3s
3
Time corresponding to one dot (ms) 1 2 5 10 20 50
Speed of waveform movement
(approximation in mm/h)
653400 326700 130680 65340 32670 13068
RecordingInterval(Trendinterval) 5s
1
10s
1
15s 30s 1min
Time corresponding to one dot (s) 0.1 0.2 0.5 1 2
Speed of waveform movement
(approximation in mm/h)
6534 3267 1307 653 327
RecordingInterval(Trendinterval) 2min 5min 10min 15min 20min
Time corresponding to one dot (s) 4 10 20 30 40
Speed of waveform movement
(approximation in mm/h)
163 65 33 22 16
RecordingInterval(Trendinterval) 30min 1h 2h 4h 10h
Time corresponding to one dot (s) 60 120 240 480 1200
Speed of waveform movement
(approximation in mm/h)
11 5.4 2.7 1.4 0.5
1 50 dots per division
2 100 dots per division
3 60 dots per division
Related Setup Items
Item Reference
Trend interval [/div] (display data) →page 1-110
Recording interval (event data) →page 1-125
Saving
Data files that are divided at a specific time interval (saving interval) and held in the internal
memory are automatically saved to an SD memory card (when auto save is set to On). Data
files can also be exported to USB flash memory.
GX/GP
SD memory card
USB flash memory
Auto save or
manual save
manual save
Internal
memory
Media FIFO Function
If not enough free space is available when saving a new data file to the SD memory card,
files are deleted in order from the oldest data update date/time to save the new file. This
operation is referred to as FIFO (first in first out).
When saving the data files automatically, you can save the data so that the most recent data
files are constantly retained in the SD memory card. This method allows you to use the GX/
GP continuously without having to replace the SD memory card.
File 1 File 2
File 3
File 4
Deleted Saved
Update date
Medium
Old New
Basic Functions of the GX/GP
To Next Page
