1-128
IM 04L51B01-01EN
Data length
Set the size of recording data per file. Recording data is divided at the specified file size.
The selectable data lengths vary depending on the number of channels to record and the
Recording Interval setting.
A file is also created in the following instances.
• When a file is created manually
• When recording is stopped
• When file creation is executed with the event action function
• After recovering from a power failure
Recording Interval
1
1ms 2ms 5ms 10ms 20ms
Selectable range of data length 2 min to 10
min
2 min to 20
min
2 min to 1
hour
5 min to 2
hours
5 min to 4
hours
Recording Interval
1
50ms 100 ms 200 ms 500 ms 1 s
Selectable range of data length 10 min to 8
hours
10 min to
1 days
10 min to
2 days
10 min to
3 days
10 min to
7 days
Recording Interval
1
2 s 5 s 10 s 15 s 20 s
Selectable range of data length 10 min to
14 days
10 min to
31 days
10 min to
31 days
10 min to
31 days
10 min to
31 days
Recording Interval
1
30 s 1 min 2 min 5 min 10 min
Selectable range of data length 1 hour to
31 days
1 hour to
31 days
1 hour to
31 days
1 hour to
31 days
1 hour to
31 days
Recording Interval
1
15 min 20 min 30 min
Selectable range of data length 1 hour to
31 days
1 hour to
31 days
1 hour to
31 day
1 You cannot choose a recording interval that is shorter than the scan interval.

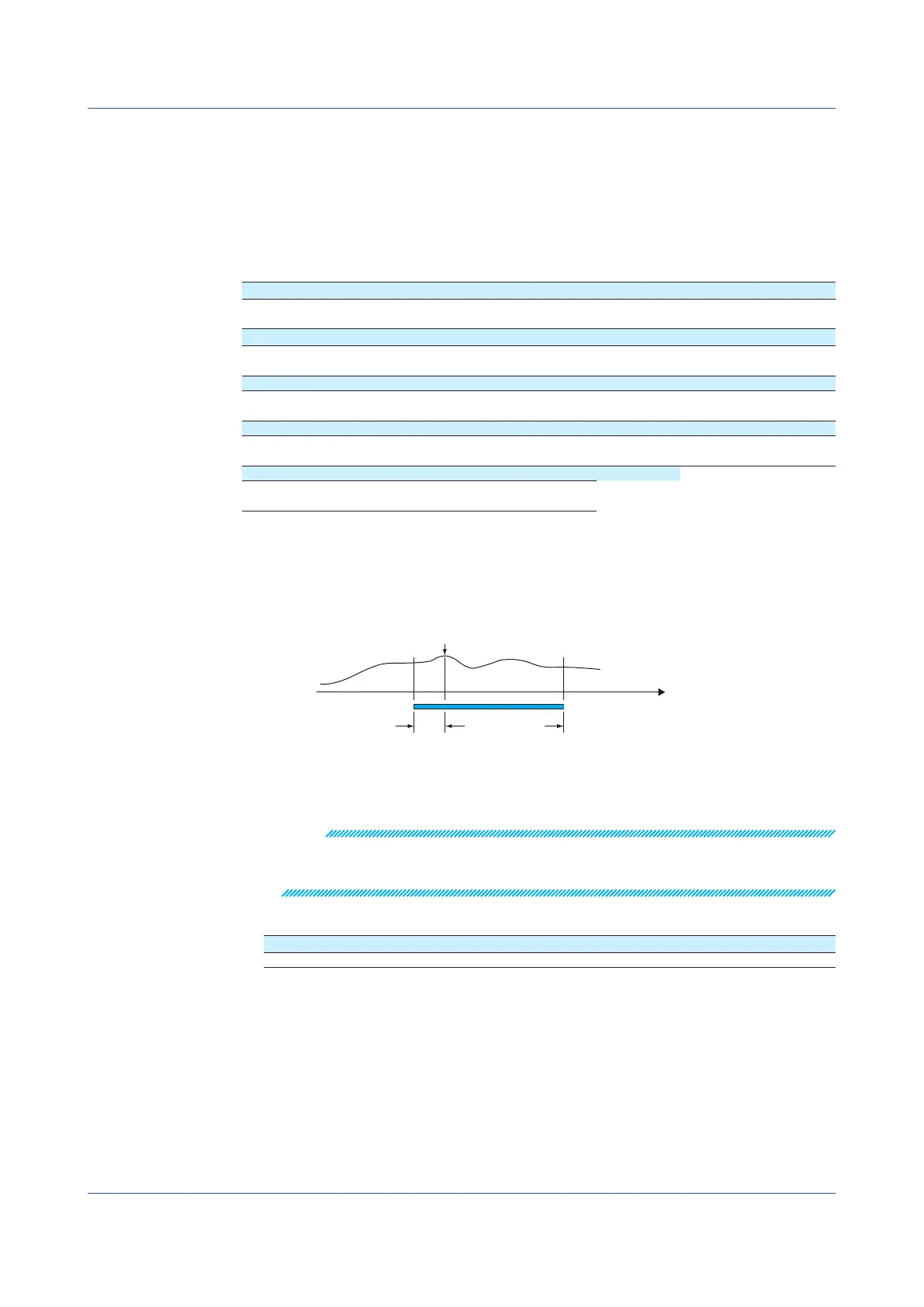

Pre-trigger
Set the range of data to record before the trigger point. Set this value as a percentage of the
data length. If you do not want to record data before the trigger point, set this to 0%.
Pre-trigger enables you to record data before an event, such as an alarm.
Time
Trigger condition met
Data before the trigger
Data after
the trigger
Trigger source operation
In trigger mode, set this to On to apply triggers through touch operation.
Note
• In addition to operating from the screen, the event action function can be used to start
recording.
• When you start recording, recording will start if the trigger condition is met.
RecordConfirmationAction(Releasenumber2andlater)
Setup Item Selectable Range or Options Default Value
Confirmation screen
1
Off, On Off
1 The default value when the multi-batch function (/BT) is set to On is On (fixed).
Confirmation Screen
Set this to On to display a record start or record stop confirmation screen when the START/
STOP key is used.
If you set this to Off, recording starts or stops immediately when the START/STOP key is
used.
1.12SettingRecordingConditions(Recordingmode,recordinginterval,savinginterval)
To Next Page
