YOKOGAWA GX20 User Manual

3-28
IM 04L51B01-01EN
Bar Graph Monitor and Horizontal Bar Graph Monitor
The description of the bar graph or horizontal bar graph that can be displayed in one of the
divided areas is given below.
Bar Graph
The bar graph is shown vertically, and the starting point of bars is as according to the GX/GP
setting.
Horizontal Bar Graph
The bar graph is shown horizontally, and the starting point of bars is as according to the GX/
GP setting.

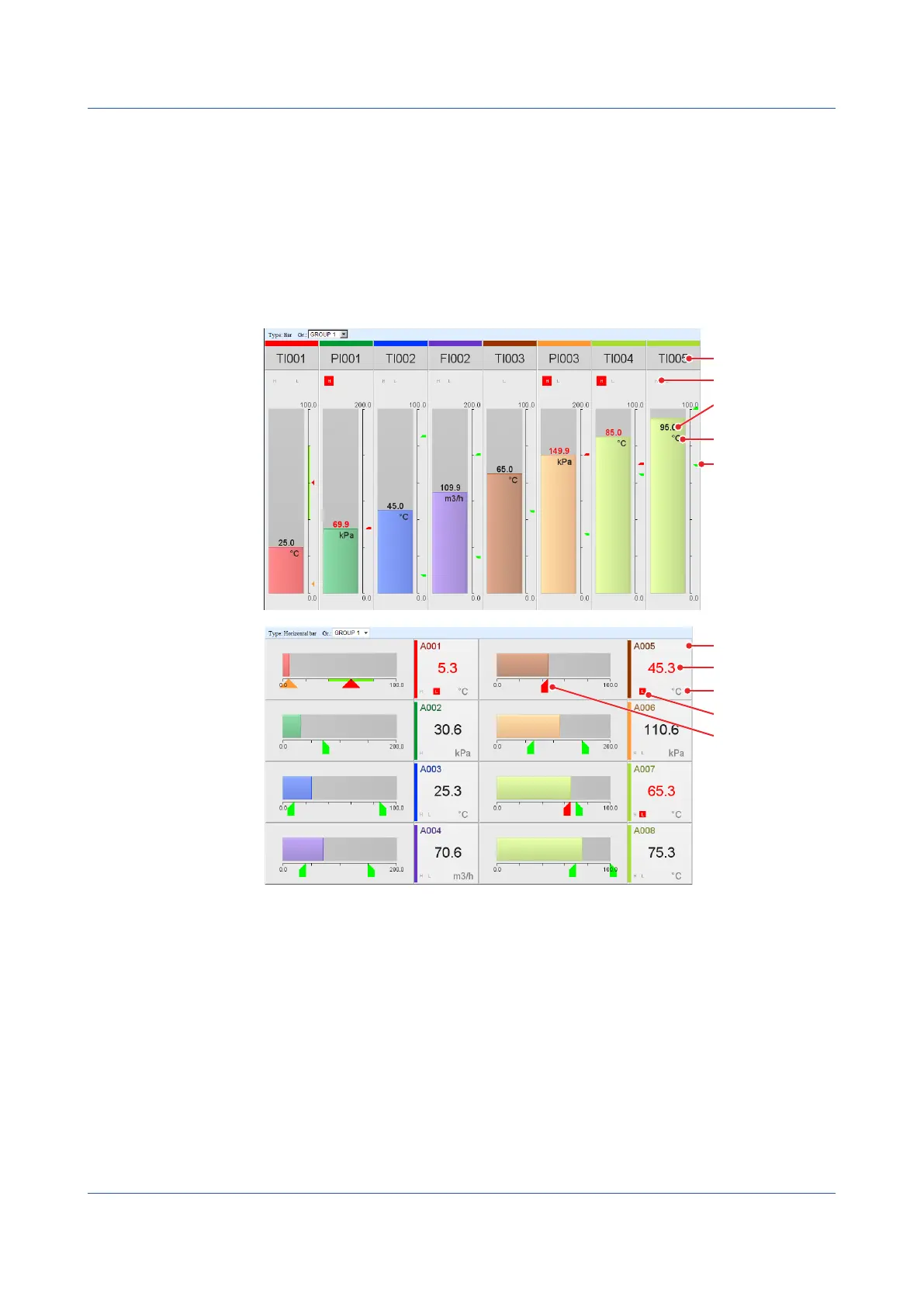

Bar Graph
Horizontal Bar Graph
Unit
Alarm point mark
Alarm mark
Measured value
Tag name
Alarm mark
Alarm point mark
Measured value
Unit
Tag name
Alarm Marks
See “Digital.”
When Information Cannot Be Read
Due to space limitations, channel information may not be displayed. If you place the pointer
in a channel area and leave it there for about 1 second, the channel name, digital value, and
unit will appear in a pop-up window.
ExecutingIndividualAlarmAcknowledges,ChangingAlarmValues,and
ChangingDOOutput(DOsettoManual)
See “Digital” on 3-27.
3.1 Using the Web Application to Change the GX/GP Settings, Monitor Data, and Control the GX/GP (Web server function)
