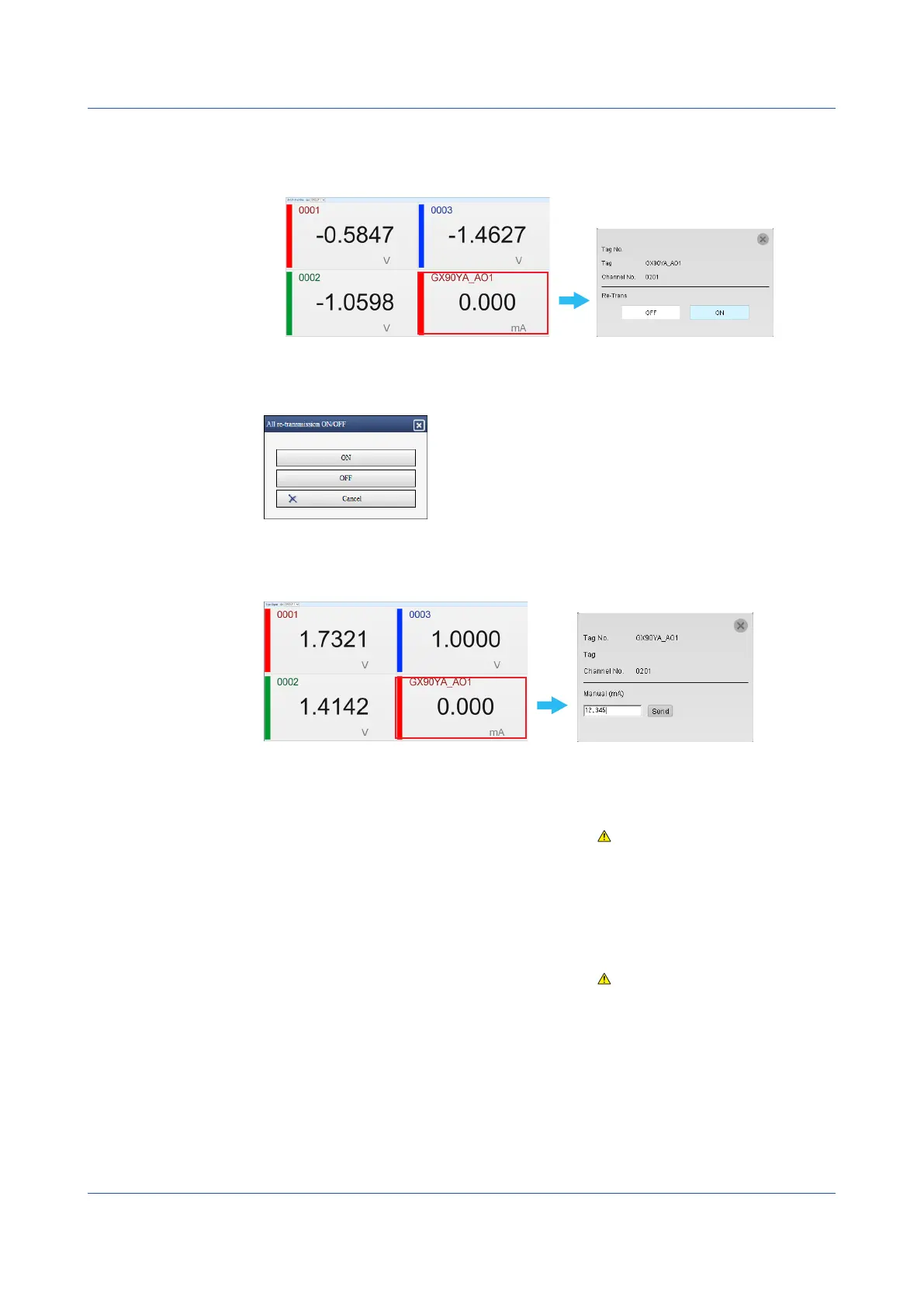

TurningRetransmissionOutputOnandOff(analogoutputmodule)
Click a channel area to display a channel information dialog box of that channel.
You can control the retransmission output from the channel information box.
Collectively Turning the Retransmission Output On and Off
On the Operation tab, select All re-transmission ON/OFF.
Retransmission output can be controlled collectively.
ManualOperationofAnalogOutput(analogoutputmodule)
Click a channel area to display a channel information dialog box of that channel.
You can control the analog output value from the channel information box.
Modbus Client Status
You can display the command operation status of Modbus clients. For details on the
displayed information, see page 2-58 in section 2.3.6, “Checking the Command Status of the
Modbus Client and Modbus Master”.
For details on how to use the command dropout icon ( ) and Refresh button, see section
2.3.6.
The display is updated every 5 seconds.
Modbus Master Status
You can display the command operation status of the Modbus master. For details on the
displayed information, see page 2-58 in section 2.3.6, “Checking the Command Status of the
Modbus Client and Modbus Master”.
For details on how to use the command dropout icon ( ) and Refresh button, see section
2.3.6.
The display is updated every 5 seconds.
