YOKOGAWA GX20 User Manual

4-50
IM 04L51B01-01EN

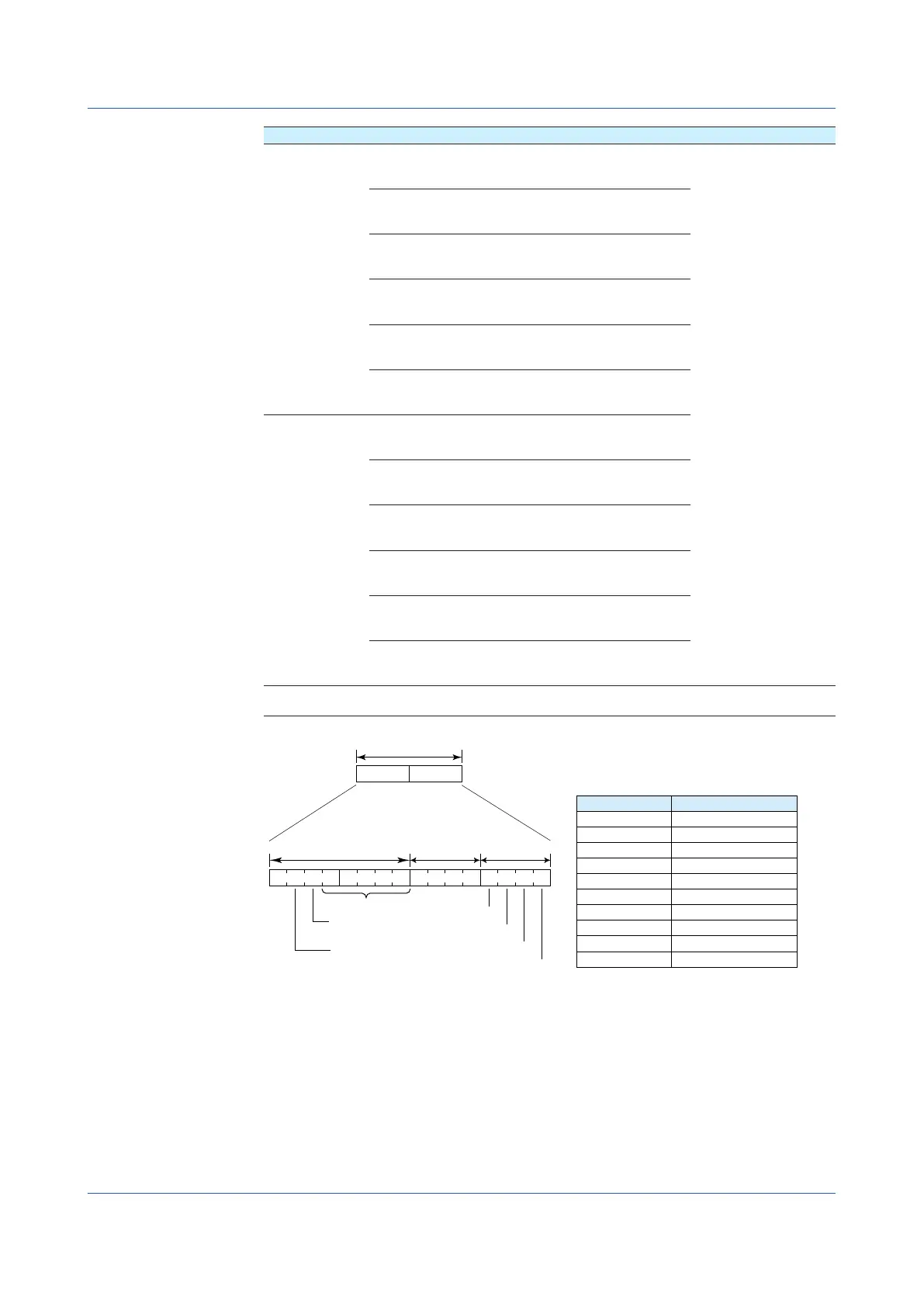

Unit I/O Channel Data Input Register Data Type
Expandable I/O 5 Channel 5001 status information 432501 16-bit signed integer
| |
Channel 5050 status information 432550
Channel 5101 status information 432551
| |
Channel 5150 status information 432600
Channel 5201 status information 432601
| |
Channel 5250 status information 432650
Channel 5301 status information 432651
| |
Channel 5350 status information 432700
Channel 5401 status information 432701
| |
Channel 5450 status information 432750
Channel 5501 status information 432751
| |
Channel 5550 status information 432800
Expandable I/O 6 Channel 6001 status information 437501
| |
Channel 6050 status information 437550
Channel 6101 status information 437551
| |
Channel 6150 status information 437600
Channel 6201 status information 437601
| |
Channel 6250 status information 437650
Channel 6301 status information 437651
| |
Channel 6350 status information 437700
Channel 6401 status information 437701
| |
Channel 6450 status information 437750
Channel 6501 status information 437751
| |
Channel 6550 status information 437800
•
•
There is no decimal place information.
Error code Meaning
0 No error
1 Skip
2 +Over
3 –Over
4 +Burnout
5 –Burnout
6 A/D error
7 Invalid data
16 Computation error
17 Communication error
5 bits 4 bits
Status information
Alarm list
0
Reserved
area
Error code
RJC error
A/D calibration
value error
0 0 0 0
Level 1
Level 2
Level 3
Level 4
2 bytes
Higher
Lower
4.5 Modbus Function and Register Assignments
