Ethernet LED Indicators
There are two LEDs on the USB/Ethernet Module RJ-45 connector. The green LED lights to indicate that the
transfer rate is 100 Mbps. When the LED is not lit the transfer rate is 10 Mbps. The yellow LED blinks to
indicate activity, or stays lit to indicate that a link is established. When it is not lit it indicates that there is no link.

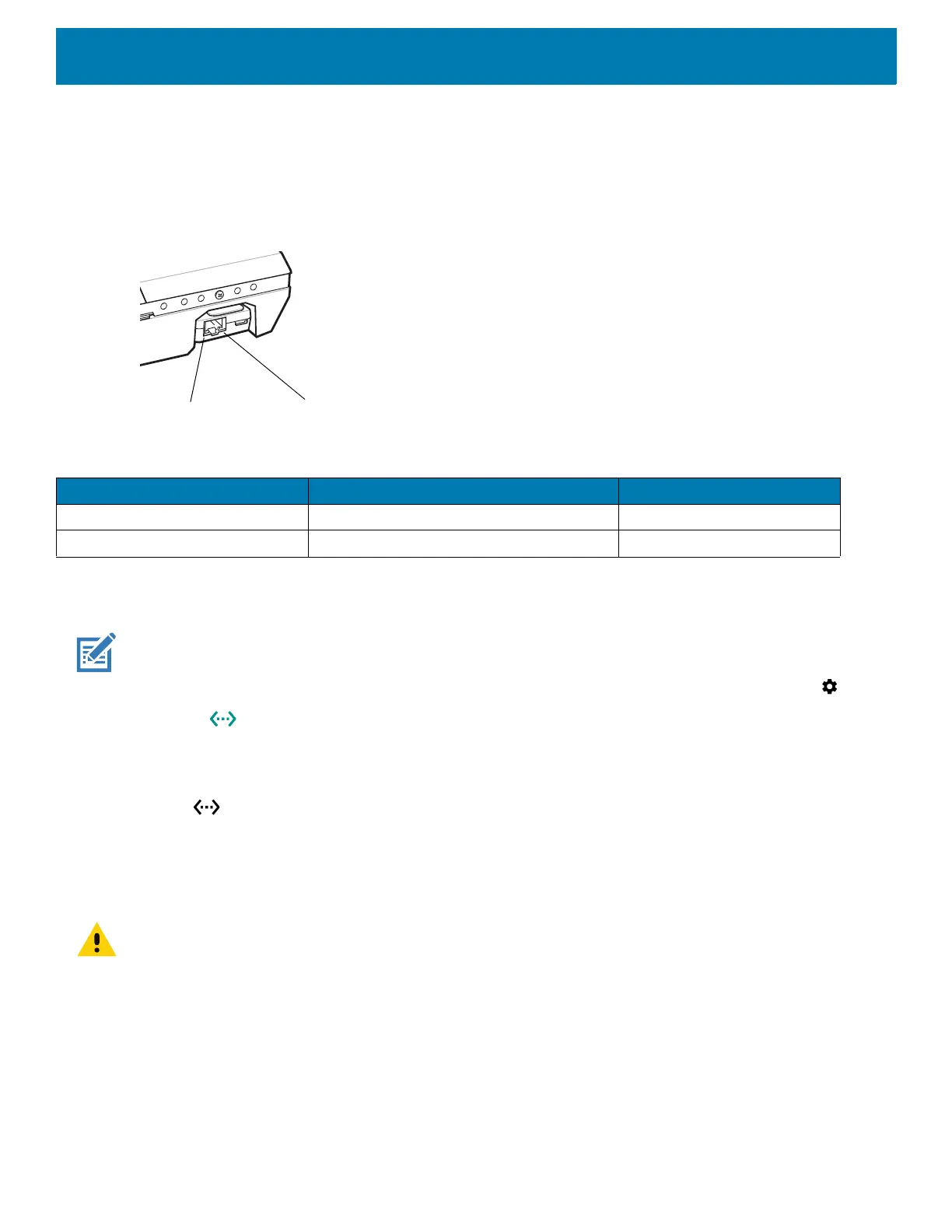

Figure 142 LED Indicators
Establishing Ethernet Connection
NOTE: Refer to the device Integrator Guide for Android Version 8.1 for information on configuring the Ethernet settings.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Ethernet.
3. Slide the Ethernet switch to the ON position.
4. Insert the device into a slot.
The icon appears in the Status bar.
5. Touch Eth0 to view Ethernet connection details.
5-Slot Charge Only Cradle
CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 214.
The 5-Slot Charge Only Cradle:
• Provides 5 VDC power for operating the device.
• Simultaneously charges up to five devices and up to four devices and one 4-Slot Battery Charger using the
Battery Charger Adapter. See the device Integrator Guide for Android Version 8.1 for information on
installing the 4-Slot Battery Charger onto the cradle.
Table 17 USB/Ethernet Module LED Data Rate Indicators
Data Rate Yellow LED Green LED
100 Mbps On/Blink On
10 Mbps On/Blink Off
