Accessories
207

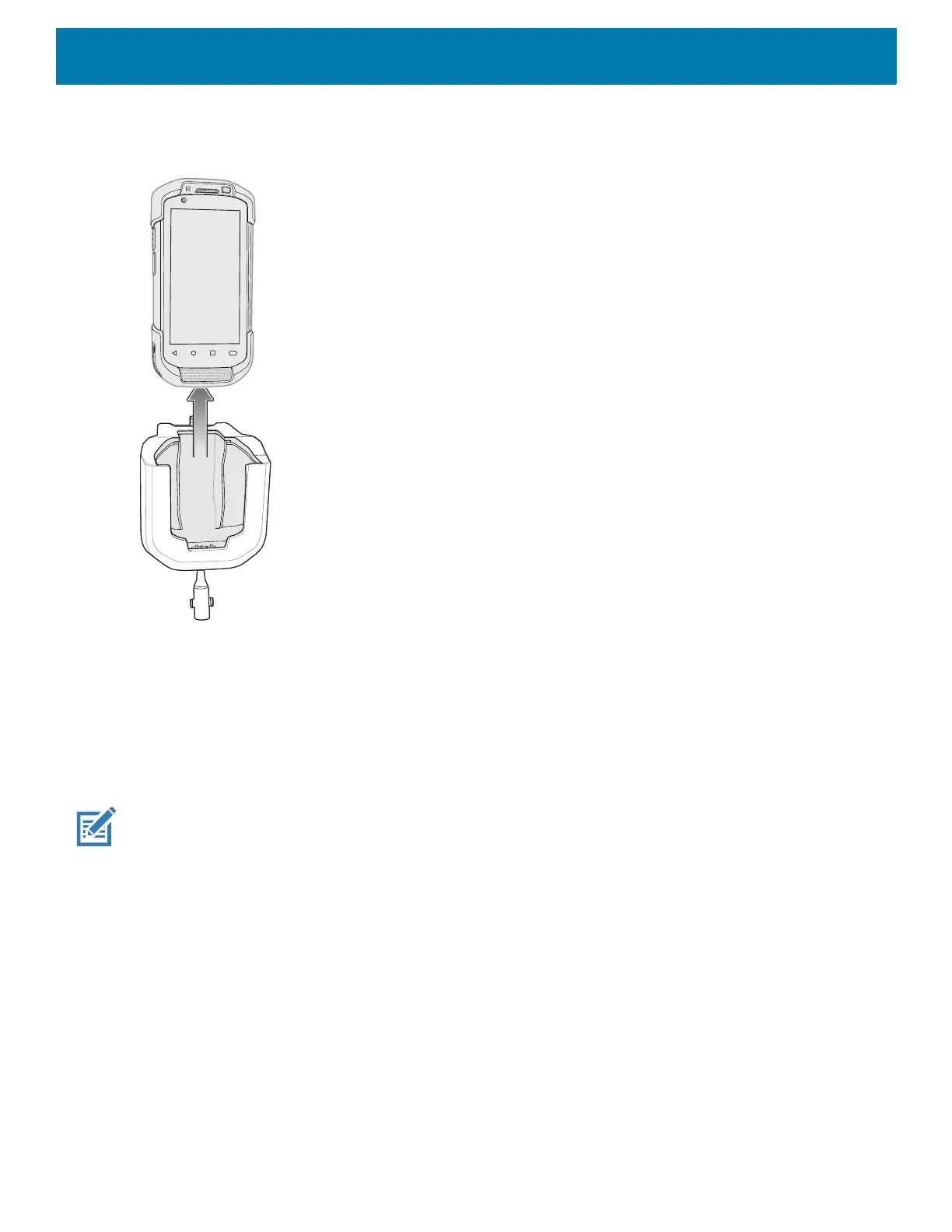

To remove the device from the cradle, grasp the device and lift out of the cradle.
Figure 184 Remove Device from Vehicle Cradle
Battery Charging
Ensure the cradle is connected to a power source.
Insert the device into the cradle. The device starts to charge through the cradle as soon as it is inserted. This
does not deplete the vehicle battery significantly. The battery charges in approximately four hours. See Table 3
on page 27 for charging indications.
NOTE: The Vehicle Cradle operating temperature is -40°C to +85°C. When in the cradle, the device will only charge when
its temperature is between 0°C to +40°C.
TC7X Vehicle Communication Charging Cradle
The Vehicle Communication Charging Cradle:
• holds the device securely in place
• provides power for operating the device
• re-charges the battery in the device.
The cradle is powered by the USB I/O Hub.
