Accessories

210

USB I/O Hub

The USB I/O Hub:

• provides power to a vehicle cradle

• provides USB hub for three USB devices (such as printers)

• provides a powered USB port for charging another device.

The cradle is powered by the vehicle’s 12V or 24V electrical system. The operating voltage range is 9V to 32V

and supplies a maximum current of 3A to the vehicle cradle and 1.5 A to the four USB ports simultaneously.

Refer to the device Integrator Guide for Android Version 8.1 for information on installing the USB I/O Hub.

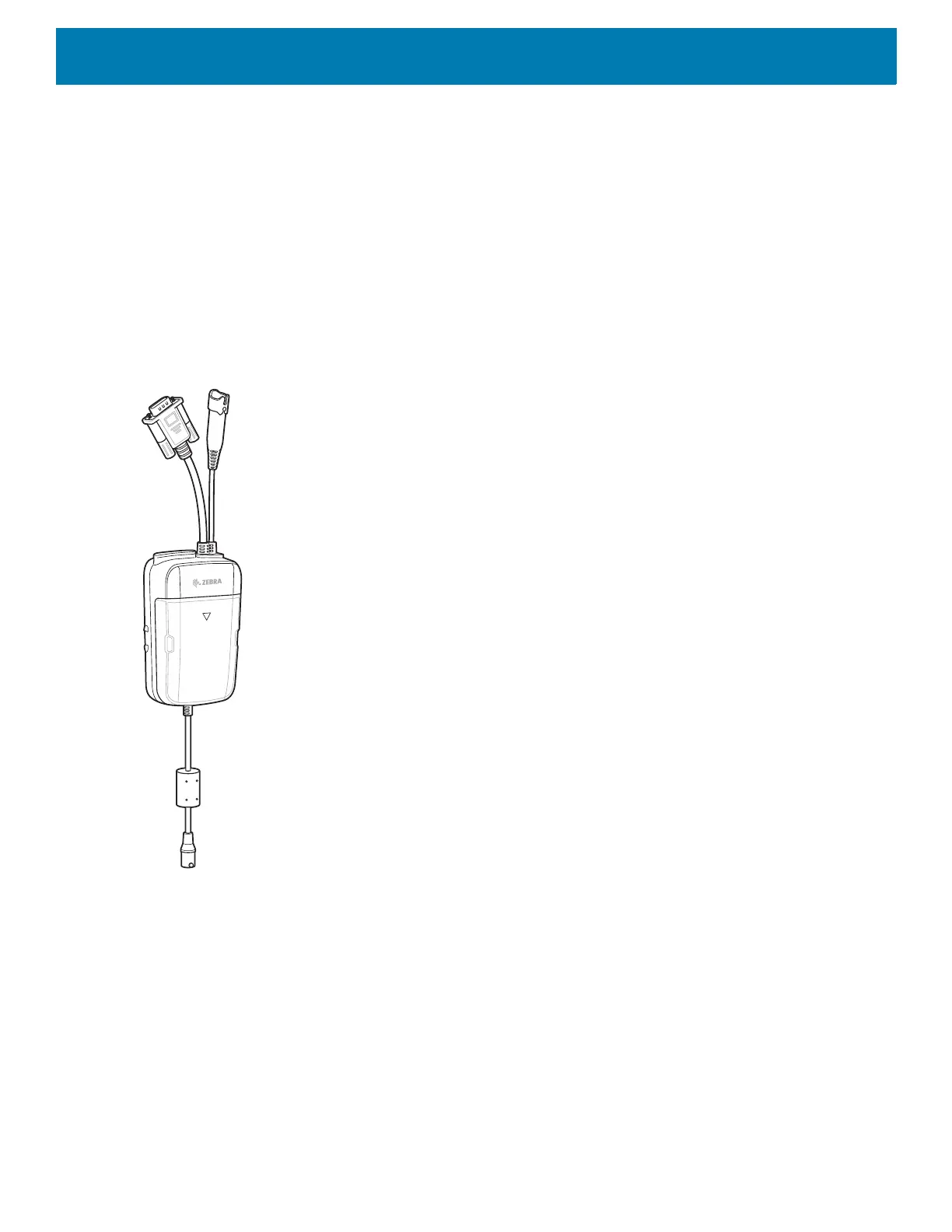

Figure 188 USB I/O Hub

Connect USB Cables

The USB I/O Hub provides three USB ports for connecting devices such as printers to a device in the vehicle

cradle. To connect USB cables:
