Zebra ZD410 User Manual

Maintenance
116
5. Clean the platen with the alcohol moistened swab. Clean from the center out. Repeat this process until
all of the roller surface has been cleaned. If there has been heavy adhesive build-up or label jam,
repeat with a new swab to remove residual contaminants. Adhesives and oils, for example, may be
thinned by the initial cleaning but not completely removed.
6. Discard the cleaning swabs after use - do not reuse.

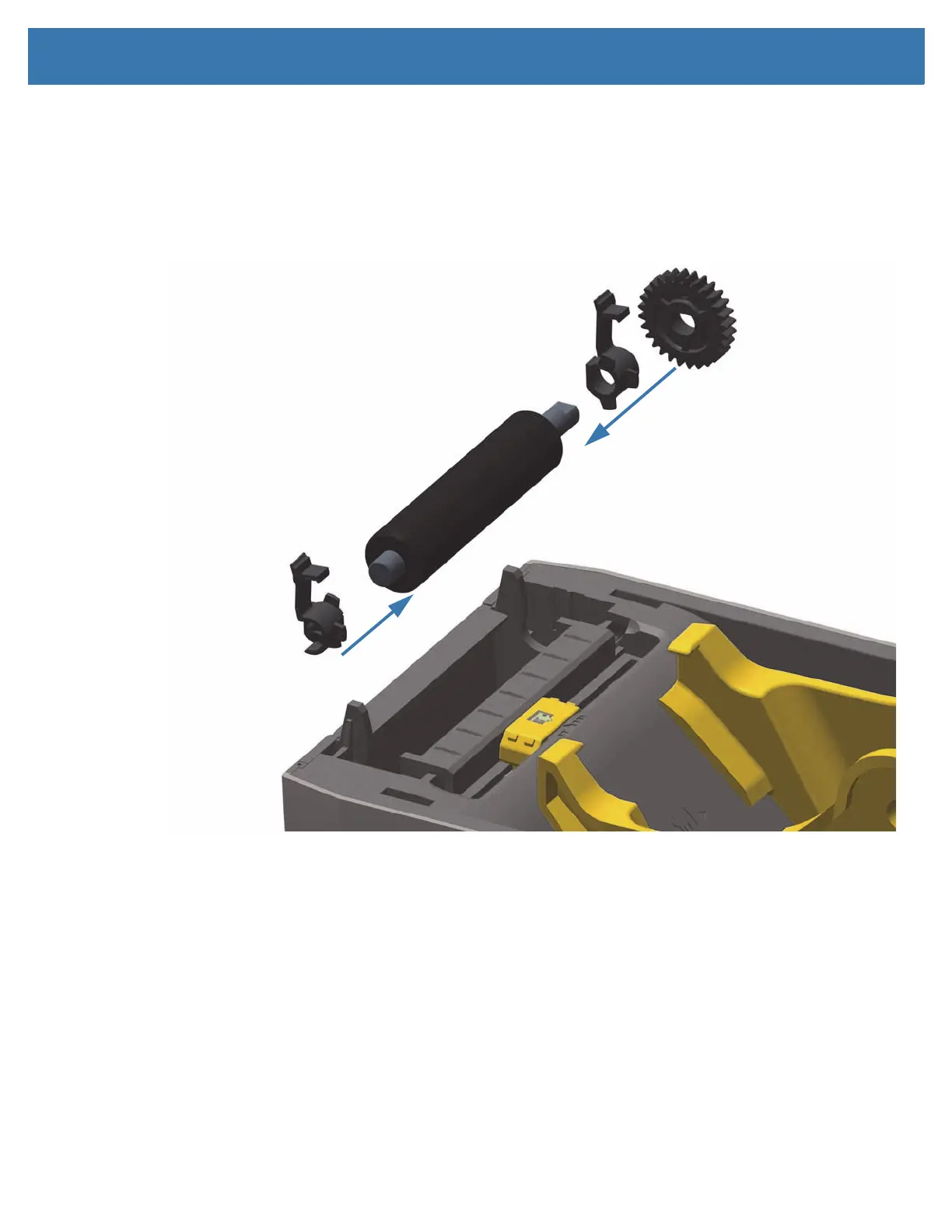

7. Make sure the bearings and drive gear are on the shaft of the platen roller.
8. Align the platen with the gear to the left and lower it into the printer’s bottom frame.
9. Rotate the platen bearing latch release tabs down on the right and left sides towards the rear of the
printer and snap them into place.
Allow the printer to dry for one minute before closing the dispenser door, media cover or loading labels.

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
