Install Hardware Options
32
Print Media Handling Options
The media handling options and access are secured to the printer by two (2) Torx T10 screws located on
the bottom of the printer. A Torx Allen type wrench is provided.
ESD Caution • If the precaution is not taken, the product electronics could be damaged by an electrostatic discharge.
EXAMPLE: Observe proper electrostatic safety precautions when handling static-sensitive components such as circuit
boards and printheads.
Update Printer Firmware to Finish Option Installations
It is recommended that you always update the printer’s firmware with the latest version for optimal printer
operation. This is located on the Zebra Web site at: http://www.zebra.com/support

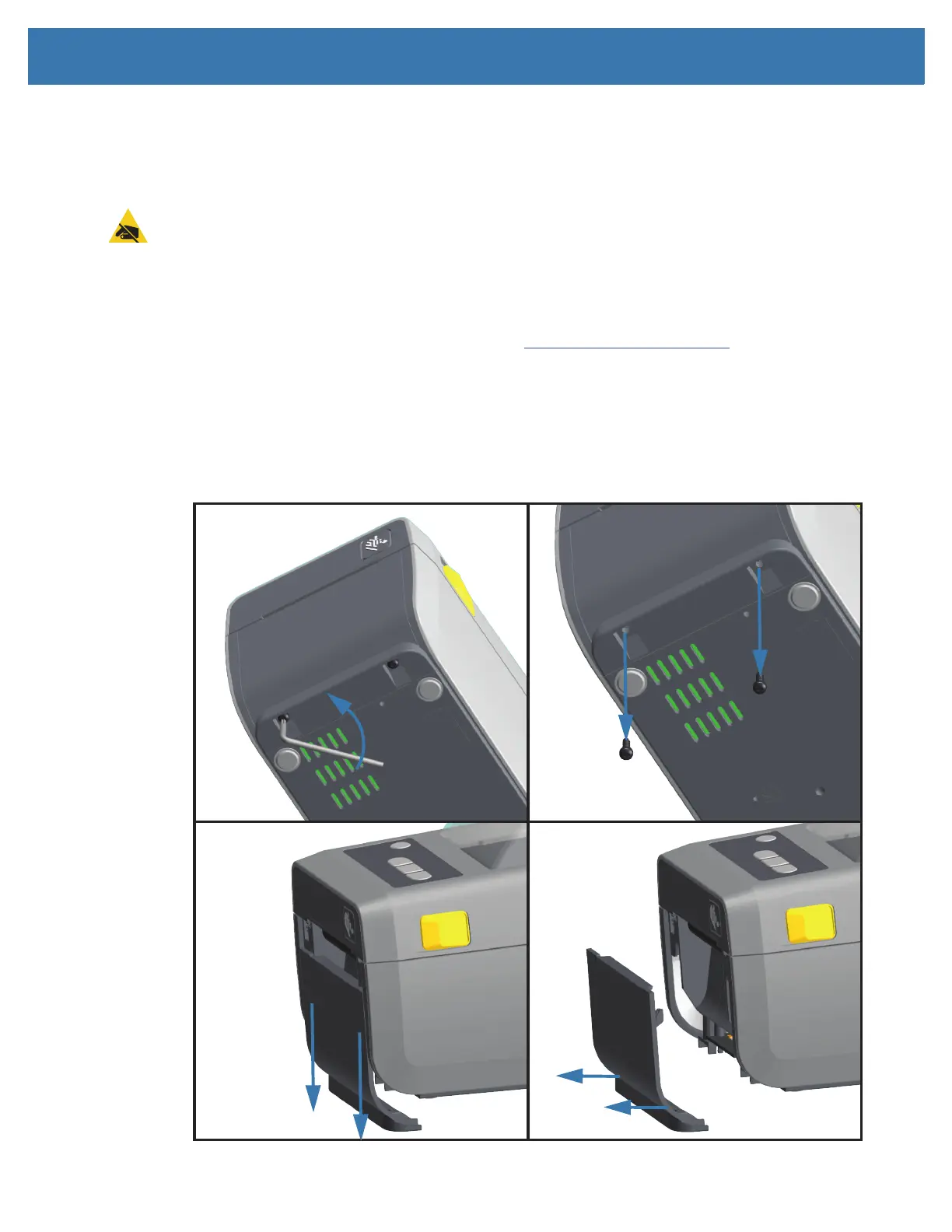

Removing the Standard Bezel
The standard bezel must be removed to mount your media handling option.
1. Turn the printer upside down. Remove the two (2) mounting screws. Save the screws.
2. Slide the bezel down the front about 12.5 mm (0.5 inch) and pull the loose bezel out.
