Zebra ZD410 User Manual

Tools
147
Media Sensor Profile (Figures 5 and 6)
The line labeled MEDIA (1) on the sensor profile indicates the media sensor readings. The media sensor
threshold settings is indicated by WEB (2). The media out threshold is indicated by OUT (3).The upward
spikes (4) indicate gaps between labels (the web), the lines between the spikes (5) indicate where labels
are located, and the numbered line at the top (6) provides measurement in dots from the start of the
printout.
If you compare the sensor profile printout to a length of your media, the spikes should be the same
distance apart as the gaps on the media. If the distances are not the same, the printer may be having
difficulty determining where the gaps are located.

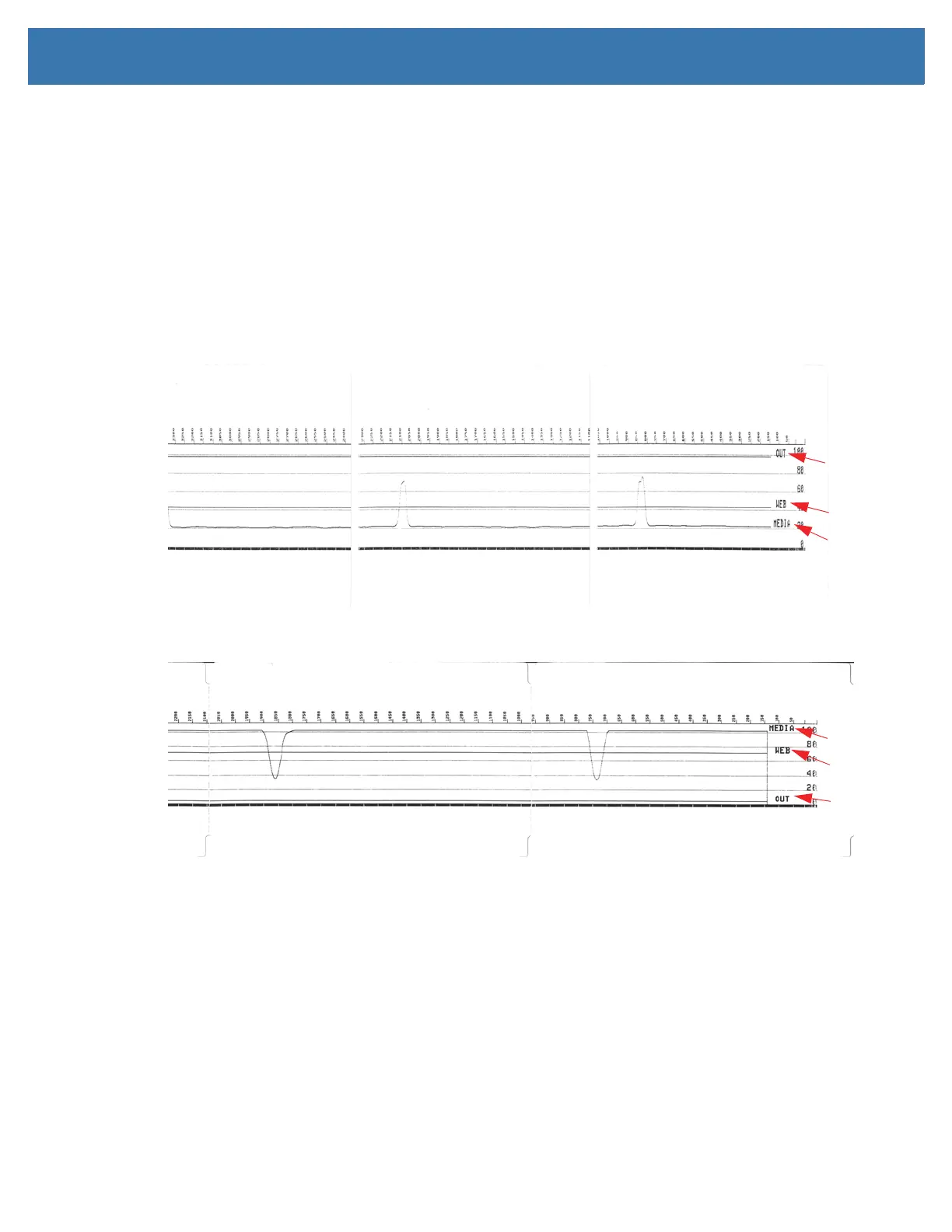

Figure 6 Sensor Profile (Gap Media)
Figure 7 Sensor Profile (Black Mark Tag Media)
1
2
3
4
6
5
5
4
5
1
2
3
4
5
5
4

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
