Install Hardware Options
30

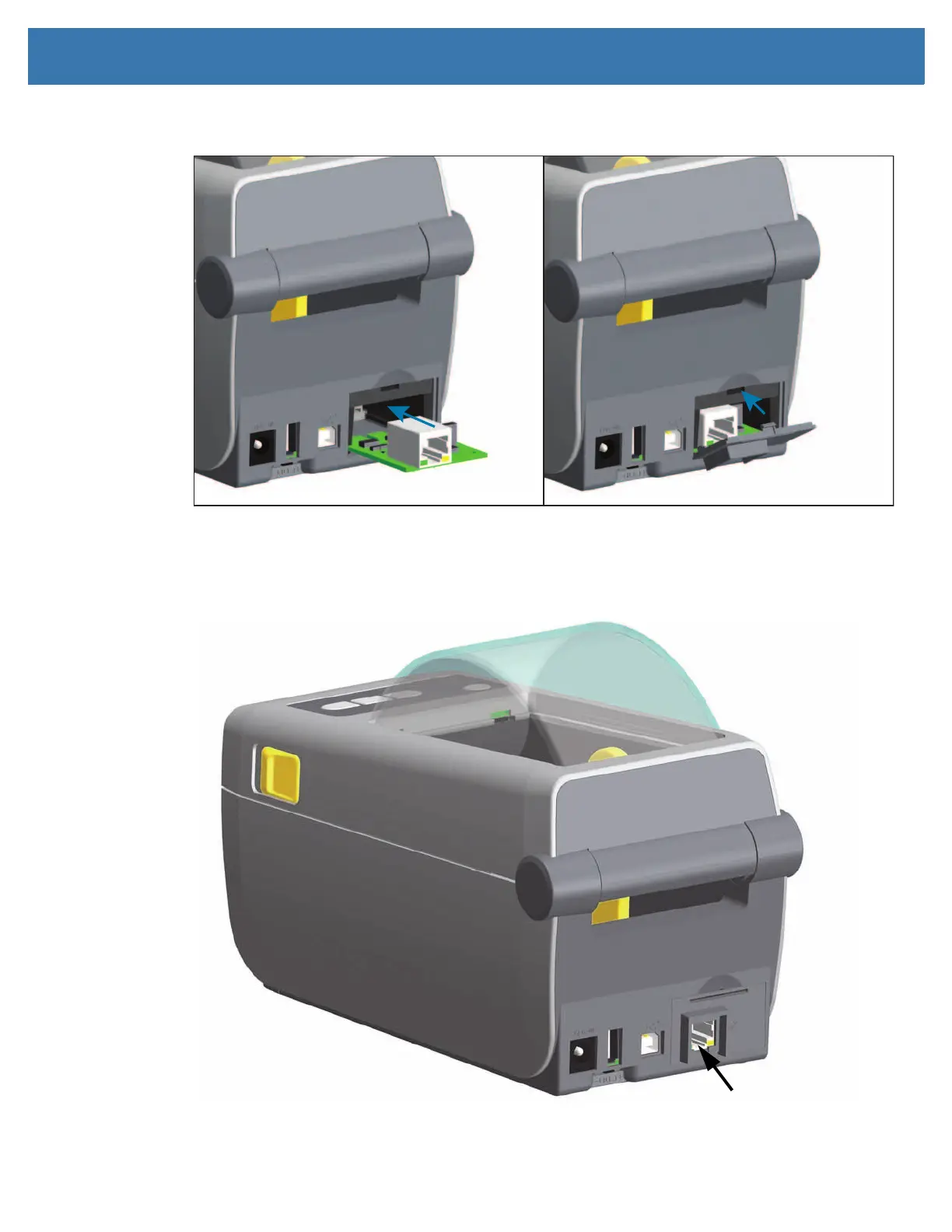

Installing the Internal Ethernet (LAN) Module
1. With the module’s access door removed, slide the Ethernet module into the printer. Push the circuit
card in slowly but firmly until the card is just past the inside lip of the access door.
2. Align the bottom of the Ethernet port’s door cover to the bottom lip of the module access opening.
Swing the door up and snap the cover closed.
