Zebra ZD410 User Manual

Setup
48

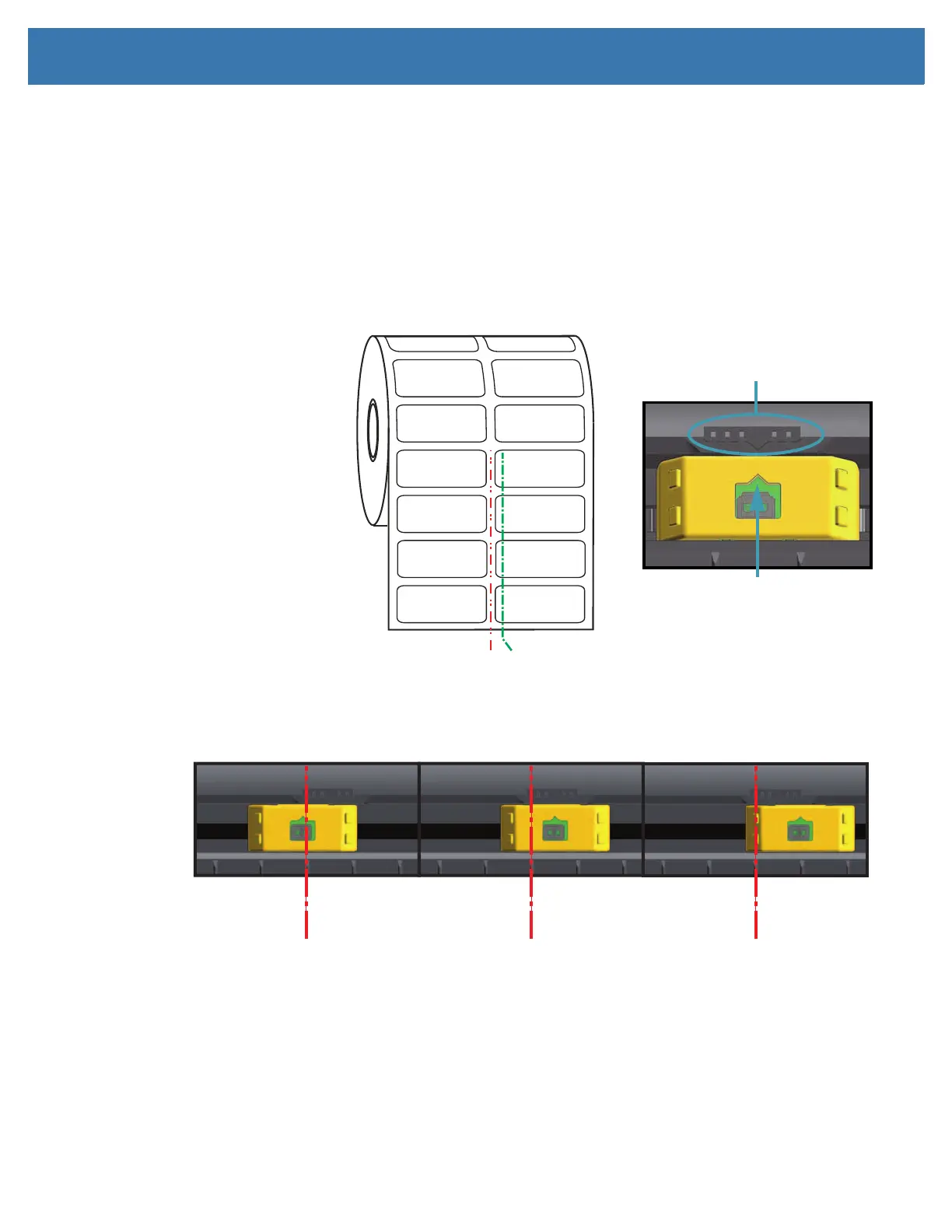

Adjusting the Movable Sensor for Web (Gap) Sensing
The movable sensor for web/gap sensing supports multiple positions.
• The movable sensor’s ‘Default’ position is ideal for most label types.
• The adjustment range is from center to off-center positions which are ideal for printing two (2) labels
side by side on a roll.
• The movable sensor adjustment range covers sensor positions use by legacy Zebra printers.
Web (Gap) sensing with the movable sensor only functions when the movable sensor’s alignment arrow
points to any position on the alignment key. The adjustment range is shown below.
Zebra Printer Models Fixed Sensor Position Relative to the ZD410
• Default — Zebra Models:
LP/TLP 2824 Plus, G-Series ™ fixed position sensors, LP/TLP 2842 ™ ,
LP/TLP 2844 ™ , LP/TLP 2042 ™
• Center Aligned — Zebra Model: LP/TLP 2742 ™
C
L
Default Gap
Sensing Position
Center Line -
Alignment Key
Alignment Arrow
(Default Position)
C
L
C
L
C
L
Adjustment Range - Left to Right
DefaultCenter Aligned Maximum Right

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
