Zebra ZD410 User Manual

Setup for Windows OS
69

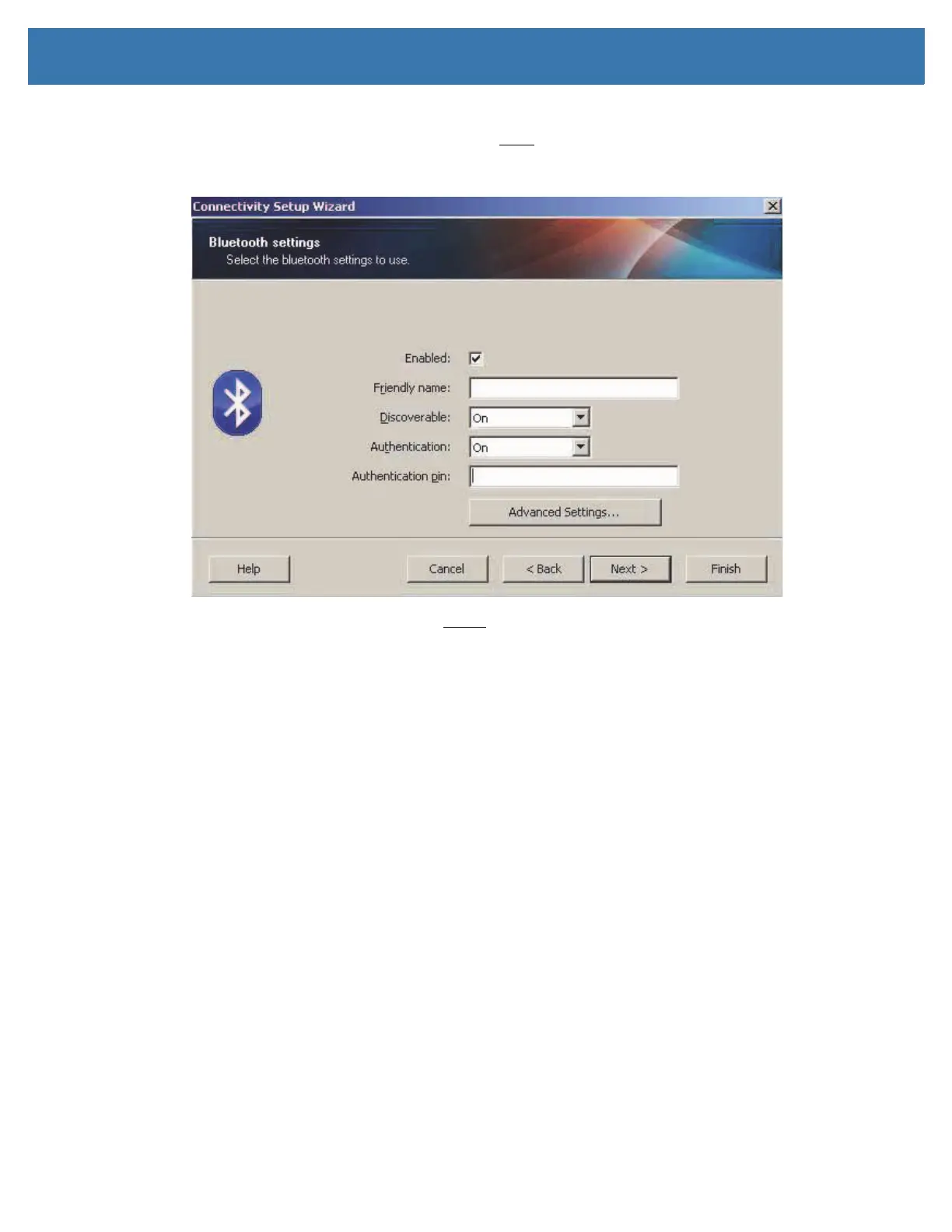

9. The values set in the Authentication PIN field will vary depending on the Bluetooth (BT) version of the
master device. If the master uses BT v2.0 or older
, enter a numeric value in this field. You will be
prompted to enter this same value on the master device to verify pairing. Security Mode 2 or 3 in
Advanced Settings should also be selected for PIN paring.
10.If the master device uses BT v2.1 or newer
, this setting has no effect. BT v2.1 and newer uses Secure
Simple Paring (SSP) which does not require the use of a PIN.
11.Clicking on the Advanced Settings button will display the Advanced Bluetooth Settings window. For
more information on Advanced Settings, refer to the Wired and Wireless Print Server Guide.
12.Click Next to continue configuring your printer.
13.The SGD commands to properly configure your printer will be displayed. Click Next to continue to the
Send Data screen.
14.On the Send Data screen, click on the Printer that you want to send the commands to or click on the
File button to save the commands to a file for reuse later.
15.To send the commands to the printer, click on the Finish button. The printer will update and then reboot.
You may disconnect the USB interface from your printer now.
16.To complete the Bluetooth pairing process, enable Bluetooth device discovery on your master device
and follow the directions provided with the master device.

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
