Print Operations
84

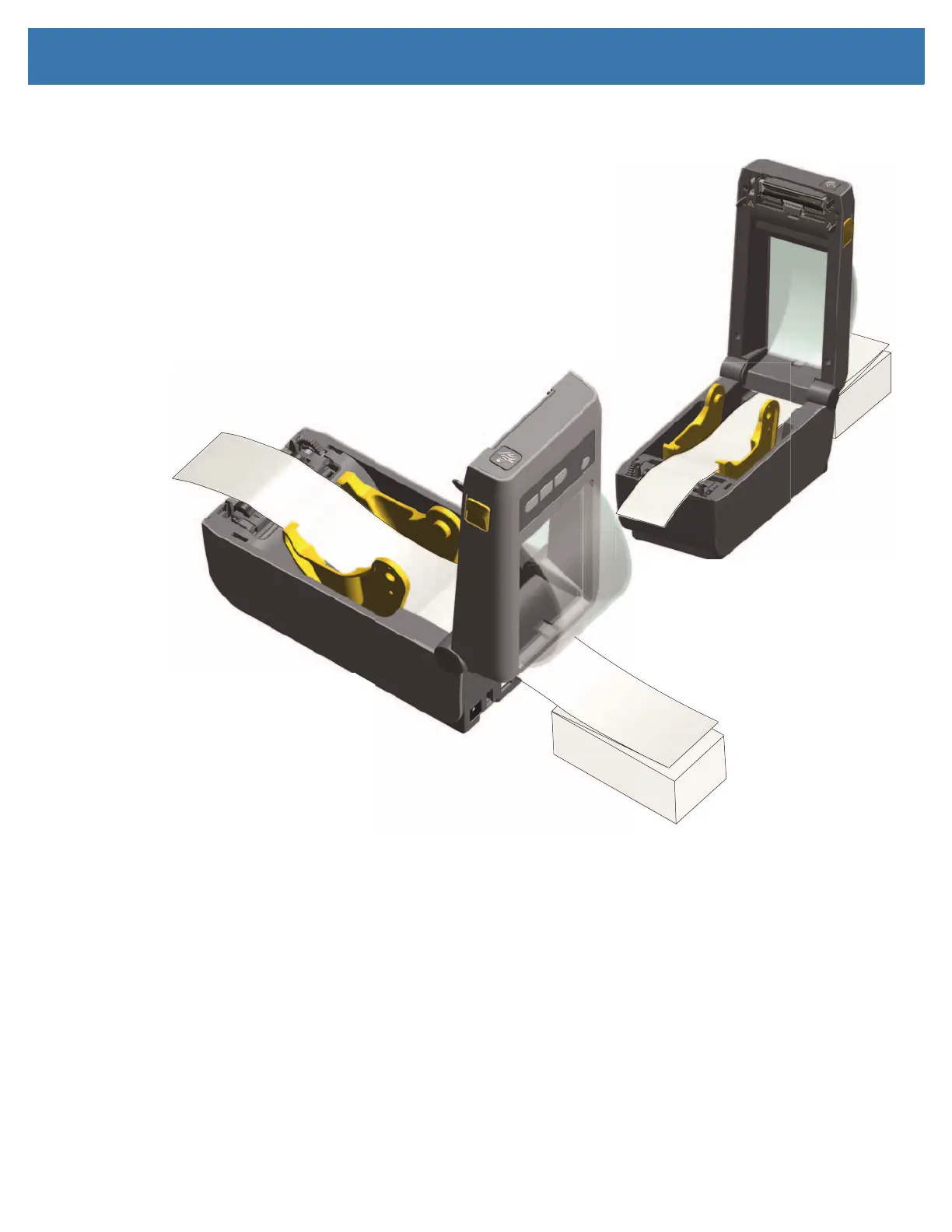

3. Insert the media through the slot at the rear of the printer and place the media between the media guide
and roll holders.
4. Close the top cover.
After printing or feeding several labels: If the media does not track down the center (moves from side to
side) or the sides of the media (liner, tag, paper, etc.) are frayed or damaged when exiting the printer, then
the media guides may need further adjustment. If this does not correct the problem, then the media can be
routed over the two roll holding pins on the media guide. An empty roll core of the same width as the stack
of the fan-fold media can be placed between the roll holders to provide additional support for thin media.
