Using the Printer
34

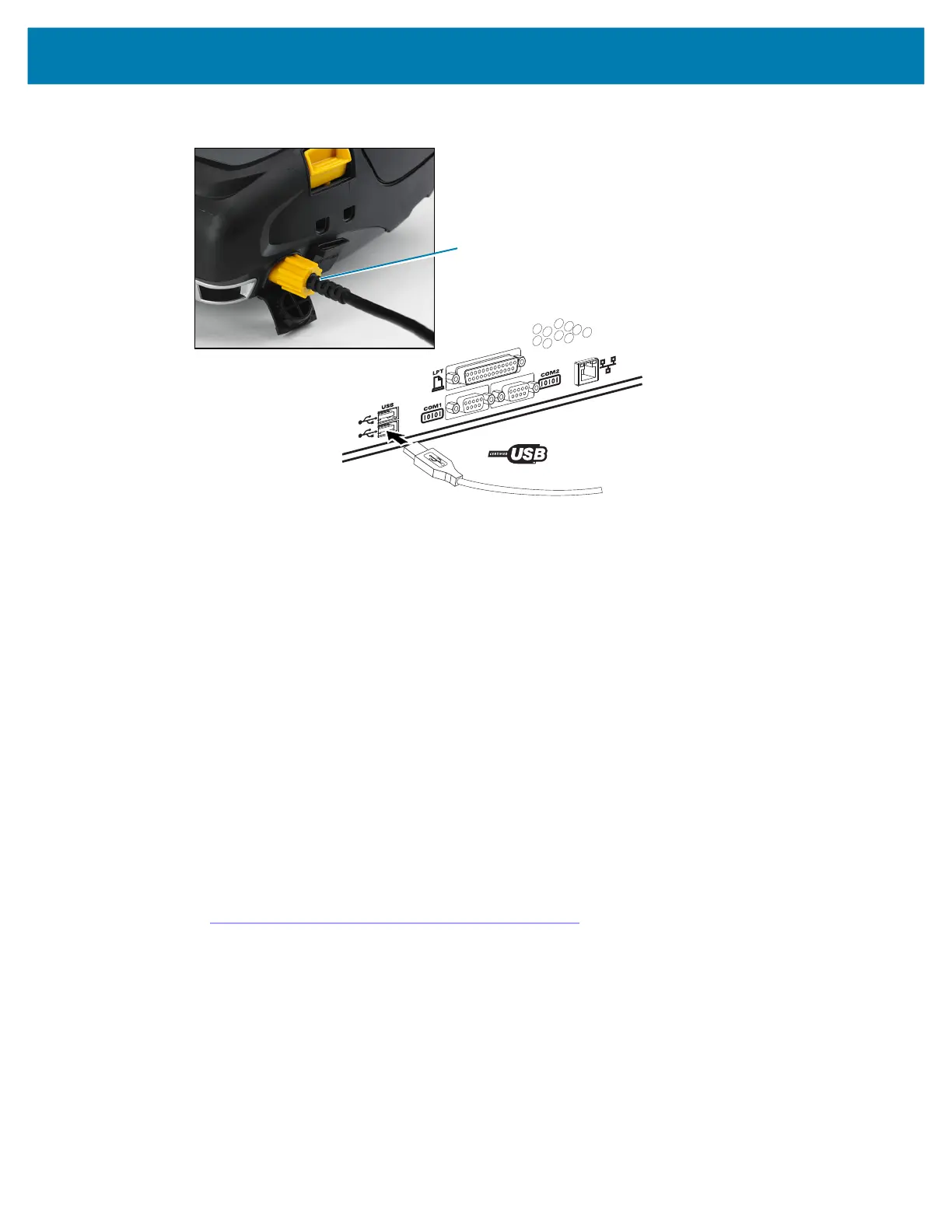

Figure 24 Cable Communication with PC
The small 5-pin connector on the USB cable plugs into the printer, and the connectors are keyed to ensure
correct alignment. Do not try to force the cable if it does not plug in as this could damage the pins.
The other end of the cable plugs into the USB port on a computer as shown in Figure 24. The printers are
configured with the USB Open HCI interface allowing them to communicate with Windows
®
based devices.
USB drivers are included in the Zebra Designer Driver which can be downloaded from the Zebra website.
Zebra Setup Utilities
Before you start to configure your printer for use on a Local Area Network (LAN), you will need some basic
information which will enable you to establish the network configuration for your printer. Zebra Setup
Utilities (ZSU) provides a quick and easy way to configure your printers for a variety of purposes, including
setting them up for wireless communications either on a Local Area Network (LAN) or using the
international Bluetooth ™ communications standard.
Once ZSU has been downloaded to your computer, attach the USB cable to the printer and computer as
shown in Figure 24. Refer to Wireless Configuration Guide to follow the steps necessary for setting up and
configuring your printer via ZSU.
Go to https://www.zebra.com/us/en/support-downloads.html
to download ZSU and the Wireless
Configuration Guide.
