Using the Printer

Using Pre-Printed Receipt Media

For alignment of pre-printed documents to Top of Form (TOF), the use of a black mark is necessary. The

black bar can be placed on the back of the documents by following the recommendation below.

The black bar can also be placed on the front of the document. The user must change the

media.bar_location setting to "front".

Black Mark Dimensions (Receipt Media)

The reflective media black marks (or black bar/marks) should extend past the centerline of the roll on the

front side of the paper.

• Minimum mark width: 15 mm (0.59 in.) perpendicular to the edge of the media, and centered within the

width of the roll.

• Mark length: 4.8 - 6.0 mm (0.19 - 0.24 in.) parallel to the edge of the media.

Label Areas

The media/black bar sensor detects the dark, pre-printed bar on the media, so a path in the center of the

paper must be kept free of dark, pre-printed graphics.

NOTE: Dark, pre-printed graphics refer to any symbols, barcodes, text and/or colored areas that have

been applied to the receipt paper rolls before they have ever been used in the printer.

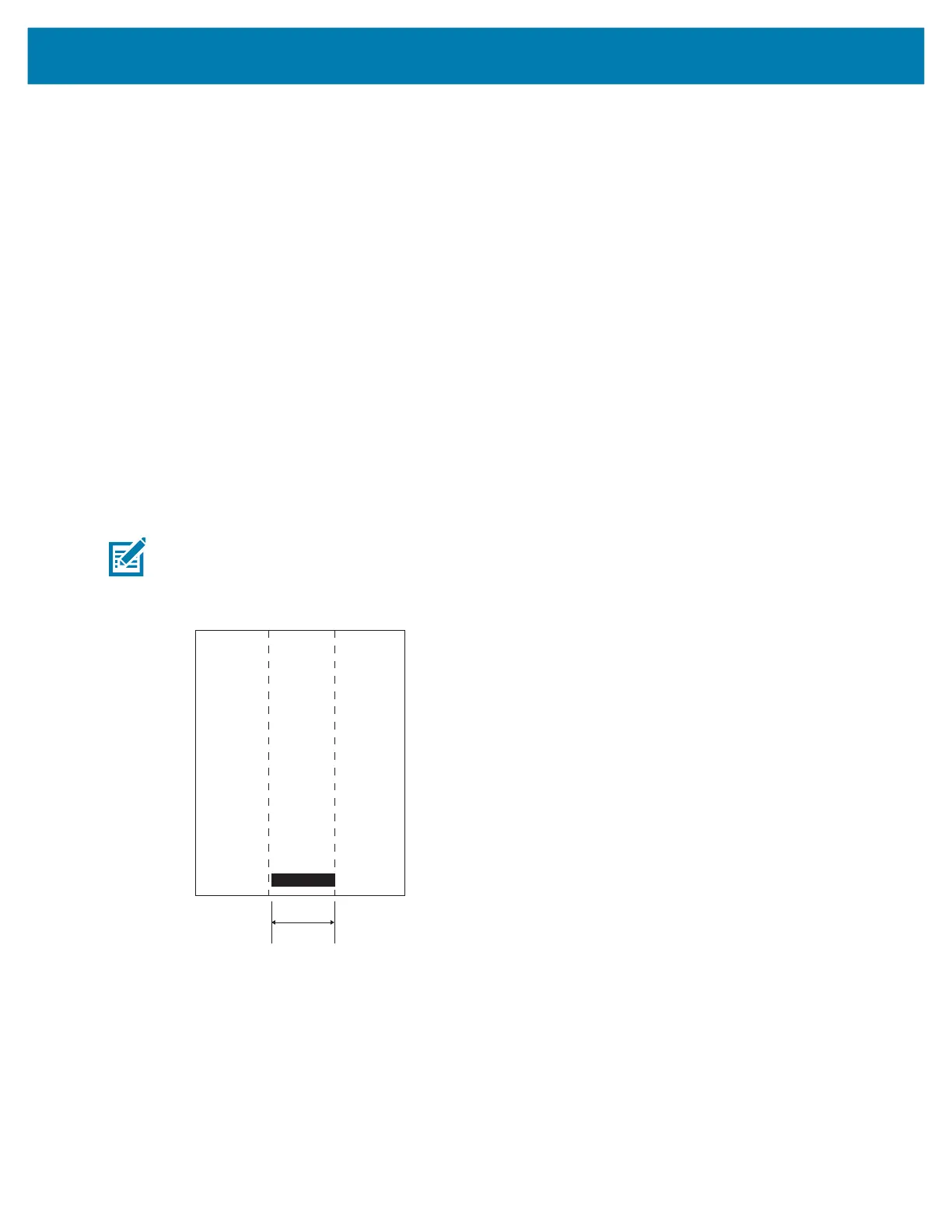

Figure 30 Label Areas

Keep

dark color

pre-printed

graphics,

barcodes,

and text

out of the

path

of the

bar sensor.

15 mm

(0.59 in.)
