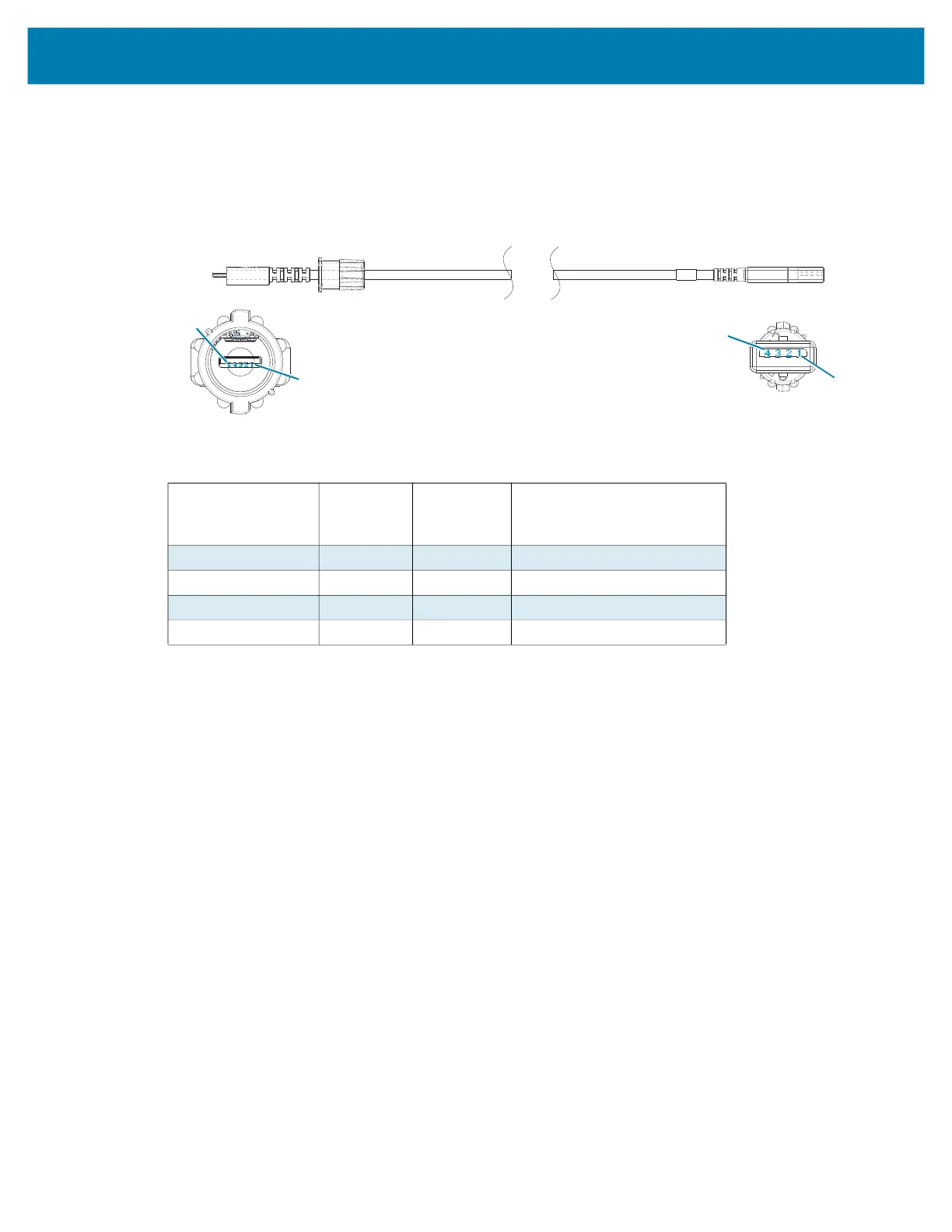

Figure 46 Micro,USB-A to USB-A
CONNECTOR B
5 POSITION USB
MICRO TYPE A
SIGNAL COLOR
CONNECTOR A
4 POSITION USB
TYPE A RECEPTACLE
PIN 1 VBUS RED PIN 1
PIN 2 USB D- WHITE PIN 2
PIN 3 USB D+ GREEN PIN 3
PIN 5 GROUND BLACK PIN 4
Connector B
Connector A
Pin 4
Pin 1
Pin 5
Pin 1
