Zebra ZQ511 - Page 67

Miscellaneous
67

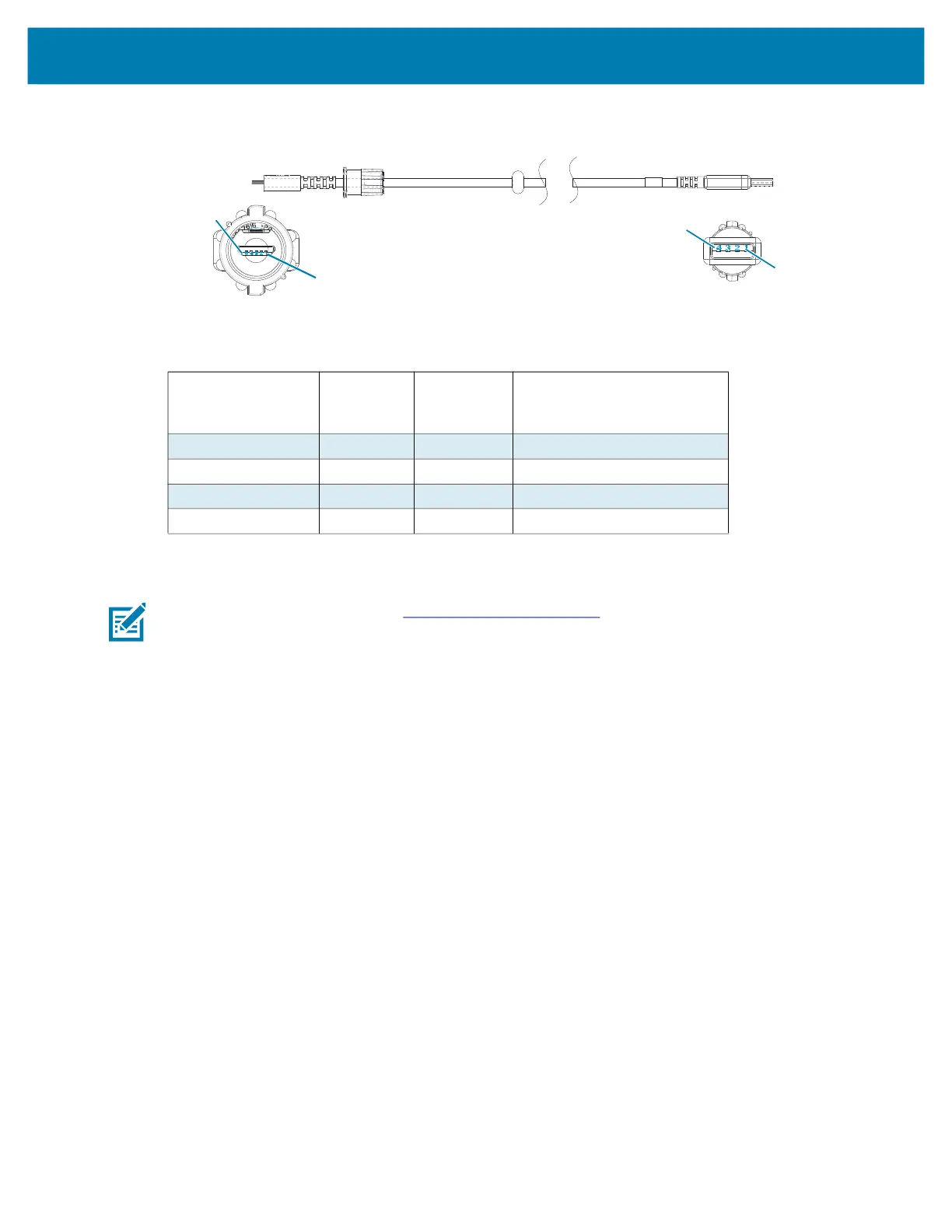

Figure 47 Micro USB-B to USB-A Plug, 1.8m/3.5m
NOTE: Visit the Zebra website at: www.zebra.com/accessories
for a listing of interface cables and part
numbers for all Zebra mobile printers.
CONNECTOR B
5 POSITION USB
MICRO TYPE B
SIGNAL COLOR
CONNECTOR A
4 POSITION USB
TYPE A PLUG
PIN 1 VBUS RED PIN 1
PIN 2 USB D- WHITE PIN 2
PIN 3 USB D+ GREEN PIN 3
PIN 5 GROUND BLACK PIN 4
Connector B
Connector A
Pin 5
Pin 1
Pin 1
Pin 4
