Using the Printer
42
Label Design Examples
This section shows examples of labels with and without problems with the black mark located in the front of
the document.

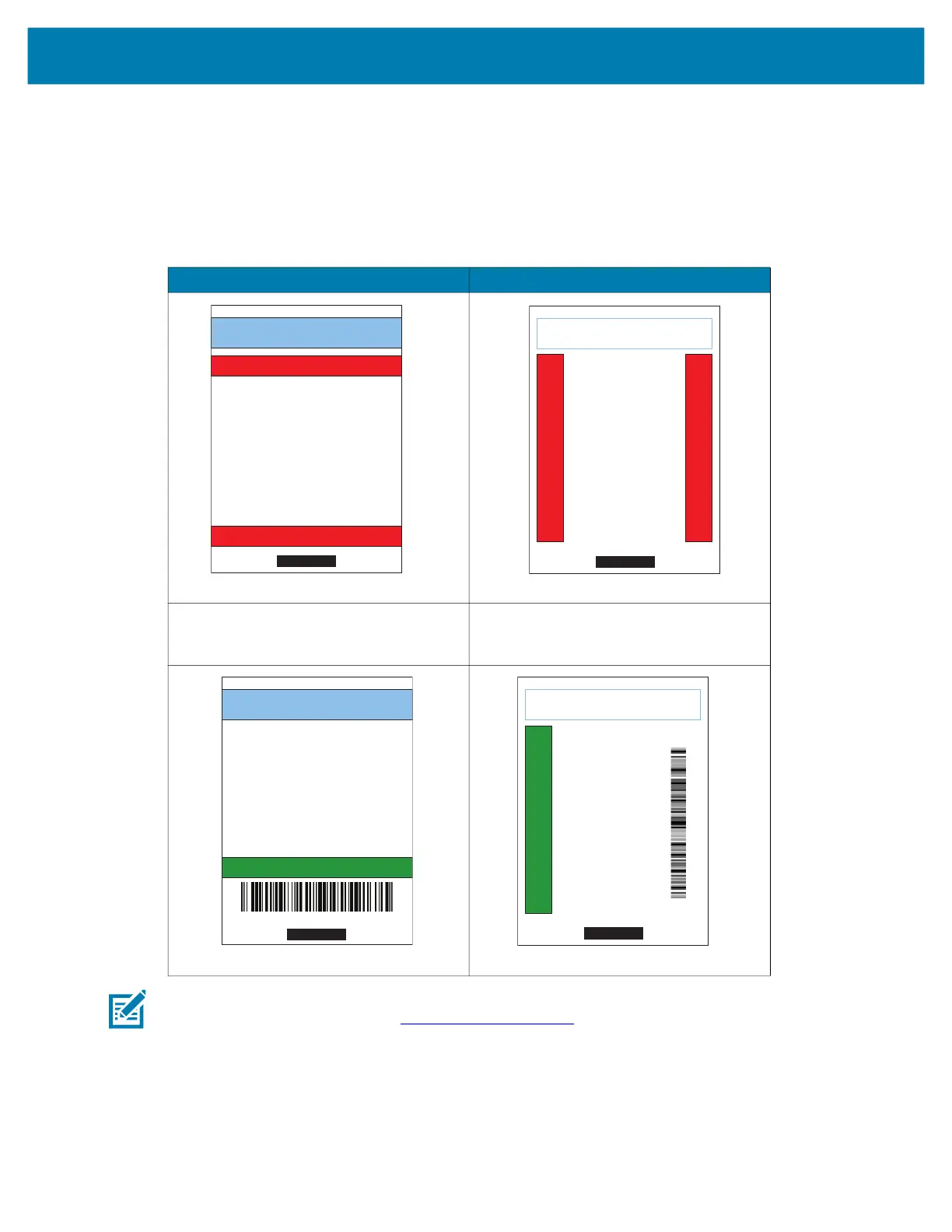

Figure 31 Label Design Examples
NOTE: Complete information on using pre-printed receipt paper can be found in the FORM command in
the CPCL Programming Guide at www.zebra.com/manuals
.
Problem Label Designs Good Label Designs
The dark colors, pre-printed text, and
graphics are in the path of the black bar
at the bottom of the receipt.
The center path to the black bar is free of
dark colors, pre-printed text,
and graphics.
ACME COLLEGE
PARKING
VIOLATION
PARKING
VIOLATION
ACME COLLEGE
ACME RECEIPT
Quality FIRST
1 2 3 4 5 6 7 8 9
ACME RECEIPT
Quality FIRST
1 2 3 4 5 6 7 8 9
