Axiovert 40
11/03 B 46-0031 e
2Ć4
(5) Mounting the attachable object
traverser M
• Attach the attachable object traverser M for AxĆ
iovert 40 (2Ć6ā/ā6) to the left or right of the speciĆ
men stage (2Ć6ā/ā2) and secure it from below with
three knurled screws (2Ć6ā/ā3).
NOTE The L rail (2Ć6ā/ā4) of the attachable obĆ
ject traverser M must be flush with
the specimen stage.
The attachable object traverser M is
moved by means of a coaxial drive
(2Ć6ā/ā5) (bottom drive knob for X
movement and top drive knob for Y
movement).
• Select the mounting frame (2Ć6ā/ā1) appropriate for
the specimen vessel to be used and fit the correĆ
sponding scales in the recesses on the attachable
object traverser M and adhere them.
NOTE When using the mounting frames, make sure that the mounting frames are inserted correctly
in the attachable object traverser M, i.e. the mounting frames must engage in the two holding
clips (2Ć6ā/ā7).
• Section 2.5 ("Working with attachable object traverser M and mounting frames") gives a selection of
available mounting frames and the appropriate specimen vessels. However, the vessels are not included
in the standard equipment and must be provided by the user.

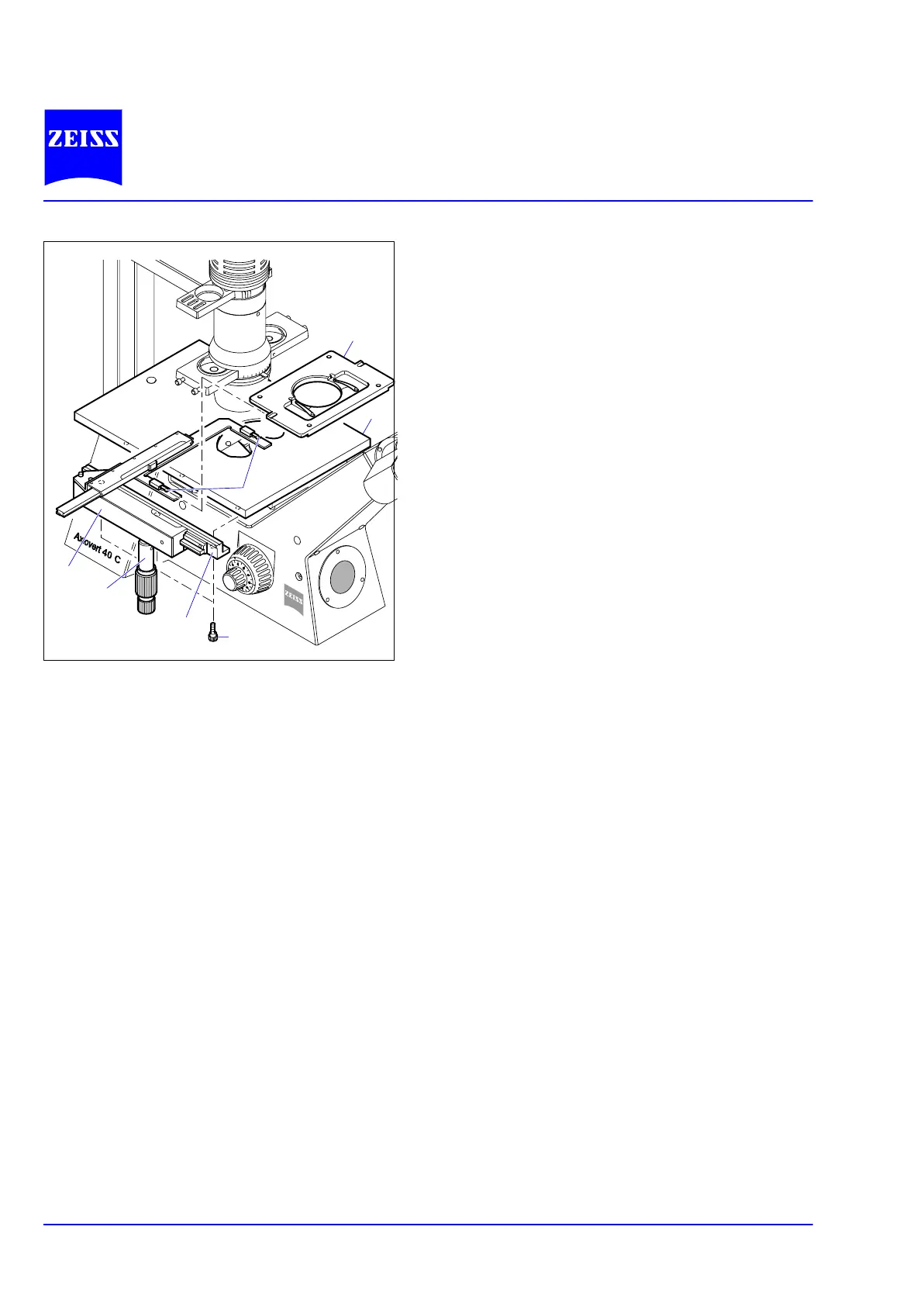

Fig. 2Ć6 Attaching the attachable object
traverser M
1
3
4
5
6
7
2
