2.6 Counting, measuring and framing reticles
Microscopic counting and measuring, and the imaging of frame sizes requires the use of special reticles. A
small selection is given below:

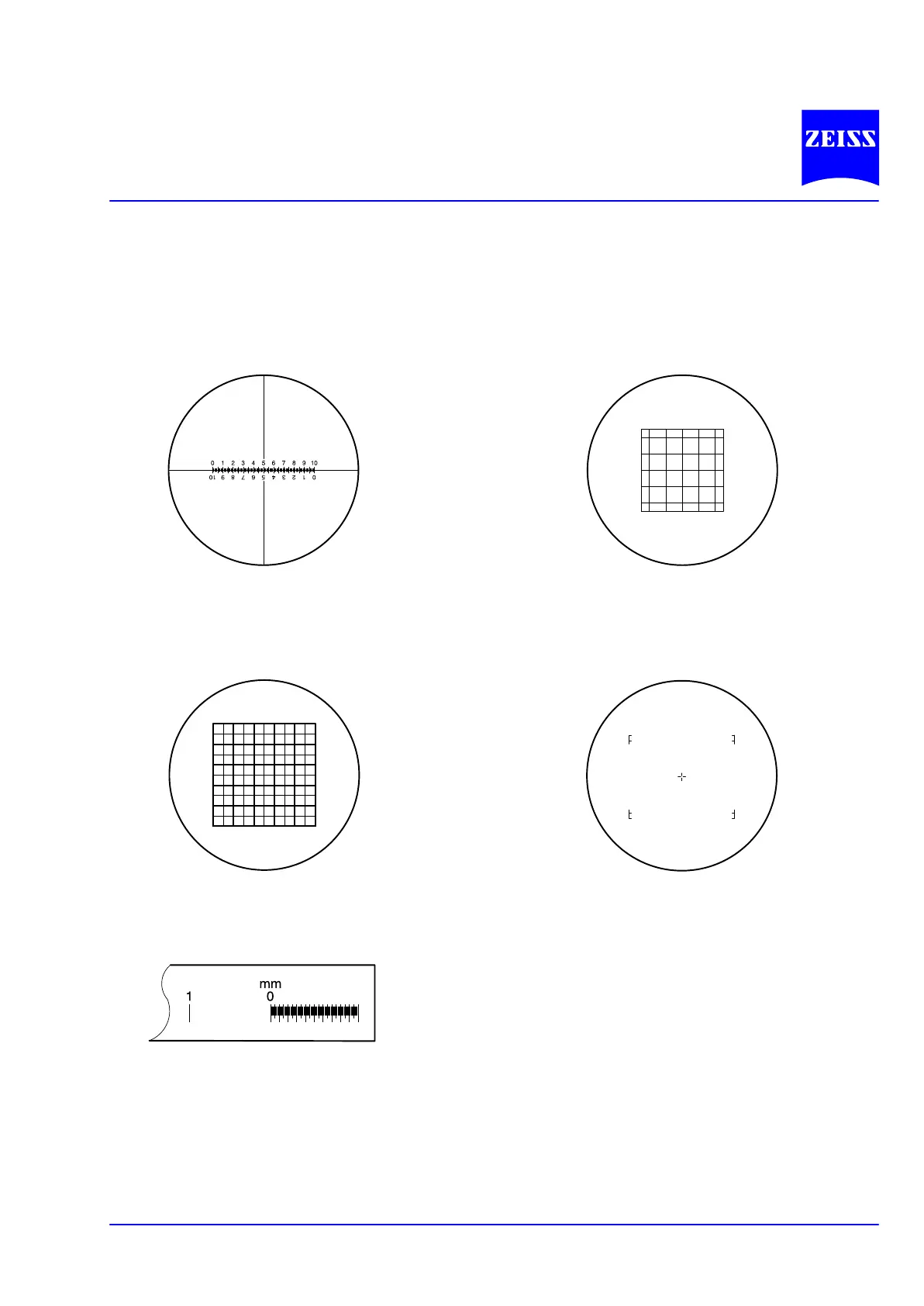

Fig. 2Ć26 Selected eyepiece reticles and stage micrometers
Crossline micrometer 14:140, ād=26
Graduation length = 14 mm
Increments = 0.1 mm
Graduation tolerance ≤ 0.001 mm
Catalogue No. 4540060-0000-000
Stage micrometer, positive, 5+100/100y
d = 0.17 mm
Graduation to one side: 5 mm in 5 intervals,
Graduation to other side: 1 mm in 100
ā/ā100 mm = 10 mm. Accuracy "1 mm.
Catalogue No. 474026-0000-000
Net micrometer 12.5x12.5/5;10 / d = 26 mm
Catalogue No. 474068-0000-000
Framing reticle MC 2.5x / d = 26 mm
Catalogue No. 454075-0000-000
Net micrometer 25/2x2, d = 26 mm
Catalogue No. 454087-0000-000
NOTE • Handling of eyepiece reticles is described in Section 2.1.2 (10).
• Other eyepiece reticles of d = 26 mm may also be used (refer to Price List).
