2.7 Working with micromanipulators
The Axiovert 40 stands are prepared as follows for the attachment of micromanipulators:
• Three M4 threaded holes (2Ć27ā/ā1) on the left and right underside of the specimen stage.
• Three M5 threaded holes (2Ć27ā/ā2) on the left and right sides of the stand.
• Four M5 threaded holes (2Ć27ā/ā3) on the underside of the stand for securing the stand.
Refer to the instructions of the manufacturer of the micromanipulator for further details of how to attach
the micromanipulator, if necessary using special adapters.

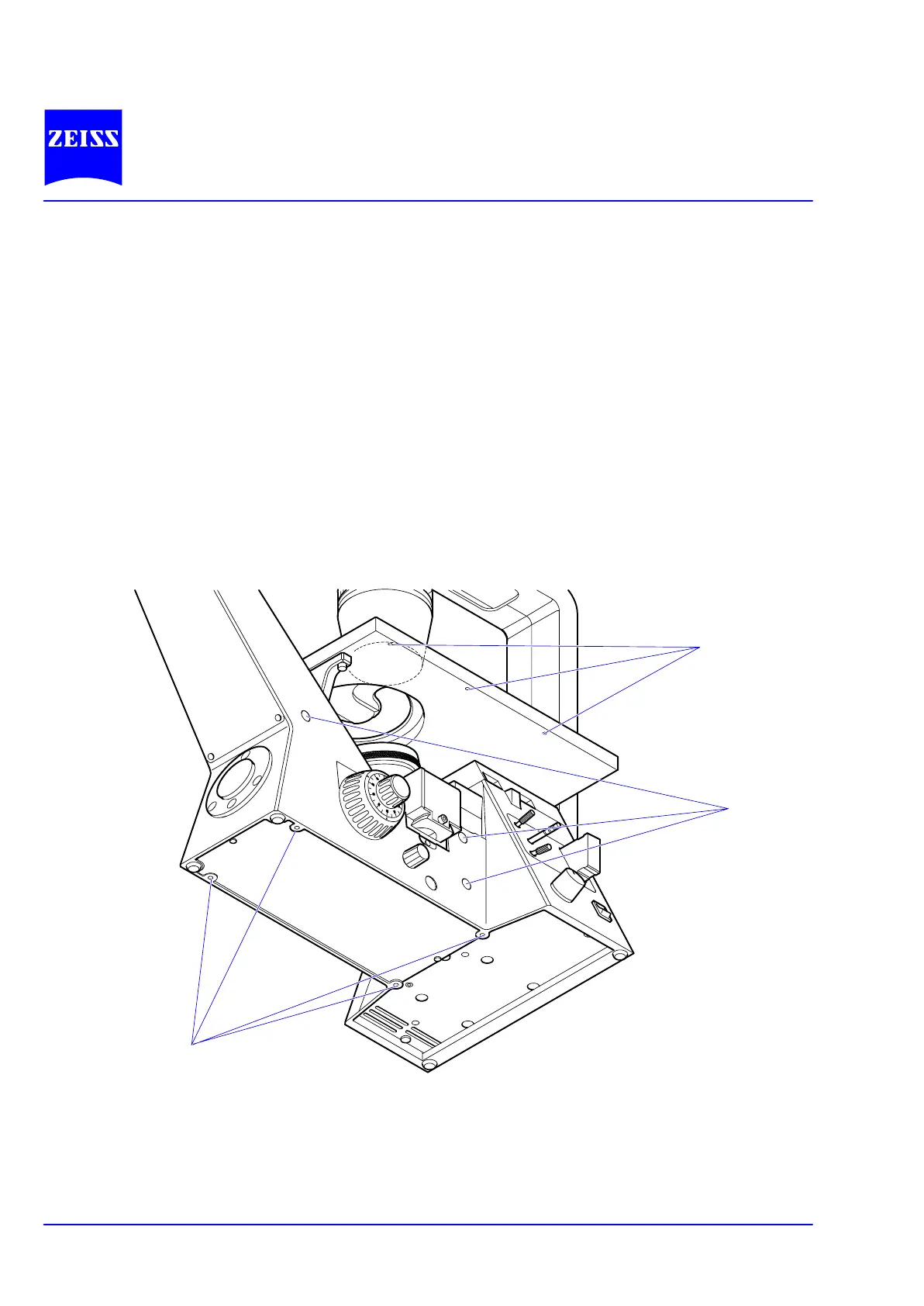

Fig. 2Ć27 Mounting facilities for micromanipulators
