3.2 Troubleshooting and service
Troubleshooting on the Axiovert 40 microscope is limited to a few actions:
• Checking the line voltage
• Checking the illuminating equipment
- Fuse replacement according to paragraph (1)
- Replacement of halogen bulb according to paragraph (2)
- Replacement of HBO 50 according to paragraph (3)
- Replacement of reflector module according to paragraph (4)
(1) Checking the line voltage
• Check power cable (3Ć1ā/ā3) and replace it, if necessary.
• Remove the fuse holder (3Ć1ā/ā1) by simultaneously pressing it in the direction indicated by the arrows.
Check the fuses (3Ć1ā/ā2) and replace the defective fuse(s).

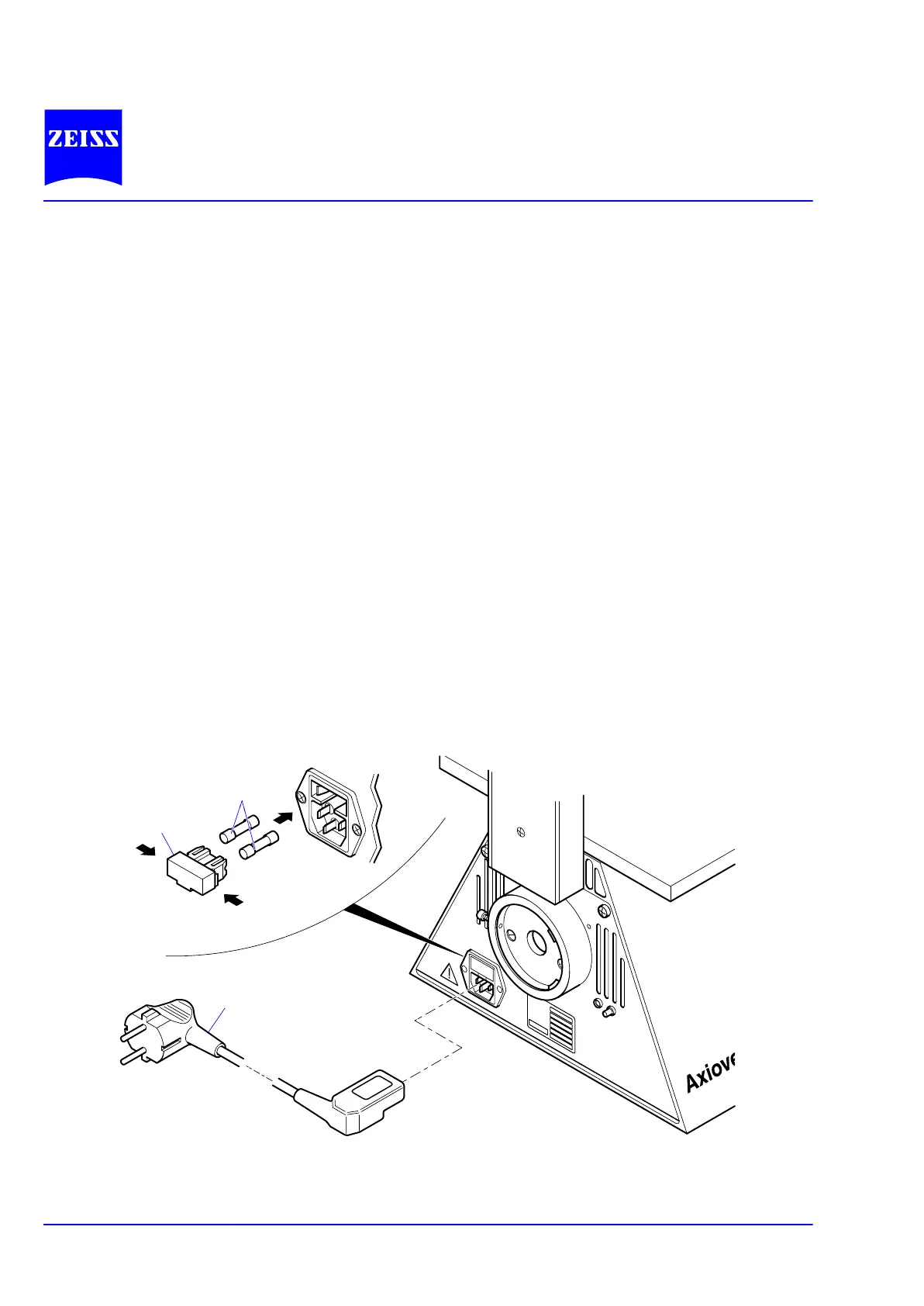

Fig. 3Ć1 Checking the line voltage
1
2
3
