Axiovert 40
B 46-0031 e 11/03 2Ć7
(9) Using the binocular tube
• Adjust the eyepiece distance to your interpupillary
distance by swinging the eyepiece tubes symmetĆ
rically towards or away from one another.
• A higher (2Ć9ā/āA) or lower (2Ć9ā/āB) viewing height
is set by swiveling the binocular tube
.
(10) Inserting an eyepiece reticle (26 mm dia.)
• The PL 10x/18 Br. foc. and E-PL 10x/20 Br. foc.
eyepieces are intended for use with reticles.
• The slight image shift produced by the additional
path through the glass is taken into account on
the diopter scale by the fact that the zero position
is indicated by the red dot
R
instead of the white
dot
W
.
• The reticles (2Ć10ā/ā2) have been cemented into
screw-in mounts (2Ć10ā/ā1) for easy replacement.
• To replace a reticle, unscrew the entire mount and
replace it by one containing the required reticle.
• Finally, check the image focus and readjust it, if
necessary (see Section 2.1.2 (8), page 2Ć6).

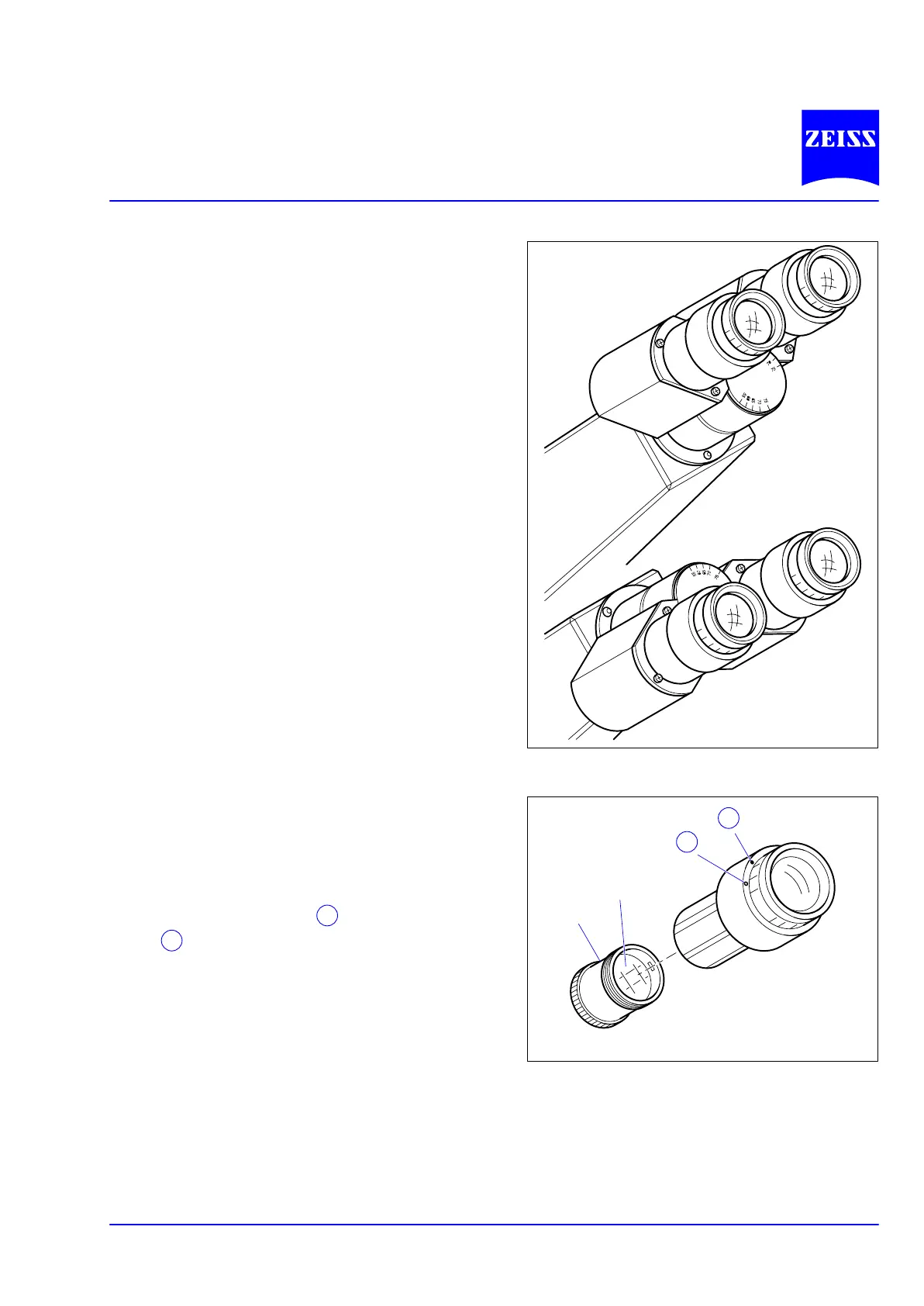

Fig. 2Ć9 Positions of the binocular tube
B
A
Fig. 2Ć10 Inserting an eyepiece reticle
1
2
W
R
