2.5 Working with attachable object
traverser M and mounting frames
• Prepare the microscope as described in Section
2.4. and 2.4.1.
• Mount attachable object traverser M as described
in Section 2.1.2 (5).
• In combination with various mounting frames
(2Ć25ā/ā3), e.g. for 76 x 26 mm specimen slides
(2Ć25ā/ā2), attachable object traverser M (2Ć25ā/ā6)
provides sensitive movement by means of a coaxĆ
ial drive (2Ć25ā/ā4).
Adhesive scales (2Ć25ā/ā5), which are supplied with
the chosen mounting frame and which must be
attached to recesses on the attachable object traĆ
verser M provide defined position display of the
specimen vessel. Mounting frames are secured by
means of holding clips (2Ć25ā/ā1).
The following mounting frames are available (other
mounting frames for COSTAR, CORNING and tissue
culture flasks, Hamax plates, Coates plates as well as
plankton chambers on request):
Mounting frame M for 76 x 26 mm specimen slides
Mounting frame M for Petri dishes; ∅ 36, 54, 65, 88 mm
Mounting frame M for 96-well microtiter plate
Mounting frame M for microtest plates with 60, 72, 120 pos.
Mounting frame M for multidishes (133.5 x 88.5 mm)
Universal mounting frame M for the use of:
• Petri dishes in the range from 35 to 60 mm
• Petriperm dishes
• Terasaki plates
• Hamax plates
• Cell cultivation chambers, such as
- TSCSĆ1, Ć2 and Ć3
- POC-R chamber
- DVORAK-STOTLER chamber and others
• Specimen slides and all vessels based on specimen slides
Universal mounting frame MX (max.133 x 88 mm, min.124 x 83 mm) for:
• Multidishes with 6, 12, 24, 48 or 96 wells
• Petri dishes with 87 to 92 mm diameter
Heatable universal mounting frame M-H

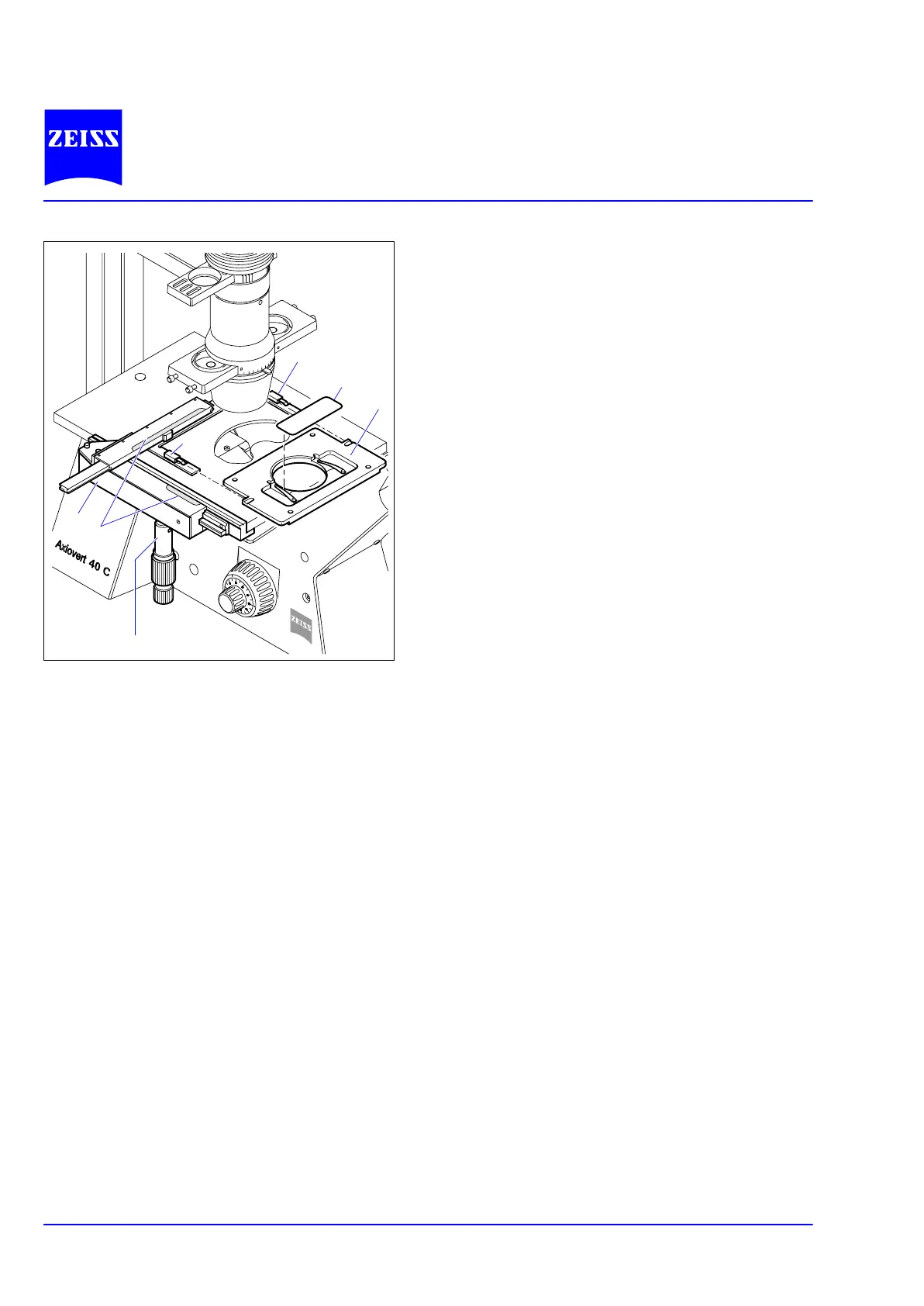

Fig. 2Ć25 Working with attachable
object traverser M
