Z8
®
CPU
User Manual
UM001604-0108 Address Space
11
Currently, three out of the possible sixteen Z8 ERF Banks have been implemented. ERF
Bank 0, also known as the Z8
®
Standard Register File, has all 256 bytes defined, as dis-
played in Figure 7 on page 12. Only Working Register Group 0 (register addresses
00h to
0Fh) has been defined for ERF Bank C and ERF Bank F (see Table 4 on page 12). All
other working register groups in ERF Banks C and F, as well as the remaining thirteen
ERF Banks, are not implemented. All are reserved for future use.
*Note: The fully implemented register file is shown. Refer to the specific product specification for ac-
tual register file architecture implemented.

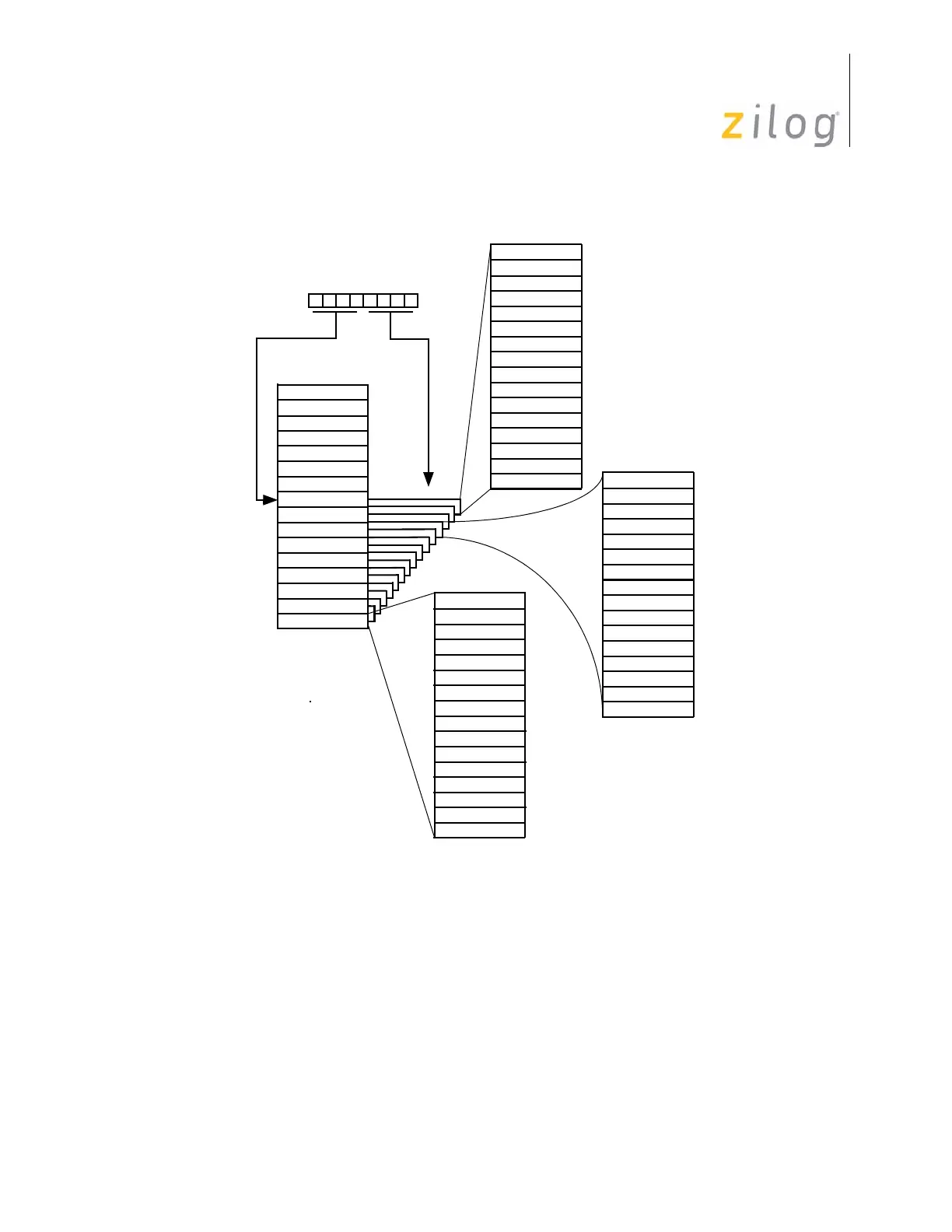

Figure 6. Expanded Register File Architecture
Z8 Register File
(F) 0F WDTMR
Expanded Register
FF
0F
7F
F0
00
Expanded Register File
Bank (F)
(F) 0E Reserved
(F) 0D Reserved
(F) 0C Reserved
(F) 0B SMR
(F) 0A Reserved
(F) 09 Reserved
(F) 08 Reserved
(F) 07 Reserved
(F) 06 Reserved
(F) 05 Reserved
(F) 04 Reserved
(F) 03 Reserved
(F) 0E Reserved
(F) 02 Reserved
(F) 01 Reserved
(F) 00 PCON
(0) 0F GPR
Expanded Register File
Bank (0)
(0) 0E GPR
(0) 0D GPR
(0) 0C GPR
(0) 0B GPR
(0) 0A GPR
(0) 09 GPR
(0) 08 GPR
(0) 07 GPR
(0) 06 GPR
(0) 05 GPR
(0) 04 GPR
(0) 03 P3
(0) 02 P2
(0) 01 P1
(0) 00 P0
(C) 0F Reserved
Expanded Register File
Bank (C)
(C) 0E Reserved
(C) 0D Reserved
(C) 0C Reserved
(C) 0B Reserved
(C) 0A Reserved
(C) 09 Reserved
(C) 08 Reserved
(C) 07 Reserved
(C) 06 Reserved
(C) 05 Reserved
(C) 04 Reserved
(C) 03 Reserved
(C) 02 SCON
(C) 01 RXBUF
(C) 00 SCOMP
D7 D6 D5 D4 D3 D2 D1 D0
Working Register
Group Pointer
Group Pointer
Register Pointer
To Next Page
