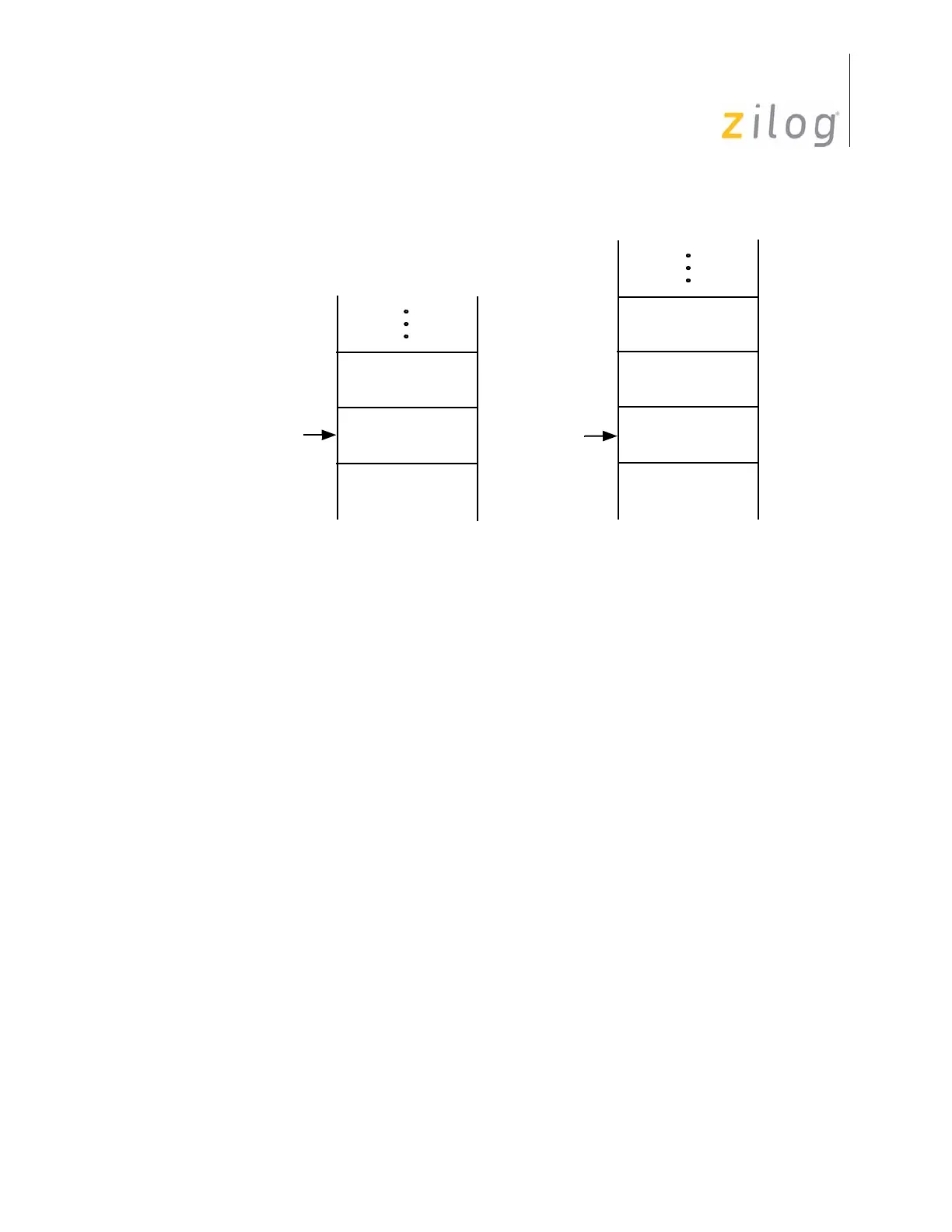

Figure 11. Stack Operations
PCL
Top of Stack
Stack Contents
PCH
PCL
PCH
FLAGS
After an
Interrupt Cycle
Stack Contents
After a Call
Instruction
Top of Stack
