Zimmer SD Edition PhySys - Device Structure of the Vaco device

PhySys Edition SD Service Manual
Rev. B
20.08.2013
Page 30/52
Service Manual PhySysSD_RevB_20.08.2013.do
c
Link Description
1 Actuator with board
2 Mainboard
3 Holder for speaker
4 Speaker
5 Isolation foil Mainboard
6 Display
7 Touch pin
8 Front part of housing
9 Adjusting knob
10 Adapter part for actuator
11 Power supply connector vaco
12 Rubber feet
13 Power inlet element
14 Lower part of housing
15 Power supply board
16 Connector for Vaco user acble
17 Isolation foil Transformer
18 Mains switch
19 Rear part of housing

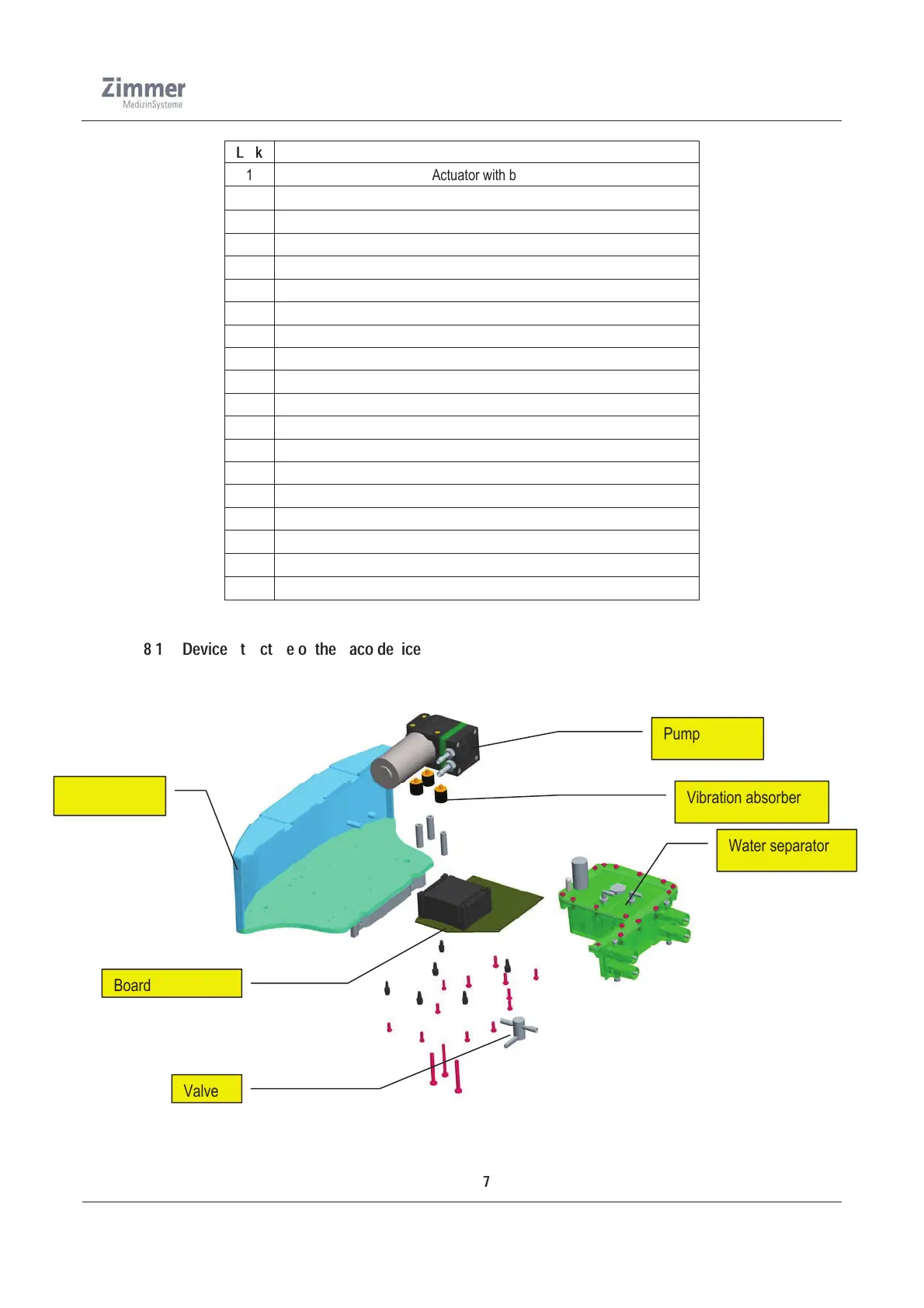

8.1.2. Device Structure of the Vaco device
Figure 16
Figure 17
Vaco housing
Pump
Water separator
Board
Valve
Vibration absorber
