2gig Technologies EDGE Installation Guide

Installation Guide for the 2GIG EDGE Security Panel
24

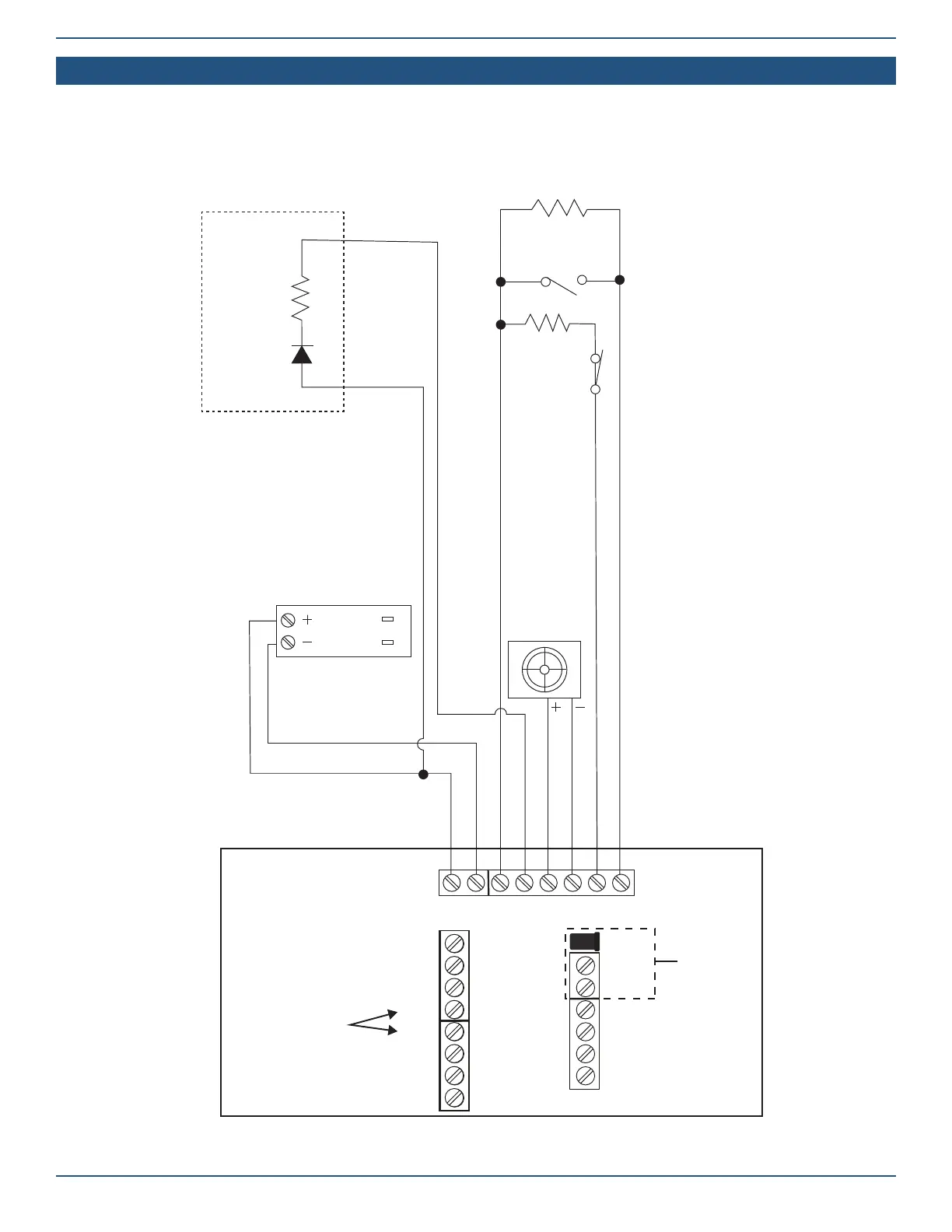

Control Panel Wiring Diagram
The following diagram shows the Control Panel wiring.
Control Panel Wiring Diagram
ALL output
voltages are
Class 2
Power provided only
when the Control
Panel’s power supply
is connected to an
AC power source
Control
Panel
OBSERVE POLARITY
when connecting the
Power Supply
Plug-in 14 VDC
1.7 AMP
Switching
Power Supply
Piezo
Siren
Supervised
Bell Output
14 VDC
@ 200 mA
Maximum
2.2 K +/- %5
1/4 W
Normally
Closed
Contact
2.2 K +/- %5 1/4 W
Normally Closed
Contact
UL NOTE: Wiring for
all wired sensors and
annunciators must
use UL Listed low
voltage Class 2 or
better grade wire.
Sensor and display
voltages must comply
with Class 2 low
voltage requirements
systems shall be
installed in
accordance with ANSI/
NFPA 72, CSA C22.1,
CAN/ULC S302 and
CAN/ULC S301.
Hardware loops can be
programmed as normally
open or normally closed
End-of-Line
Resistors
are
optional
on
hardwire
loops
Open
Collector
Output
250 mA
@ 16 VDC
Maximum
Example
hookup
showing
an armed
LED. The
Open Colector
output can be
programmed
to activate
during various
conditions.
1 K
LED
9 10 3 4 5 6 7 8
GND
AUX+
GND
Bell +
Bell –
Zone 1
Zone 2
GND
DC IN
DC IN +
DC IN –
OCL 1
OCL 2
TX
RX
POWER IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
