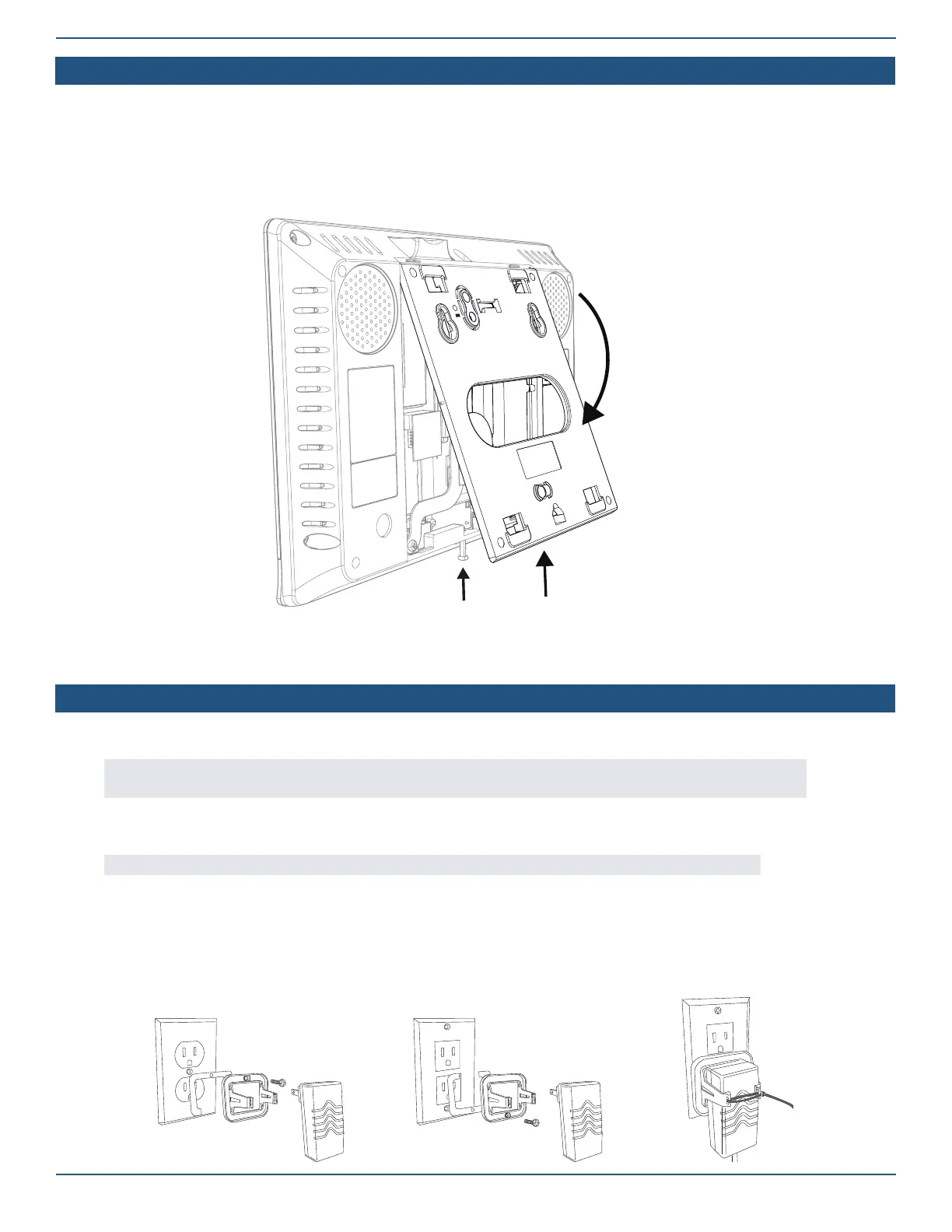

Hang the 2GIG EDGE Panel
To hang the 2GIG EDGE Panel on the mounting plate:
1. Ensure all installed wiring is securely fastened.
2. Place the upper lip of the back of the panel chassis over the back top of the backplate, then ip the 2GIG Edge Panel downward.
3. Push the 2GIG EDGE Panel over the mounting bracket until it clicks into place.
4. Secure the lower set screw.
Install Retaining Wall Bracket and Connect the AC Power Supply
After you have completed all of the required system wiring and connected the battery backup, install the wall bracket and connect the AC power
supply to the wall receptacle.
NOTE: For compliance with ANSI/NFPA 70: National Electric Code in the United States, you must install the power supply
retaining bracket.
To install the wall bracket and connect the AC power supply:
1. Locate a wall outlet for the plug-in power supply. Do NOT connect the power supply to the receptacle.
IMPORTANT: When selecting a wall outlet, never connect the plug-in power supply to a switch-controlled outlet.
2. Peel the adhesive backing off the power supply’s retaining wall bracket and attach it to the receptacle.
3. Secure the bracket to the wall using the fastening screw.
4. Spread the ears of the retaining bracket apart. Then plug the power supply into the outlet.
STANDARD
DECORA
STANDARD
DECORA
Standard Style – Center Fastener Decora Style – Center Fastener
Secure with Fastener
Back Plate
Attached to Wall
To Next Page
