Panel Programming – image sensors
Program up to 10 Image Sensors.
Navigate to Installer Toolbox menu, tap Panel Programming
and then tap Image Sensors .
Image Sensor

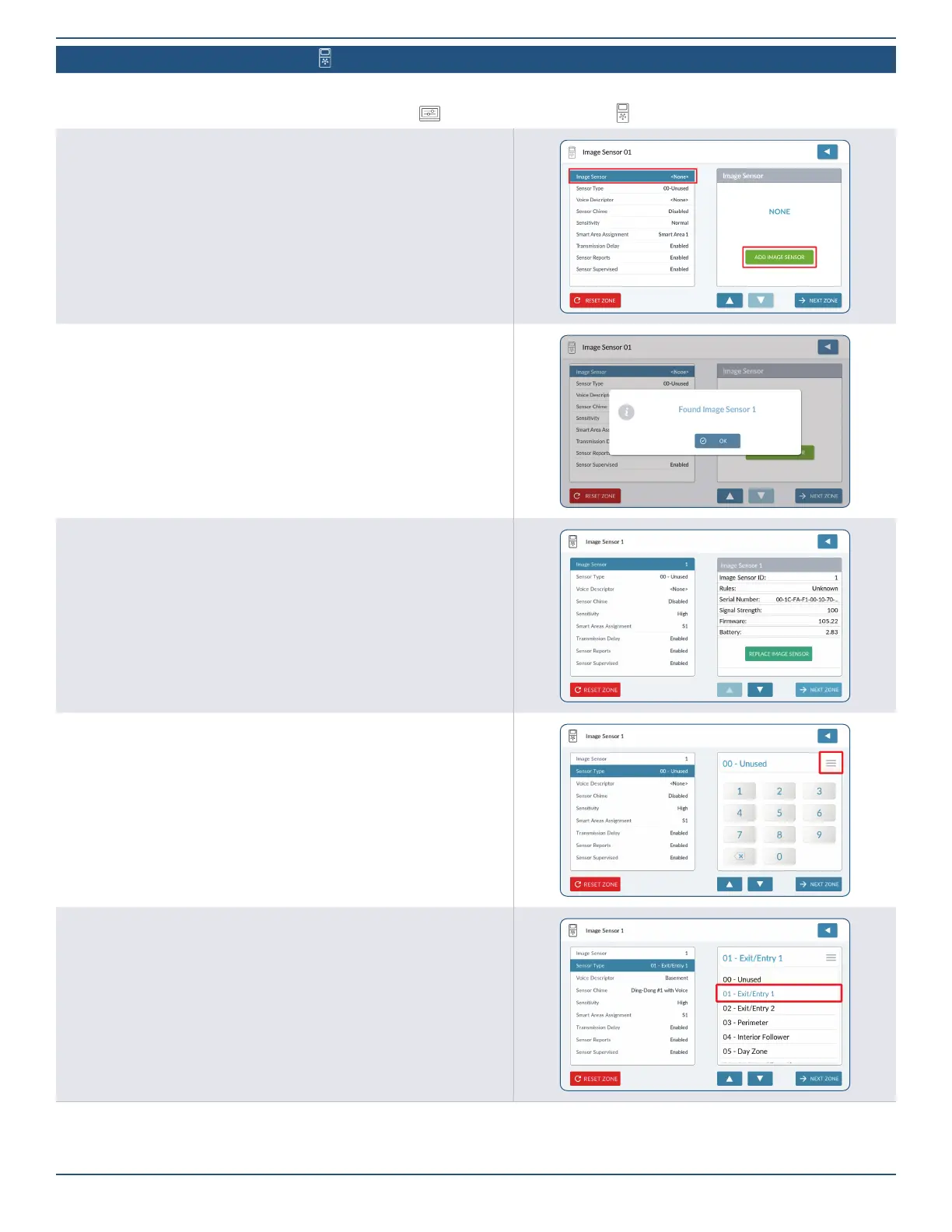

To add an Image Sensor:
1. Tap Image Sensor [##] found within the left column.
2. Tap ADD IMAGE SENSOR. The panel will listen for the Image Sensor.
3. Place the Image Sensor in Learn Mode (refer to the Image Sensor manual for
Learn Mode instructions).
4. The panel will prompt when an Image Sensor is found.
5. Tap OK.
6. Image Sensor details are displayed.
7. Tap to move to the next option.
After Image Sensors have been added to the 2GIG EDGE Panel in Wireless
Zones programming, the Image Sensor details will be displayed in Image
Sensor settings. The Image Sensor will be displayed with the following:
¾ Zone number
¾ MAC address of Image Sensor
¾ Firmware Version
¾ Battery level
¾ Signal Strength
¾ Rules
¾ Sensitivity
Sensor Type
1. Tap
≡
to access the list of Sensor Types (if you know the two-digit code for the
sensor type, use the numeric keypad).
2. Tap the type of sensor.
3. Tap to move to the next option.
