450 User Manual Troubleshooting the ZPrinter 350/450

10/31/12

7.2 Problems Powering Up

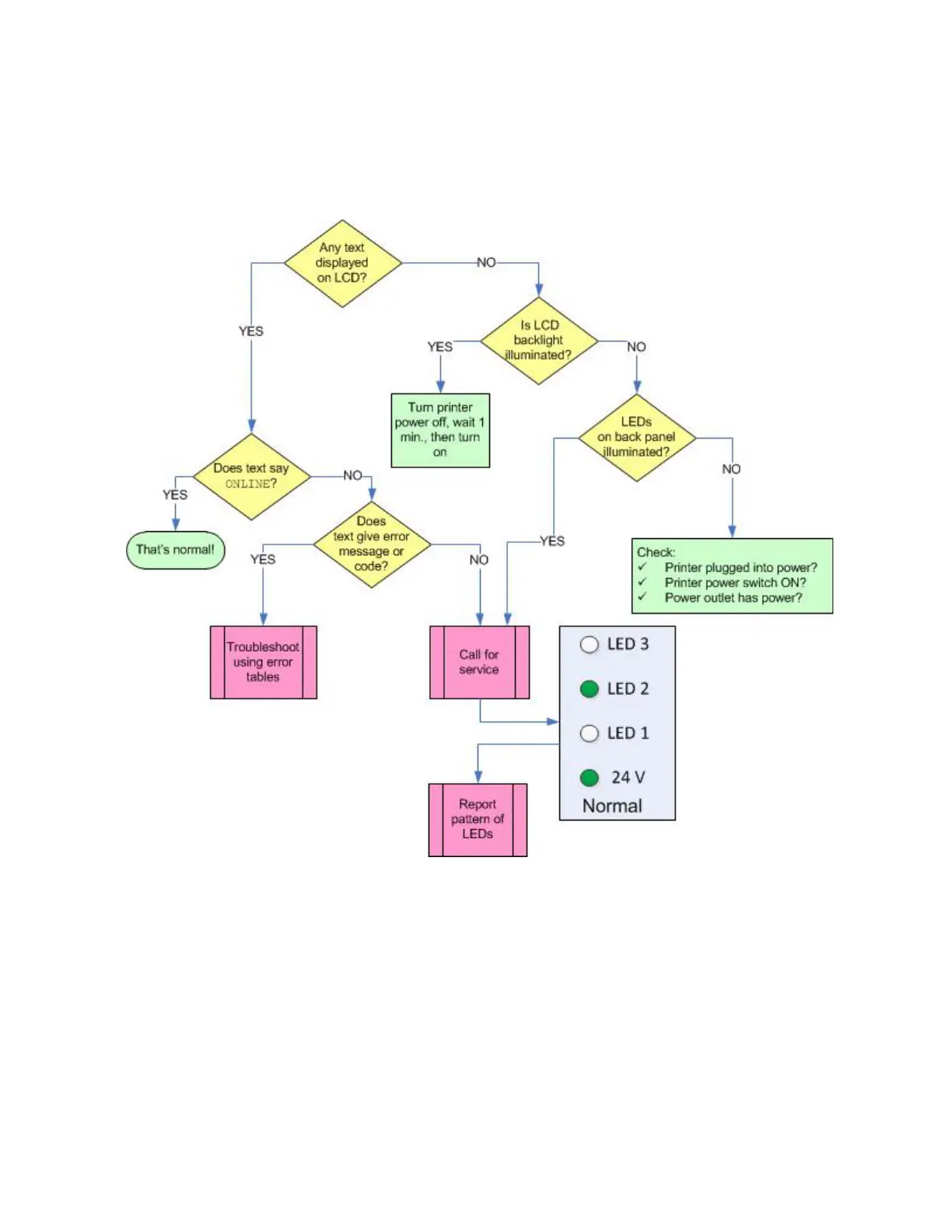

If your printer does not power up normally, use the flowchart below to isolate the problem.
