3D Systems ZPrinter 350 - Troubleshoot Fast Axis

ZPrinter
®
350 / ZPrinter
®
450 User Manual Troubleshooting the ZPrinter 350/450
3dscentral.3dsystems.com 64 All Rights Reserved
10/31/12
7.4.1 Troubleshoot Fast Axis

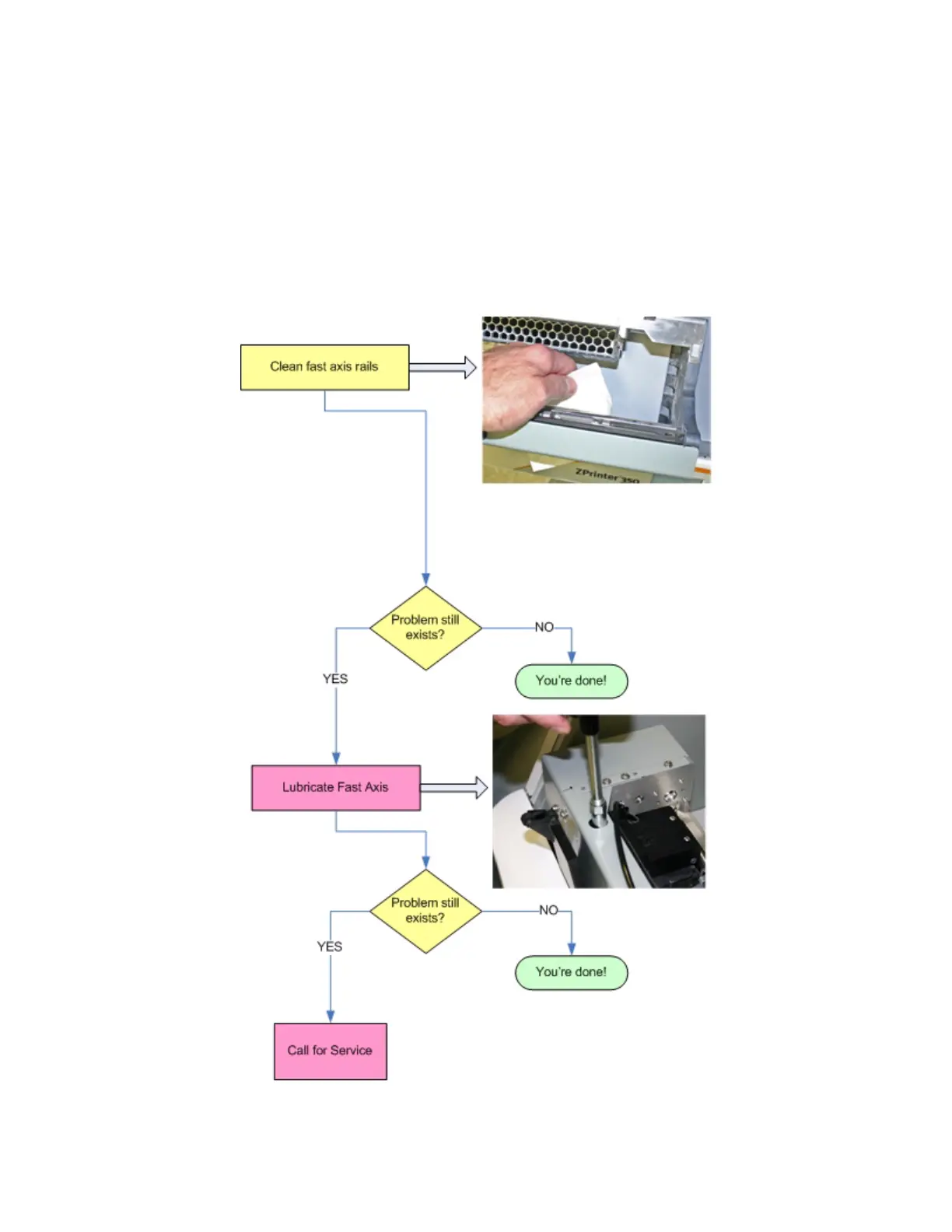

If your printer is reporting Fast Axis errors, follow the flowchart below.
How to do it
To perform the cleaning and lubrication called for in the flowchart, see:
• Section 3.3, ’Clean The Fast Axis Rails and Carriage’
• Section 6.2, ’Fast Axis Bearing Lubrication’
