6.4.3 Connect DFS 700 and PC with the USB-cable
(1) Unscrew the two service covers on the DFS 700, see Figure 3-1.
(2) Insert the DFS power cable (Figure 6-8 Item 4) from the Power Supply Unit box (Figure
6-8 Item 1) into the right-hand plug (Figure 6-8
Item 5).
(3) Connect the mains cable (Figure 6-8 Item. 3) to the mains.
(4) Switch on the DFS 700 at the main switch (Figure 6-8 Item 6).
After switching the DFS 700 on it performs a short self-check followed by the display
of two horizontal bars "- -" as confirmation. In case of issues the display will show one
of the codes explained in Section 9.4.
(5) Insert the rectangular plug of the USB-cable (Figure 6-8 Item 7) into the USB-socket
(Figure 6-8 Item 2).
(6) Insert the USB-cable with the flat plug into the USB-interface - the USB-connection is
now made and the PC recognises the DFS 700.

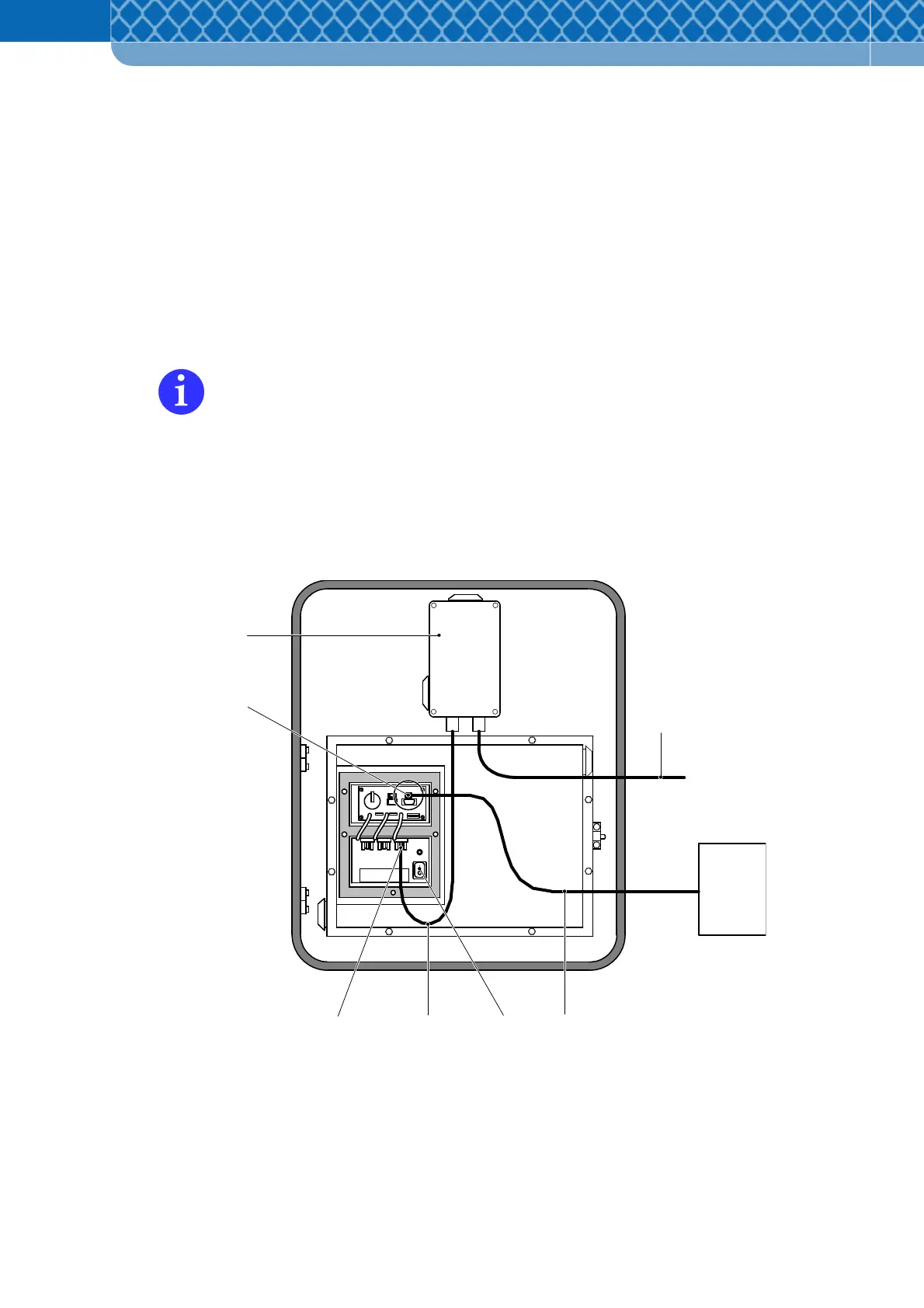

Figure 6-8 USB-connection to the DFS 700
PC
1
2
3
4
5 6 7
Power
