3M DFS 700

Technical Information DFS 700 / 04.2009 6-19
(9) The display parameters can be modified in the “Display” tab. The parameters are
explained below.

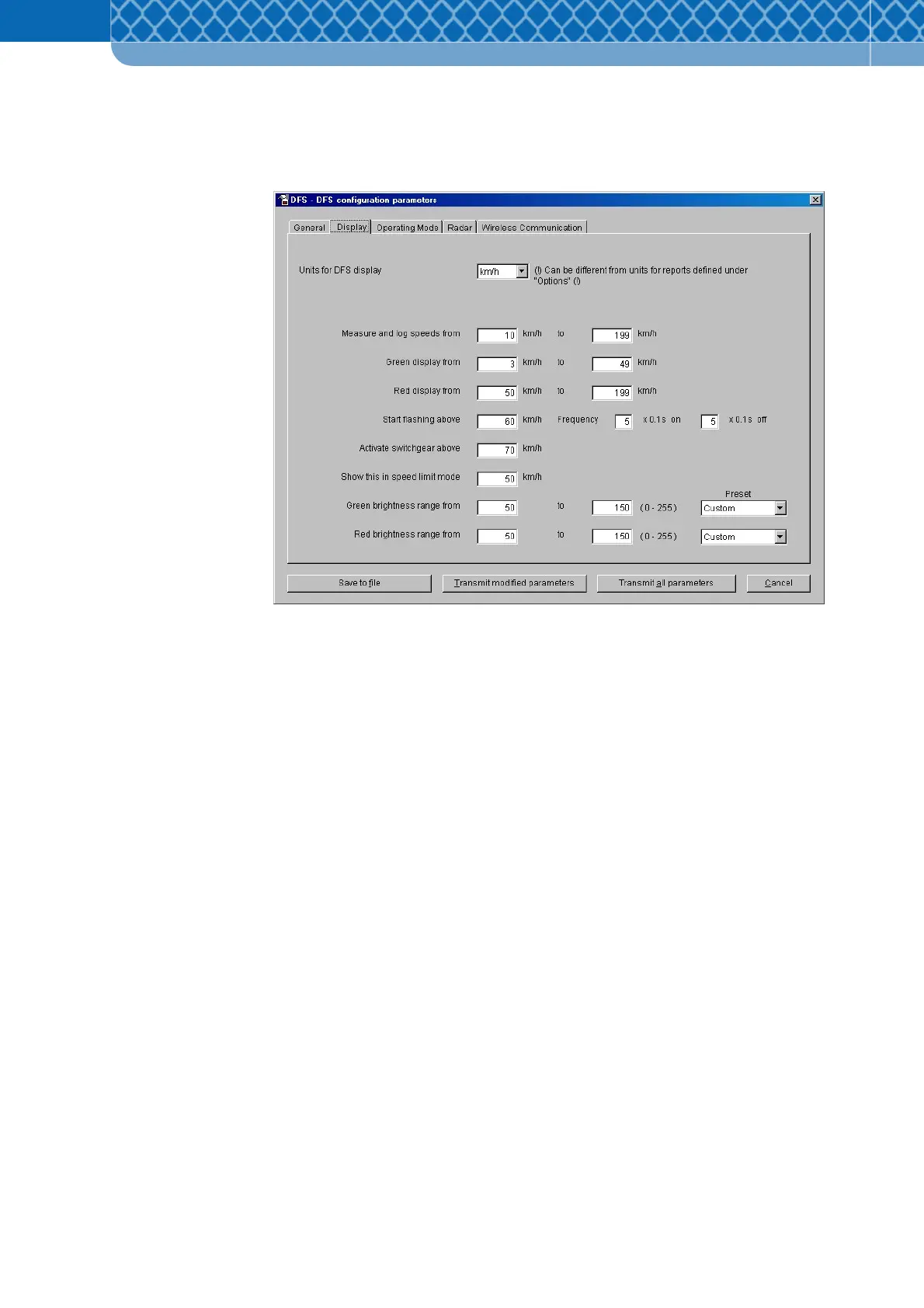

Figure 6-19 Display
• Units for DFS display
Unit setting for displaying the speed in km/h (kilometres per hour) or mph (miles per
hour). May be different from the setting for data analysis in the program options.
• Measure and log speeds from - to
Enter the speeds between which the DFS 700 measures and records. Speeds above
and below the set range are not measured and not stored.
• Display Green / Red from - to
Enter the speeds between which the digital displays in green / red. Both colour ranges
are fully independent of each other. If the ranges overlap, green and red are displayed
simultaneously and produce orange. In ranges for which no colour has been set, the
display remains off.
