User’s Manual
Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
Associated VAP: The name of a VAP (Virtual Access Point) that the client is associated with.
ESSID: The Extended Service Set ID which the client is associated with.
MAC Address: The MAC address of associated clients.
RSSI: The Received Signal Sensitivity Index of respective client’s association.
Packet Error Ratio: Indication of the associated client’s service quality to see if packets are not
received.
Idle Time: Time period that the associated client is inactive for; the time unit is in seconds.
Up time: Time period that the client is associated for; the time unit is in seconds.

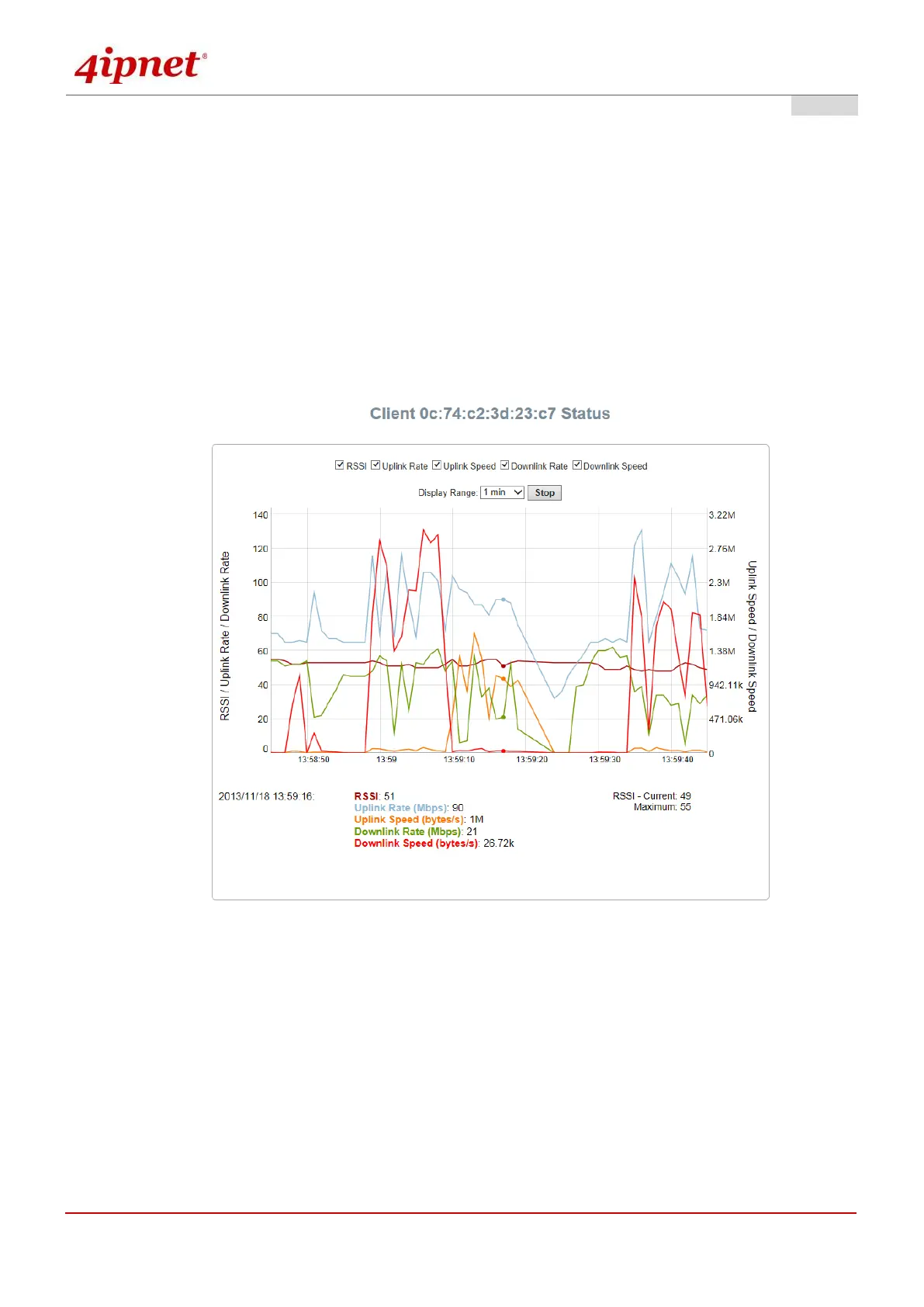

Real Time: A real time plot of each associated client’s traffic information including Packets In/Out,
Traffic In/Out in Kb, RSSI, Uplink/Downlink Rates, and etc.
The Time Axis is configurable with the following options: 1 minute, 2 minutes, 5 minutes, or 10
minutes. Left click on the mouse to zoom in on desired regions. Double click to return the plot to its
original scale.
Disconnect: Upon clicking Kick, the client will be disconnected from the system.
