3. Connect your AP to your Network
The following instructions depict how to establish the wireless coverage of your network. The AP will
connect to the network through its LAN port and provide wireless access to your network.
After having prepared the AP’s hardware for configuration, set the TCP/IP settings of administrator’s
computer to have a static IP Address of 192.168.1.10 and Subnet Mask of 255.255.255.0.
Step 1: Configuring the AP’s System Information
Enter the AP’s default IP Address (192.168.1.1) into the URL of a web browser.
Log in using Username: admin and Password: admin.
The Web Management Interface will appear as shown below.

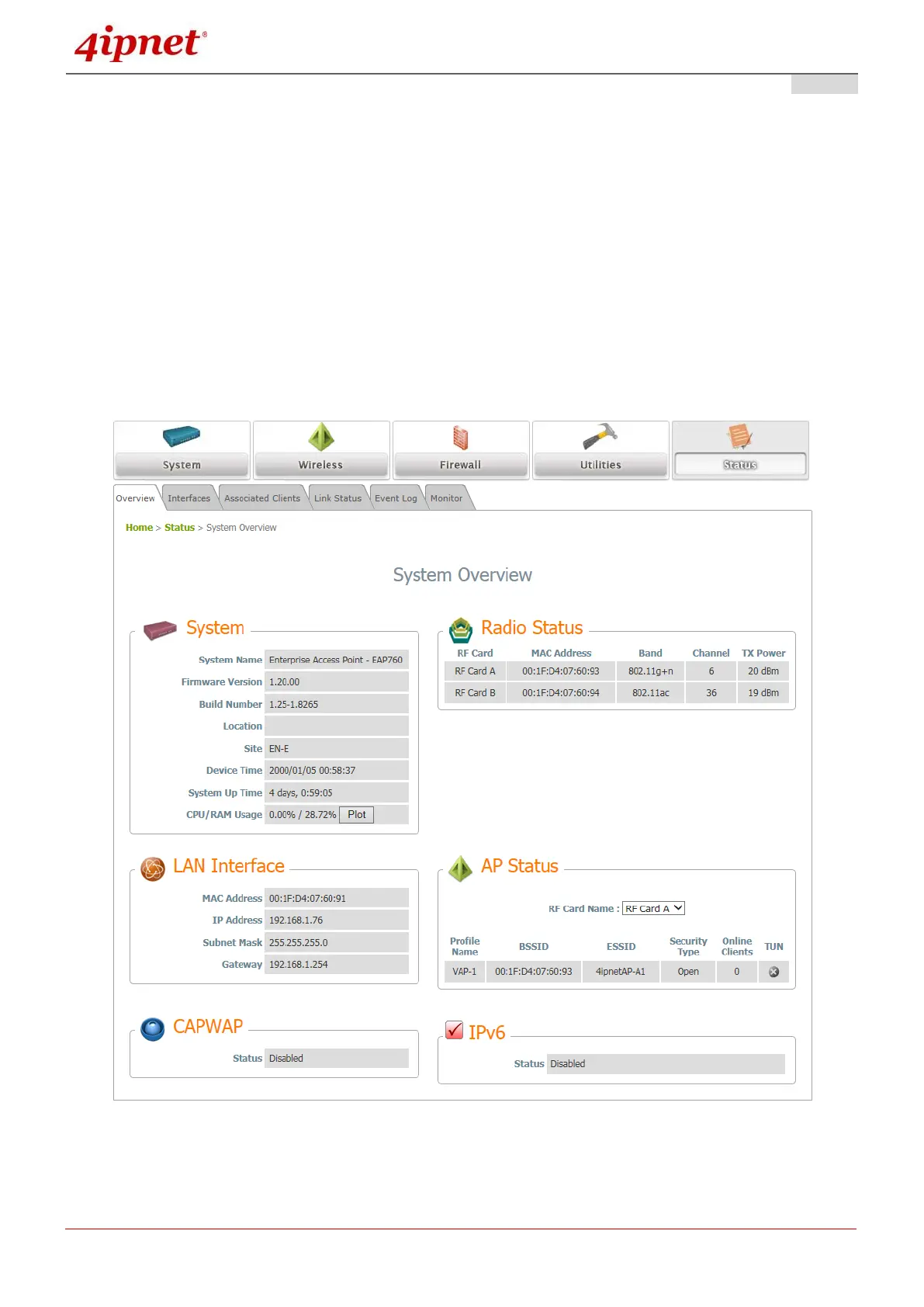

Web Management Interface Main Page (System Overview)
From here, click on the System icon to get to the following page. On this Page you can make entries
to the Name, Description, and Location fields as well as set the device’s time.
