8.5.4 Monitor

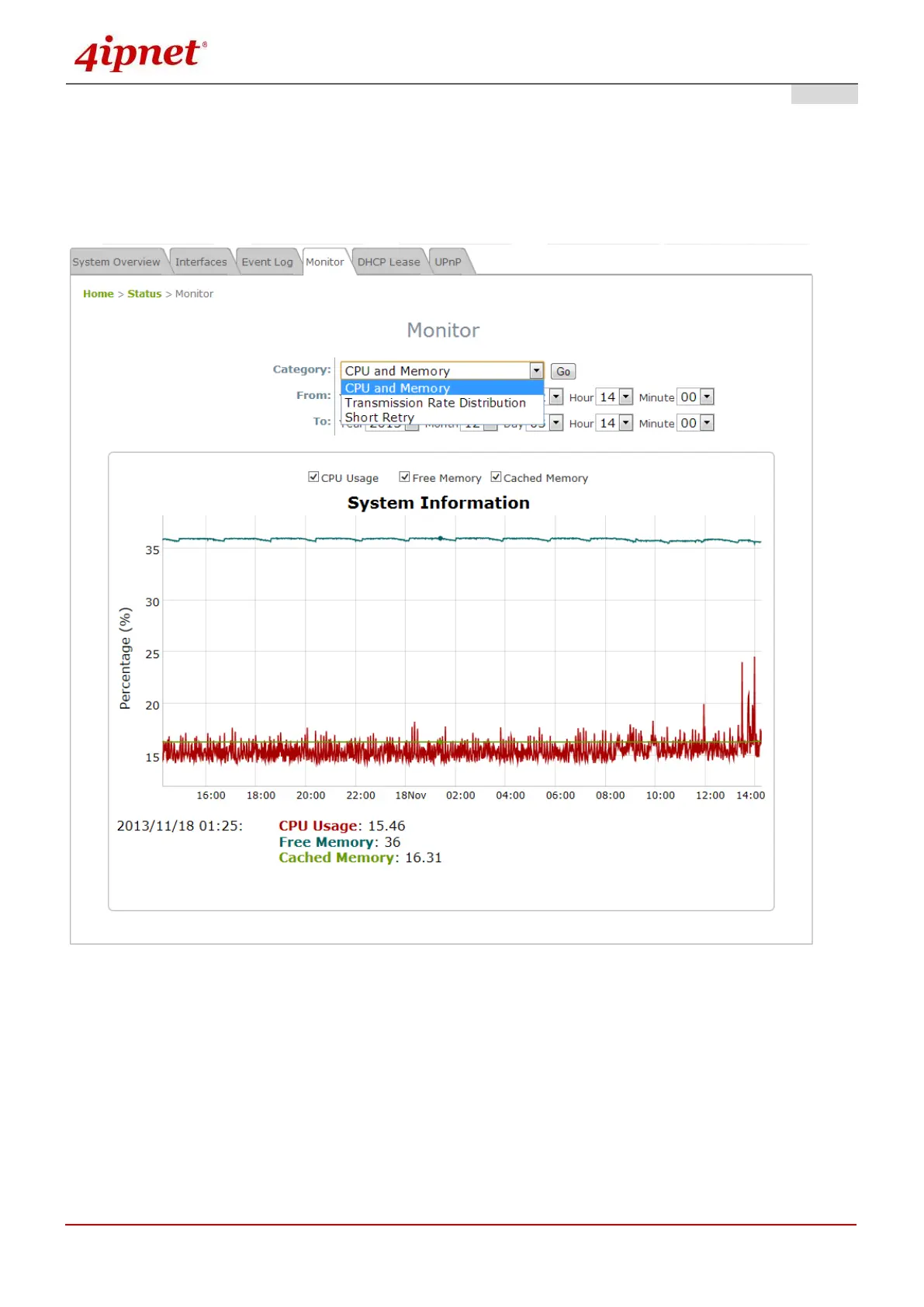

For a quick overview on the AP’s performance, the ‘Monitor’ feature displays an RRD graph recording CPU
utilization, memory usage, associated station numbers, TX rate distribution, airtime utilization, and short
retries.
The begin and end time for the RRD graph can be selected for filtering data. Left click on the mouse to
zoom in on desired regions. Double click to return the plot to its original scale.
