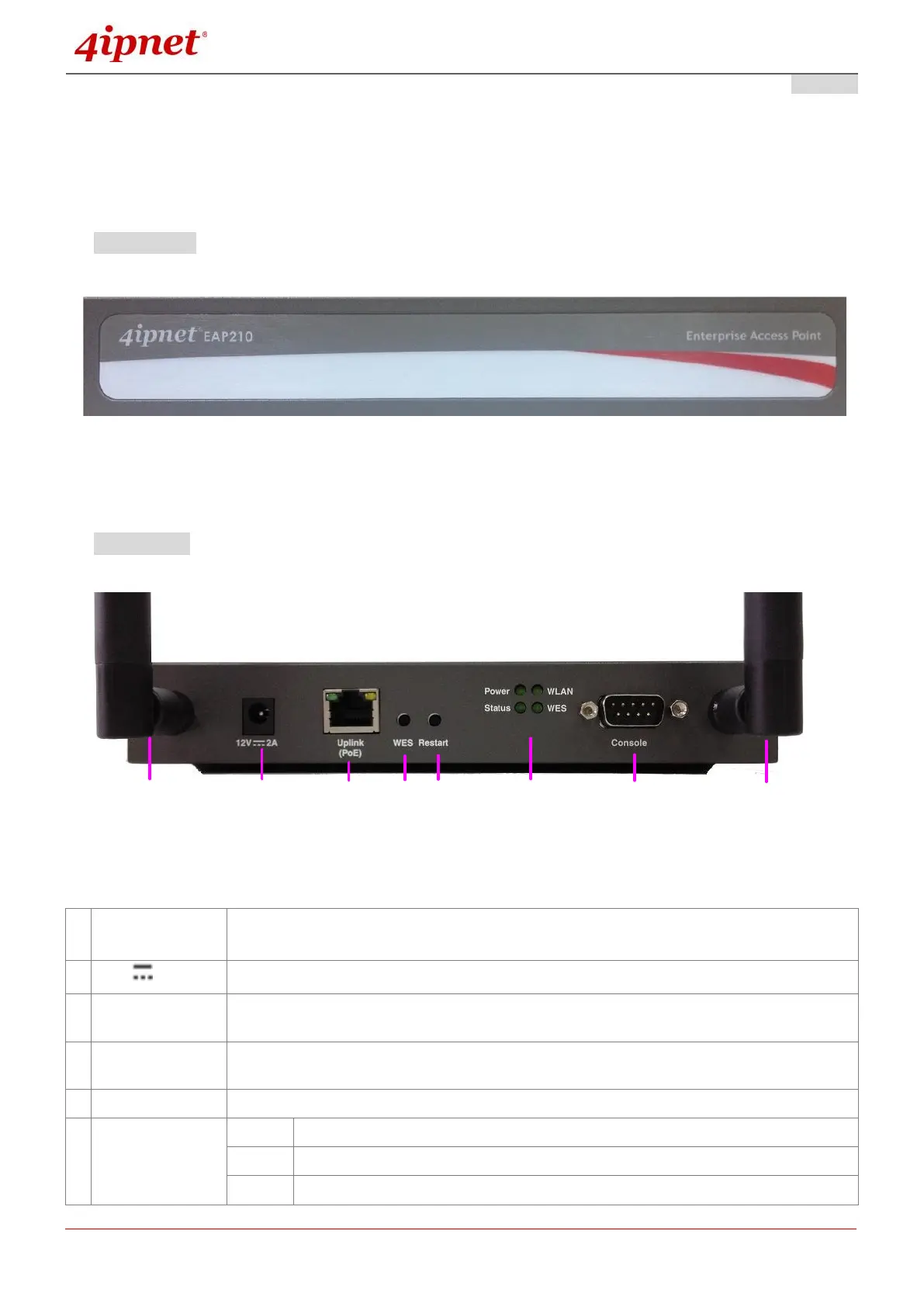

2.2 Hardware Description
This section depicts the hardware information including all panel description.
EAP210
Front Panel
EAP210 Front Panel
Rear Panel
1 (1) 2 3
7
1 (2)4
5
6
EAP210 Rear Panel
1
Antenna
Connector
Reverse SMA connectors for attaching antennas.
1 (1) is the primary antenna connector and 1 (2) is the secondary.
2
12V 2A
Power Socket for the power adaptor.
3
Uplink Port
The port for uplink connection to another gateway or device. PoE (802.3af/at) is
supported.
4
WES Button
WDS Easy Setup. Press the button to build up a WDS link with another peer. 4 WDS
links can be set up.
5
Restart Button
Press to restart the system
6
LED Indicators
Power
On indicates power on.
Status
On indicates the system is ready.
WLAN
On indicates wireless network interface is ready for service.
