User’s Manual
Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
8.2.4 Site Survey
The system is able to scan and display all surrounding available access points (APs). The administrator can
then select an AP to be associated with the system on this page.
Site Survey is a useful tool to provide information on the surrounding wireless environment; available APs are
shown with their respective SSID, MAC Address, Channel, Rate setting, Signal reading and Security type.
The administrator can click Setup or Connect to configure the wireless connection according to the mentioned
readings.

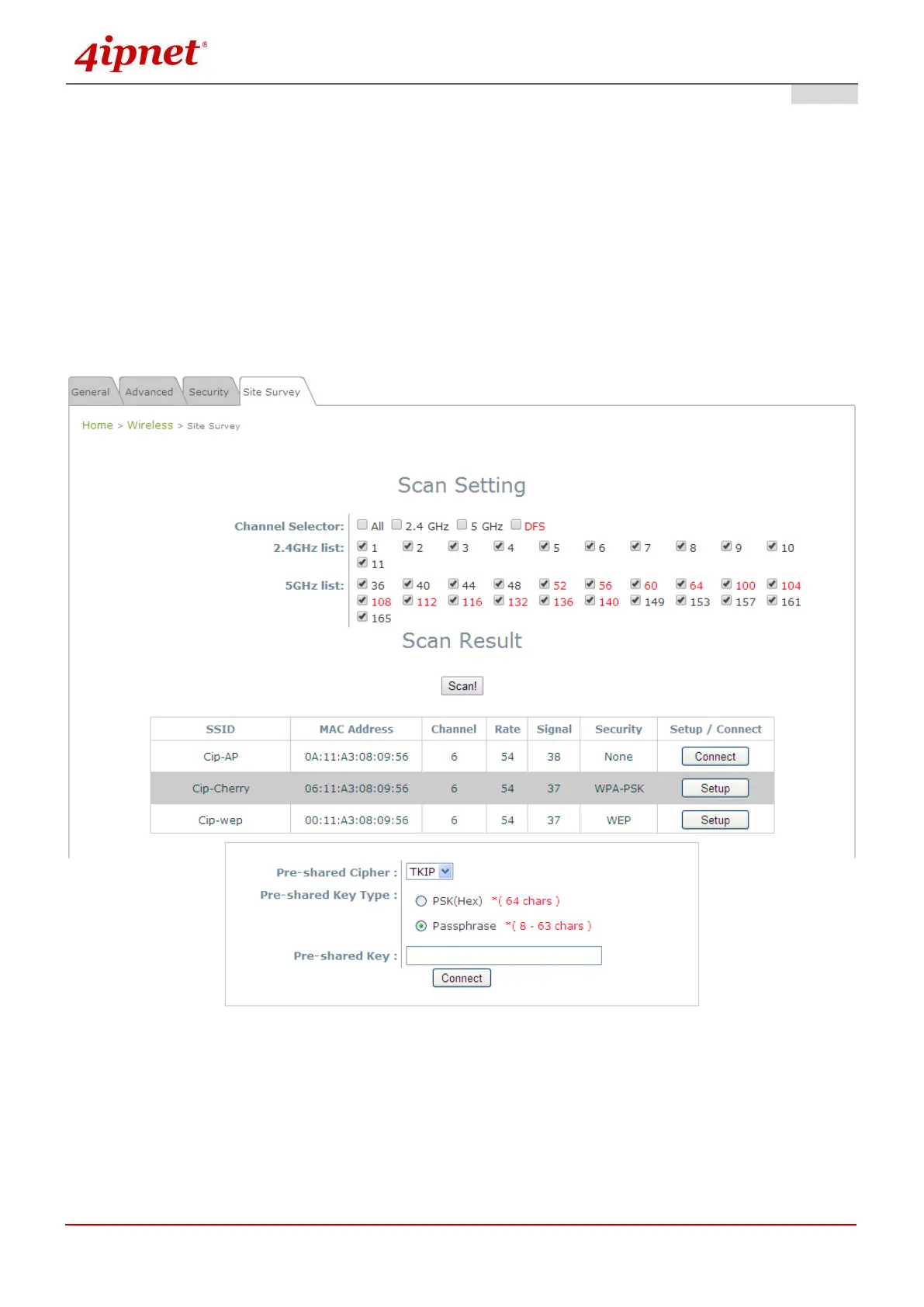

AP Scan Result (example)
SSID: The SSID (Service Set ID) of the AP found in the system’s coverage area.
MAC Address: The MAC address of the respective AP.
Channel: The channel number currently used by the respective AP.
