Nodes: Connecting Juggler Systems
When an Input or Output is assigned to a Juggler video connector, it adopts the EDID of that
connector.
3D Passive to Active Conversion

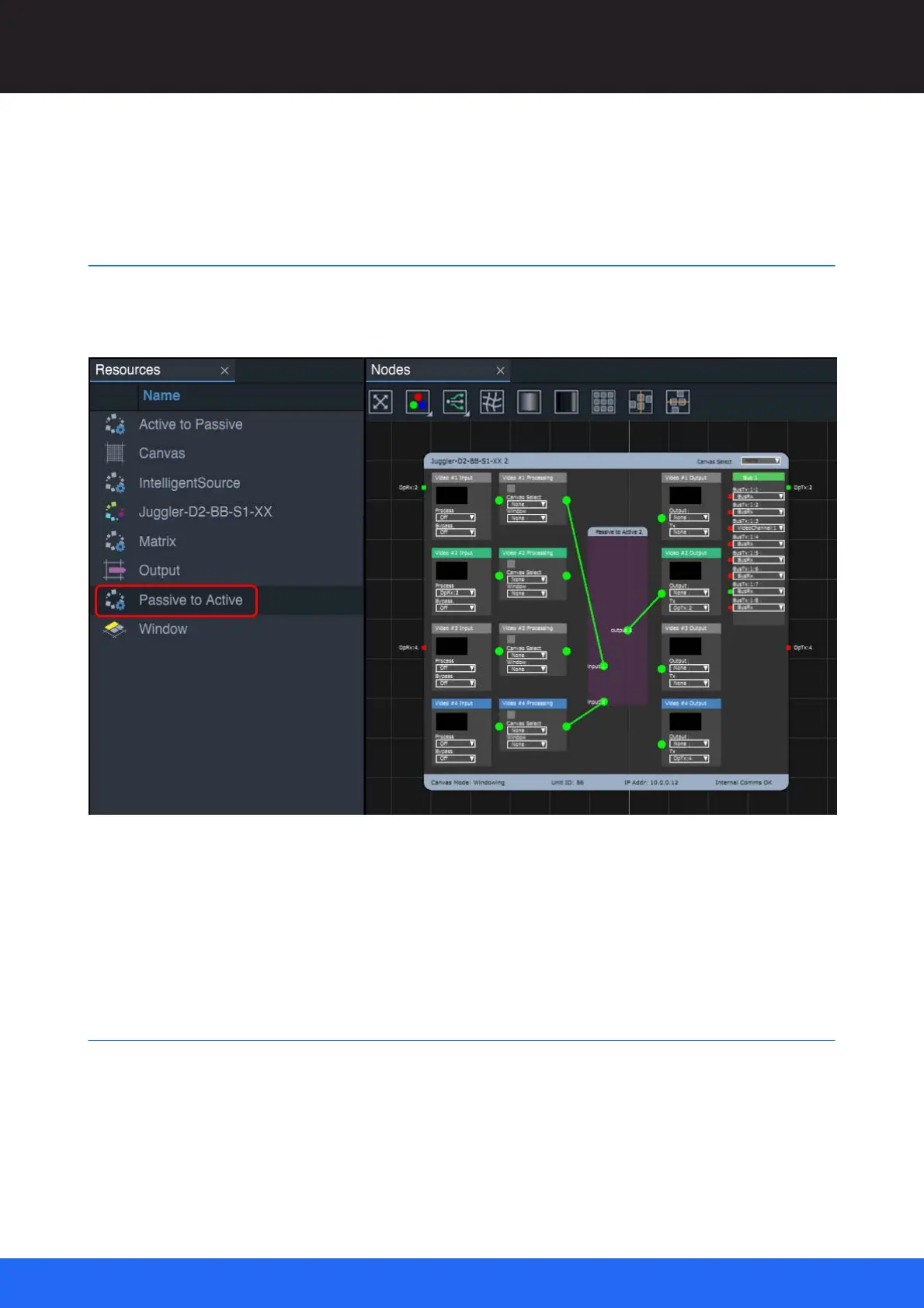

To convert a 3D passive input to 3D active, drag the Passive to Active Node from the Resources panel
onto the required Juggler:
The resource is added to the Juggler in the Project tree, from where it can also be renamed or
deleted. Connect the appropriate processing input pins and the required video output pin.
This node has the effect of directing two active frame channels to a single interleaved active 3D
channel with an associated 3D sync output signal.
3D Active to Passive Conversion
To convert a 3D active input to 3D passive, drag the Active to Passive Node from the Resources panel
onto the required Juggler:
