This checkbox is ‘push-to-show’, and will temporarily cause the output device to flash red and then
green.

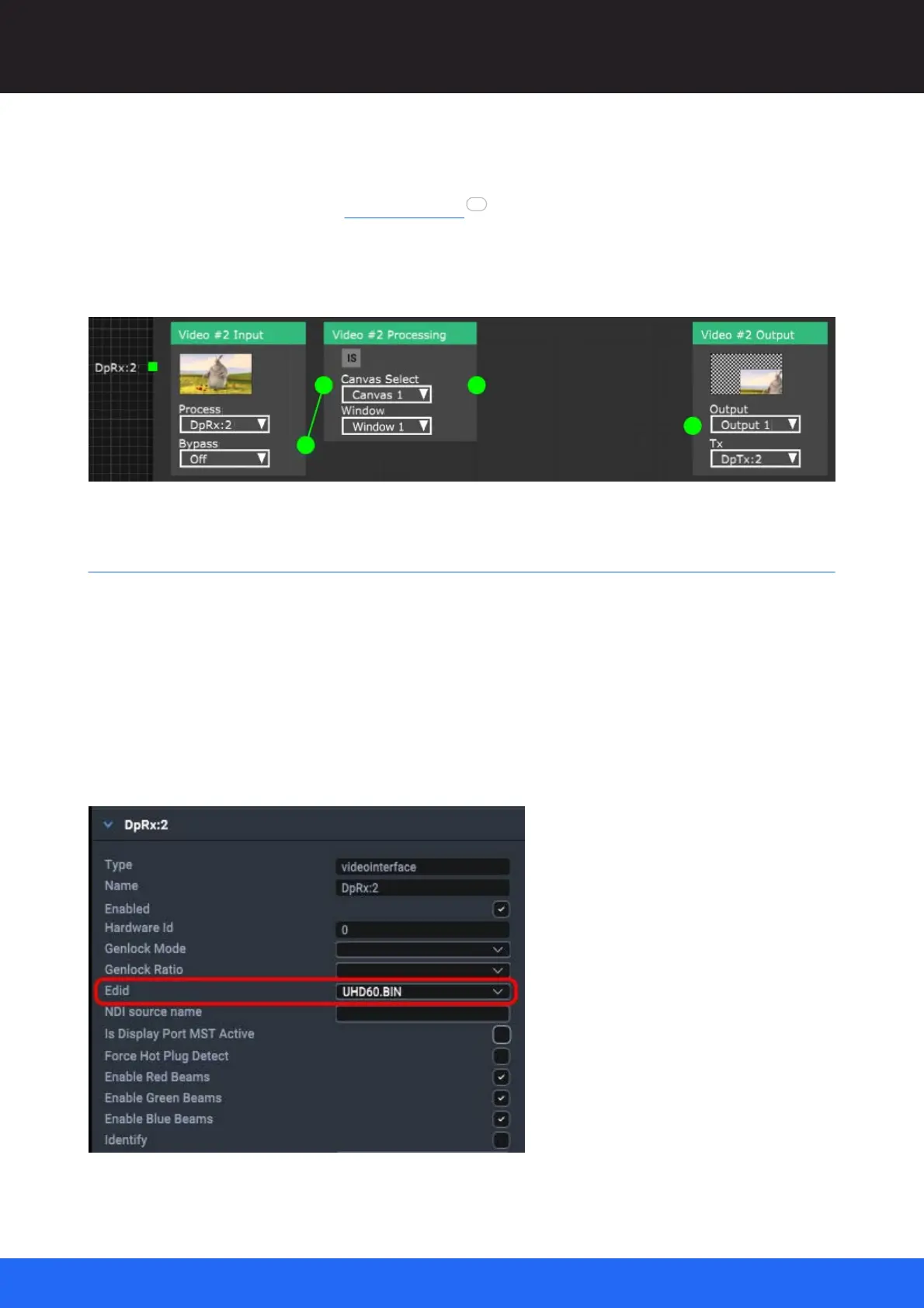

Now assign the video channel to a Canvas Window in the Video Processing block. The selector list
is populated by the addition of Windows in the Canvas assembly panel. Canvas windows can be
positioned anywhere in the Canvas, so what you see on the output display will require this Window to
be positioned somewhere over the selected Canvas Output for this video channel, as here:
EDID Spoofing
Juggler supports spoofing of EDIDs onto DisplayPort and HDMI inputs and outputs via the 7thSense
Compere software.
Each Juggler comes with a list of standard EDIDs. Additional EDIDs can be loaded into the Juggler
Module(s) via the Compere interface.
For each Juggler output in the Nodes assembly panel (described ‘AVout#’ per Juggler) select the
appropriate EDID from The Properties panel > edid list:
