M512-3 Juggler : User Guide

Display Configuration: Canvas Setup

A Canvas in a Juggler system comprises all available pixels in a Juggler system as a whole. Within

this, Outputs to the resolution of available devices are positioned. Depending on the firmware type for

your Juggler, direct one-to-one feeds can be made to these Outputs, or to Windows as areas

anywhere in the Canvas, even across output boundaries. Which type of Juggler you have –

Warp/Blend or Windowing – is defined in its factory build (you can see which, in Juggler > Properties,

under ATOM, Capabilities).

The following description is for Windowing Jugglers.

Canvas, Canvas Outputs and Canvas Windows

The Canvas, the Outputs on it, and Windows in them are all laid out in the Canvas assembly panel,

simply dragged there from the Resources panel. Each of these will be connected by Compere into the

Juggler system, using the Nodes assembly panel. As each element is dragged in, it is added to the

Projects panel, its properties become available, including how the element is named.

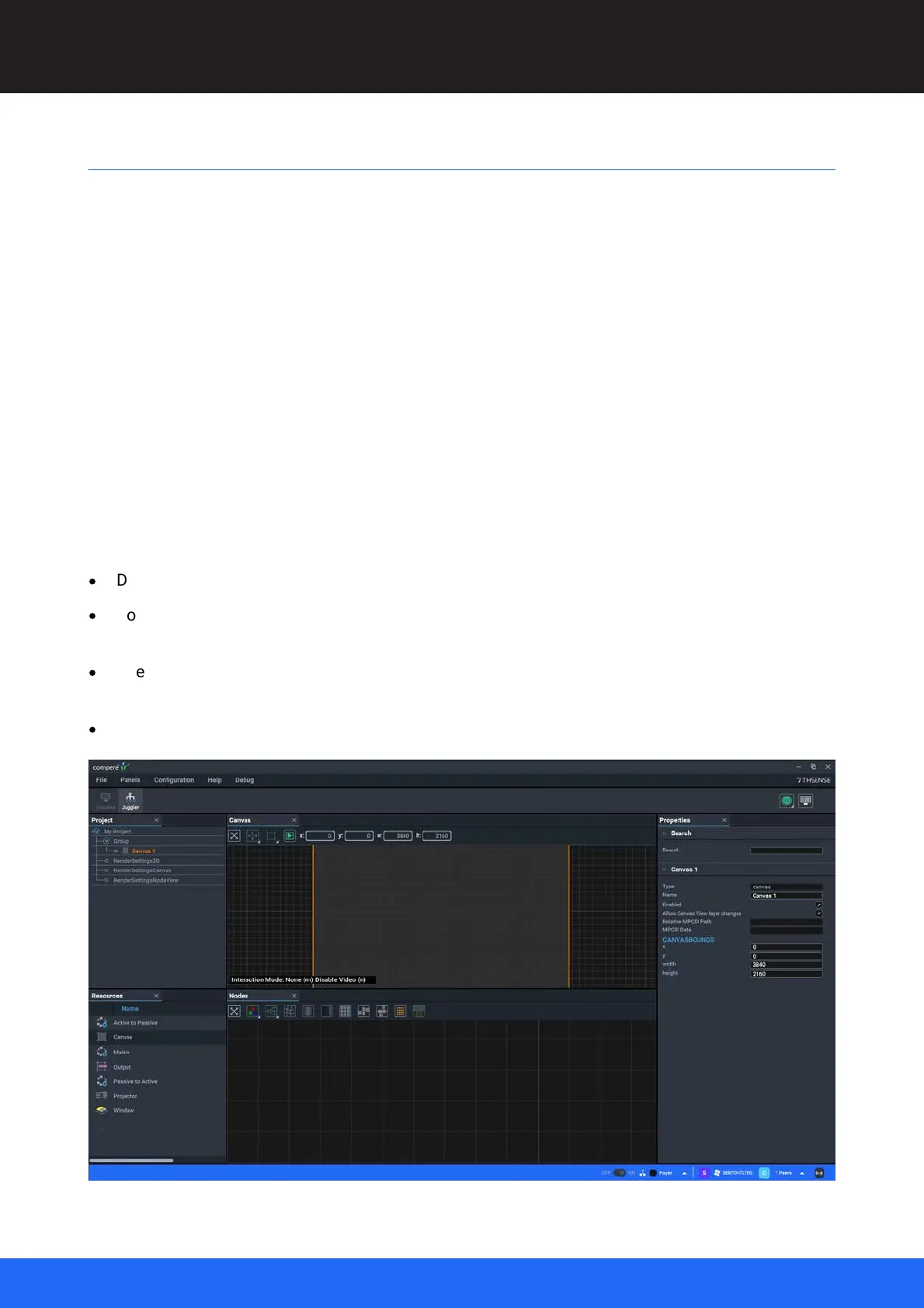

Drag a canvas from the Resources panel into the Canvas assembly panel.

You will now have the grey overall canvas maximised to full view in the panel. Since it is selected,

it will have an orange bounding box. The initial default dimensions are 3840 × 2160 (4K).

The Project panel will now contain a branch for this canvas, and the Properties panel is populated

for the canvas.

You may only need one canvas.
