M512-3 Juggler : User Guide © 2021 7thSense

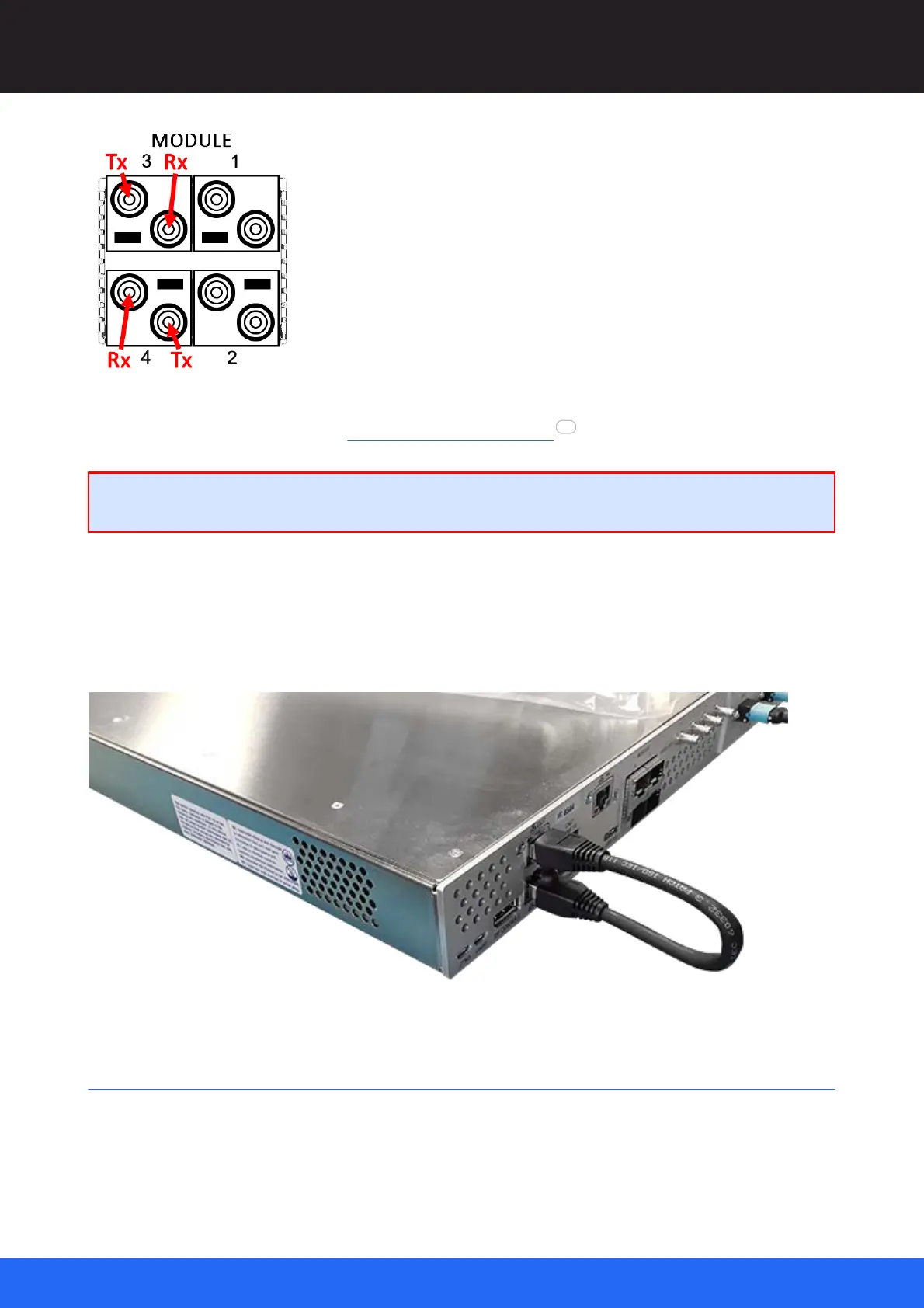

Rear Panel Connections
The same orientation is true for fibre-optic modules, but these are keyed. If using the 4-lane ‘half’-bus
option to daisy-chain Jugglers, see Connect a Juggler Data Bus : ‘Half bus’.
Important! Only SFP modules approved by 7thSense should be fitted to the Juggler unit, fitting non-
approved SFP modules may cause damage to the Juggler or prevent the unit operating.
Loop cable (every Juggler)
This is a necessary connection, to be kept as short as possible. A 12 cm, black Ethernet cable is
provided for this with every Juggler. It must not be disconnected.
Input and Output Options
In a multi-Juggler system with a data bus, any input of any Juggler can be sent to the bus and taken
off the bus as an input to any other Juggler. These internal interconnections are done in Compere, the
software user interface. For example, this means that an HDMI input can be sent out elsewhere from
the system via SDI.
