M512-3 Juggler : User Guide
© 2021 7thSense
Display Configuration: Canvas Setup
Create and Recall Canvas Arrangements
How can you quickly rearrange your canvas setup? For many venues, there will be a requirement for a
number of flat-screen scenarios for different times of days or events, or just to reset at the end of a
session. It is, of course, quite possible to create multiple Compere projects, but setting up, closing and
reopening these would be a slow and cumbersome way of managing the total assets of a venue. In
fact we don’t actually need to replace or rebuild everything.
Presets are designed to capture the arrangements and settings for components in the same project.
When recalled, dimensions and locations etc. of existing canvas objects will be set again to those of
the saved preset.
Example of use
1: Assemble all canvas elements

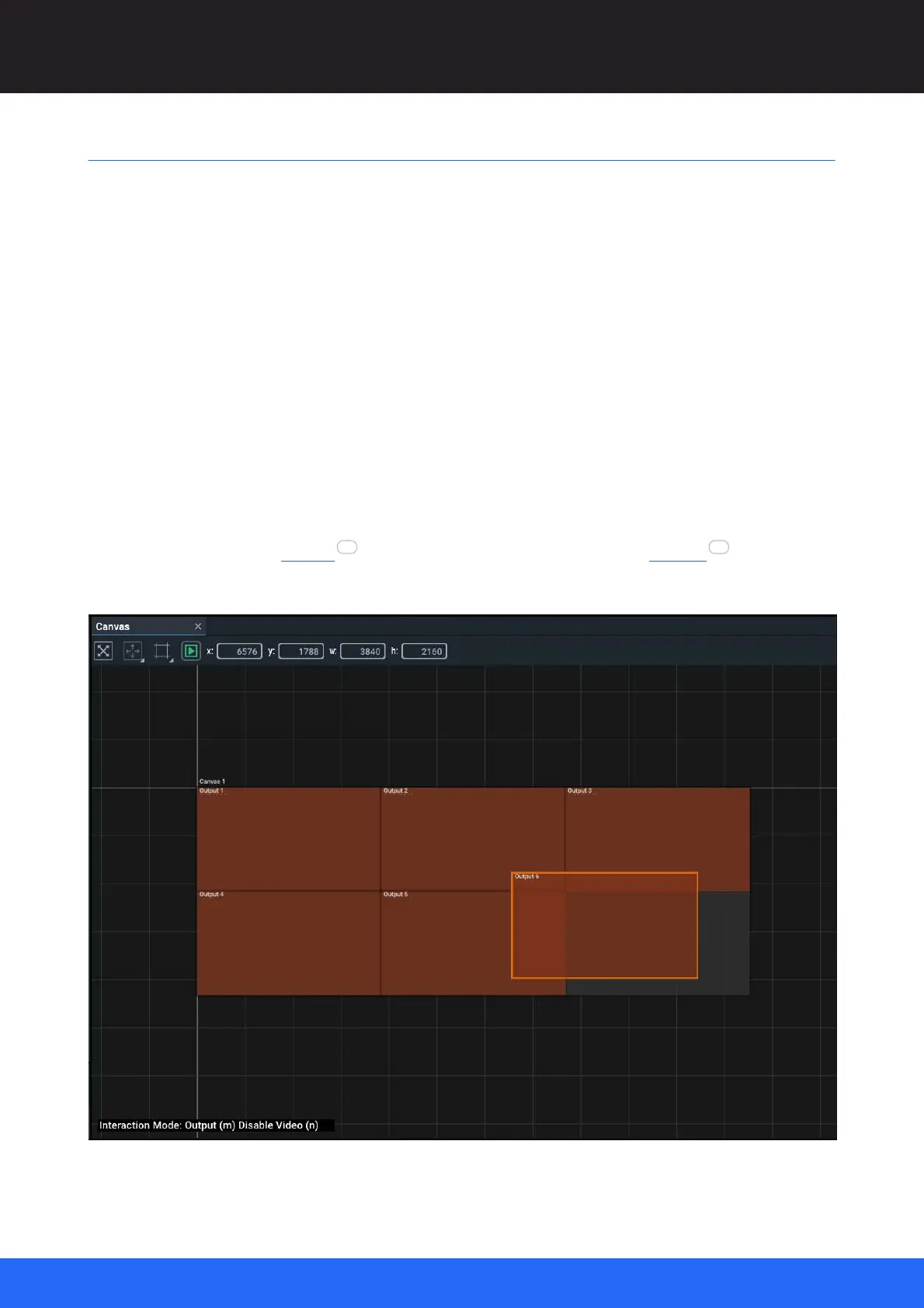

In this example we create a display with 6 × UHD outputs, and video channels running to 15 canvas
windows. So to begin, the canvas is added to the project, followed by the outputs , sized and
positioned as described above:
