M512-3 Juggler : User Guide © 2021 7thSense

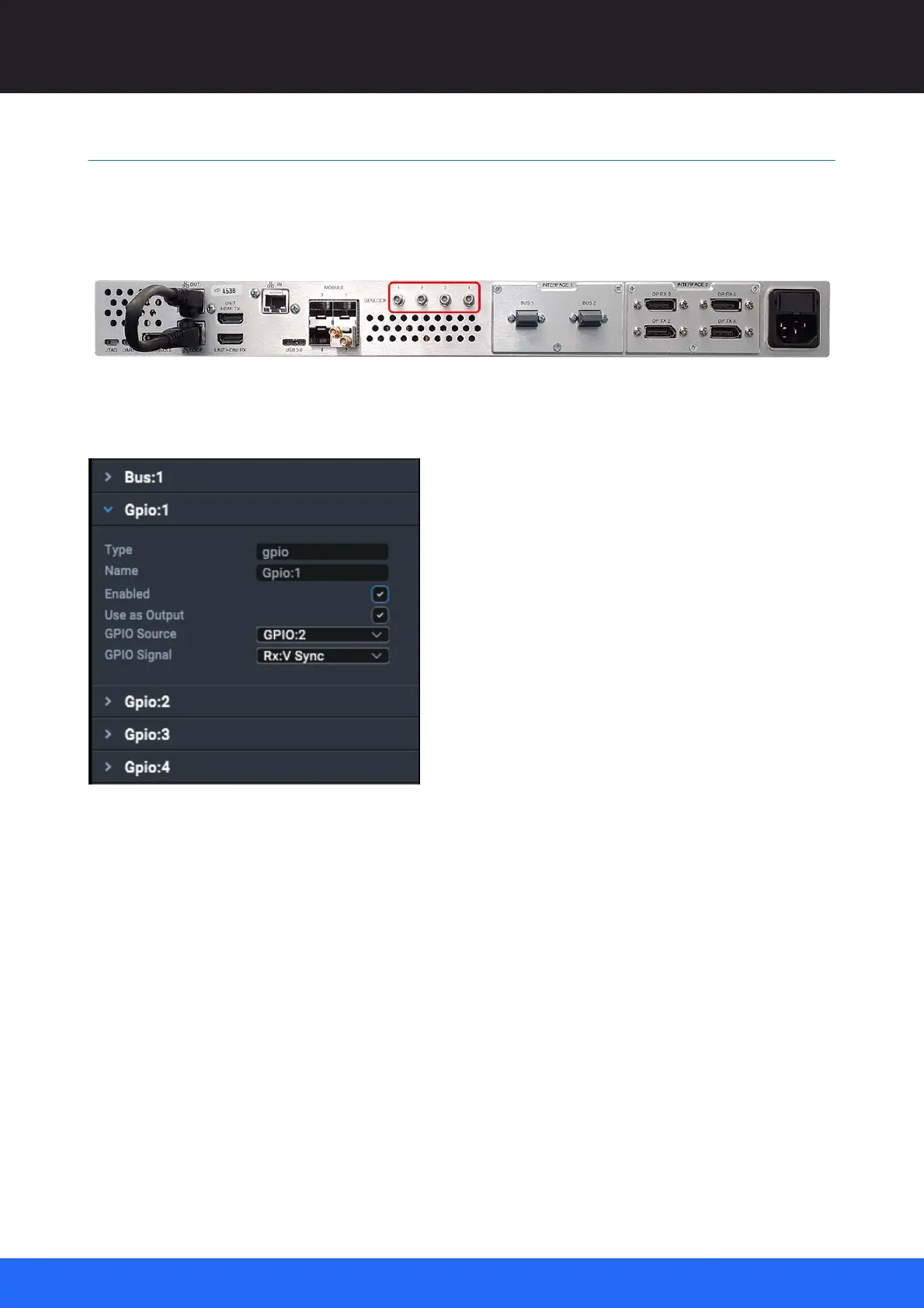

Rear Panel Connections
GPIO HD-BNC Ports
Each Juggler back panel has four HD-BNC connnectors. These can be independently designated as
inputs, or outputs that can be assigned to the Juggler’s video channels, in the Juggler properties of
Compere.
All Juggler ports are configured independently in Compere. Here is the GPIO section in Juggler
properties:
Name
Identifies the physical GPIO.
Enabled
For GPIO ports to be live, they must be enabled. If you need to disable the port, do that here.
Use as Output
If not an output, an enabled port is assigned to receive a signal from a source.
GPIO Source (when used as an output)
To output a signal requires a source. This could be a video channel media source sync, or
another feed via another GPIO port.
GPIO Signal (when used as an output)
Select an available signal from the selector:
